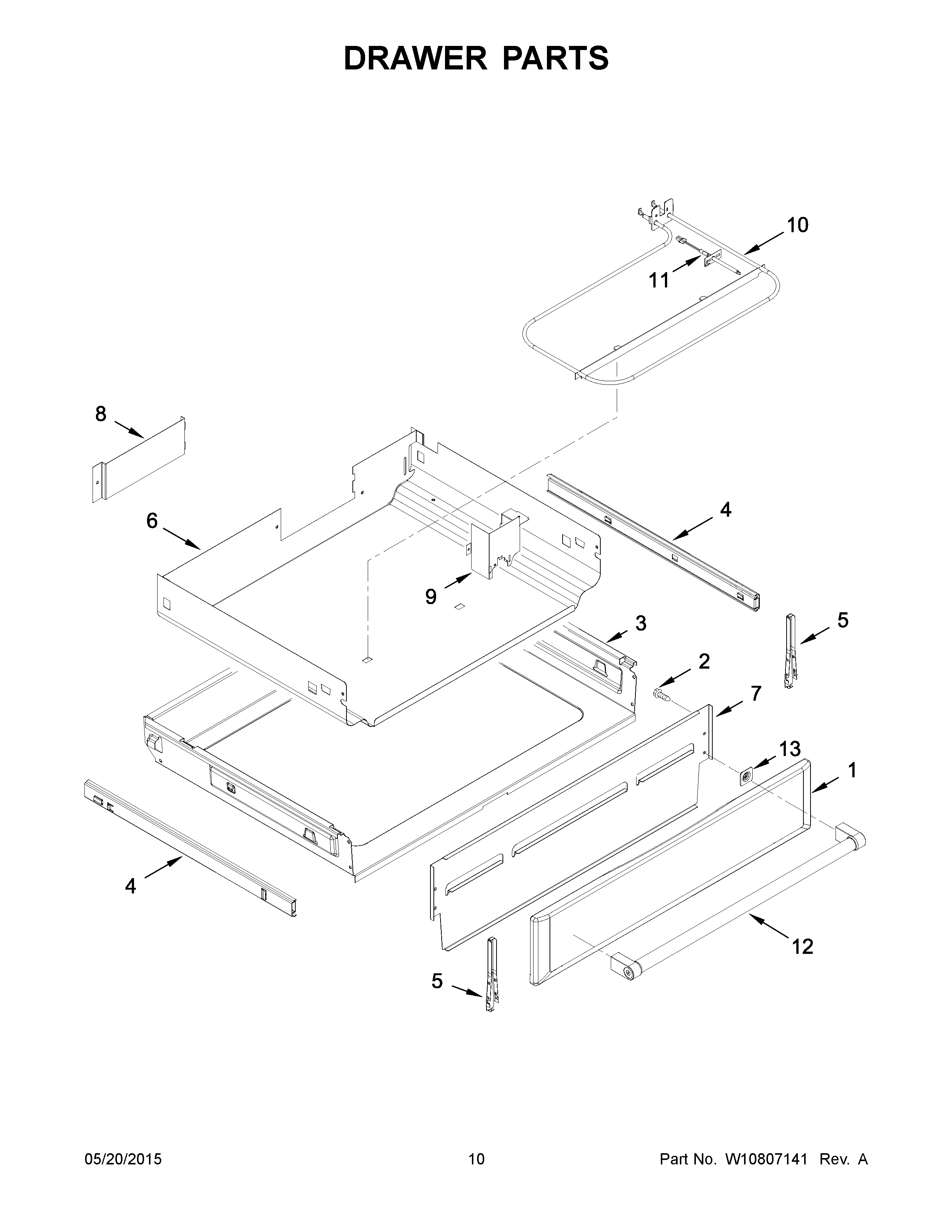

YKFES530ESS0 06 – DRAWER PARTS

YKFES530ESS0 06 – DRAWER PARTS

Written by

in

YKFES530ESS0 06 – DRAWER PARTS

Products

PositionProduct
1W11334144 Whirlpool Drawer Panel
2WP3196557 Whirlpool Screw
3W10813962 Whirlpool Utility Drawer
4AWPW10441805 Whirlpool Slide Drawer
4WPW10441804 Whirlpool Drawer Slide
5WPW10318027 Whirlpool Mounting Bracket
6W10634260 Whirlpool Utility Drawer
7PANEL, INNER DRAWER
8W10325438 Whirlpool Cover Panel
9W10634259 Whirlpool Wire Cover
10WPW10323181 Whirlpool Surface Element
11WPW10131827 Whirlpool Sensor
12W11104399 Whirlpool Door Handle
13SPACER, HANDLE
