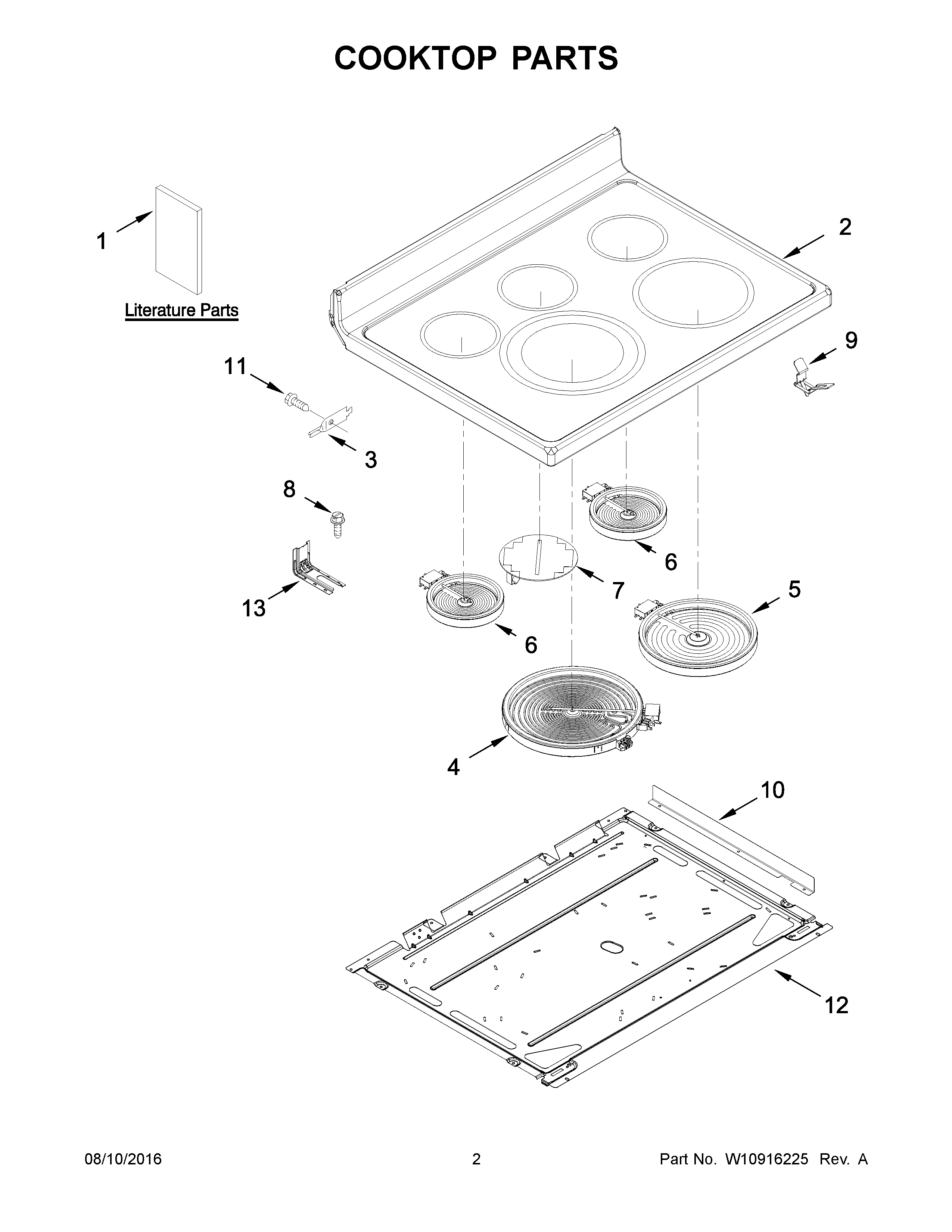

YKFES530ESS1 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11134592 Whirlpool Wire Harness
NI	W10349733 Whirlpool Wire Harness
NI	HARNESS, WIRE (COOKTOP RIGHT)
NI	HARNESS, WIRE (COOKTOP LEFT)
NI	HARNESS, MAIN
NI	W10324946 Whirlpool Wire Harness
1C	INSTALL, INSTRUCTIONS
1	USER, INSTRUCTIONS
1A	QUICK START GUIDE
1B	TECH, SHEET
1D	SAFER COOKING TIPS (ENGLISH
2	W10798166 Whirlpool Cooktop
3	WP3195060 Whirlpool Cooktop Pin
4	WPW10298145 Whirlpool Surface Element
5	WPW10251108 Whirlpool Range Cooktop 3200W Radiant Surface Element
6	ELMNT-SURF
7	W11047668 Whirlpool Surface Element
8	SCREW, ANTI-TIP KIT
9	WPW10225448 Whirlpool Spring Assembly
10	BRACKET, L-BRIDGE
11	3196172 Whirlpool Oven Screw
12	PAN
13	W11447673 Whirlpool Range Tip Anchor
