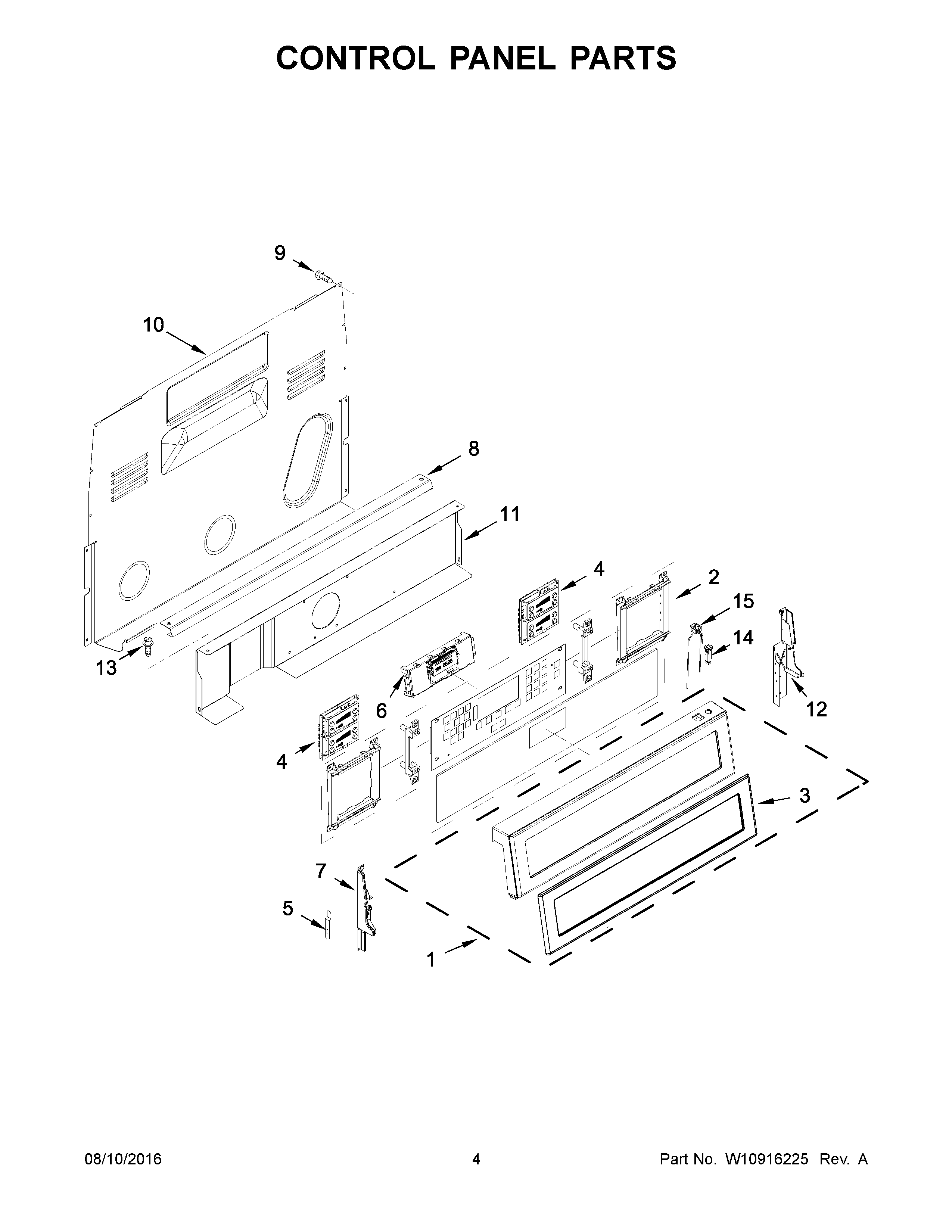

YKFES530ESS1 03 – CONTROL PANEL PARTS

Products

Position	Product
1	CONSOLE (STAINLESS)
2	W11211499 Whirlpool Membrane Switch
3	W11164063 Whirlpool Control Panel
4A	WPW10553762-includeCORE Whirlpool WPW10553762 Refrigerator Electronic Control Board + Core
4	WPW10341243-includeCORE Whirlpool WPW10341243 Washer Electronic Control Board + Core
5	3196200 Whirlpool Clip
6	W11088874-includeCORE Whirlpool W11088874 Refrigerator Electronic Control Board + Core
7	W11404310 Whirlpool Panel Endcap
8	W10525121 Whirlpool Control Bracket
9	SCREW
10	WP8272473 Whirlpool Rear Cover
11	W10134247 Whirlpool Heat Shield
12	W10409003 Whirlpool Endcap Panel
14	WP9757602 Whirlpool Breaker
15	RECEPTACLE (BLACK)
