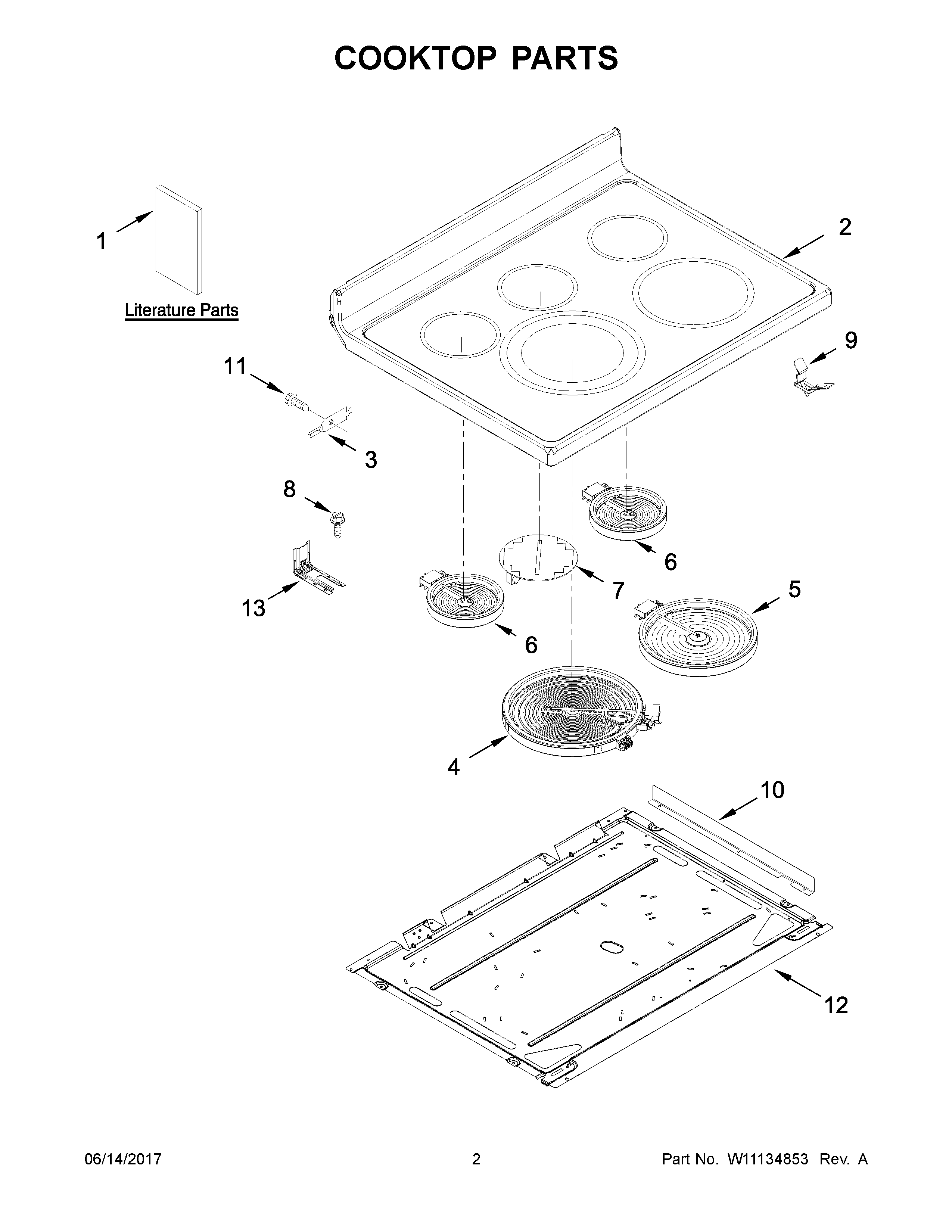

YKFES530ESS2 02 – COOKTOP PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIHARNESS, MAIN
NIHARNESS, WIRE (COOKTOP LEFT)
NIHARNESS, WIRE (COOKTOP RIGHT)
NIW10349733 Whirlpool Wire Harness
NIW10324946 Whirlpool Wire Harness
NIW11134592 Whirlpool Wire Harness
NI3400964 Whirlpool Oven Clip
1ESAFER COOKING TIPS (ENGLISH
1FSafer Cooking Tips (French)
1DINSTALL, INSTRUCTIONS
1AQUICK START GUIDE
1BQUICK START GUIDE (FRENCH)
1CTECH, SHEET
1USER, INSTRUCTIONS
2W10798166 Whirlpool Cooktop
3WP3195060 Whirlpool Cooktop Pin
4WPW10298145 Whirlpool Surface Element
5WPW10251108 Whirlpool Range Cooktop 3200W Radiant Surface Element
6ELMNT-SURF
7W11041453 Whirlpool Surface Element
8SCREW, ANTI-TIP KIT
9WPW10225448 Whirlpool Spring Assembly
10BRACKET, L-BRIDGE
113196172 Whirlpool Oven Screw
12PAN
13W11447673 Whirlpool Range Tip Anchor
