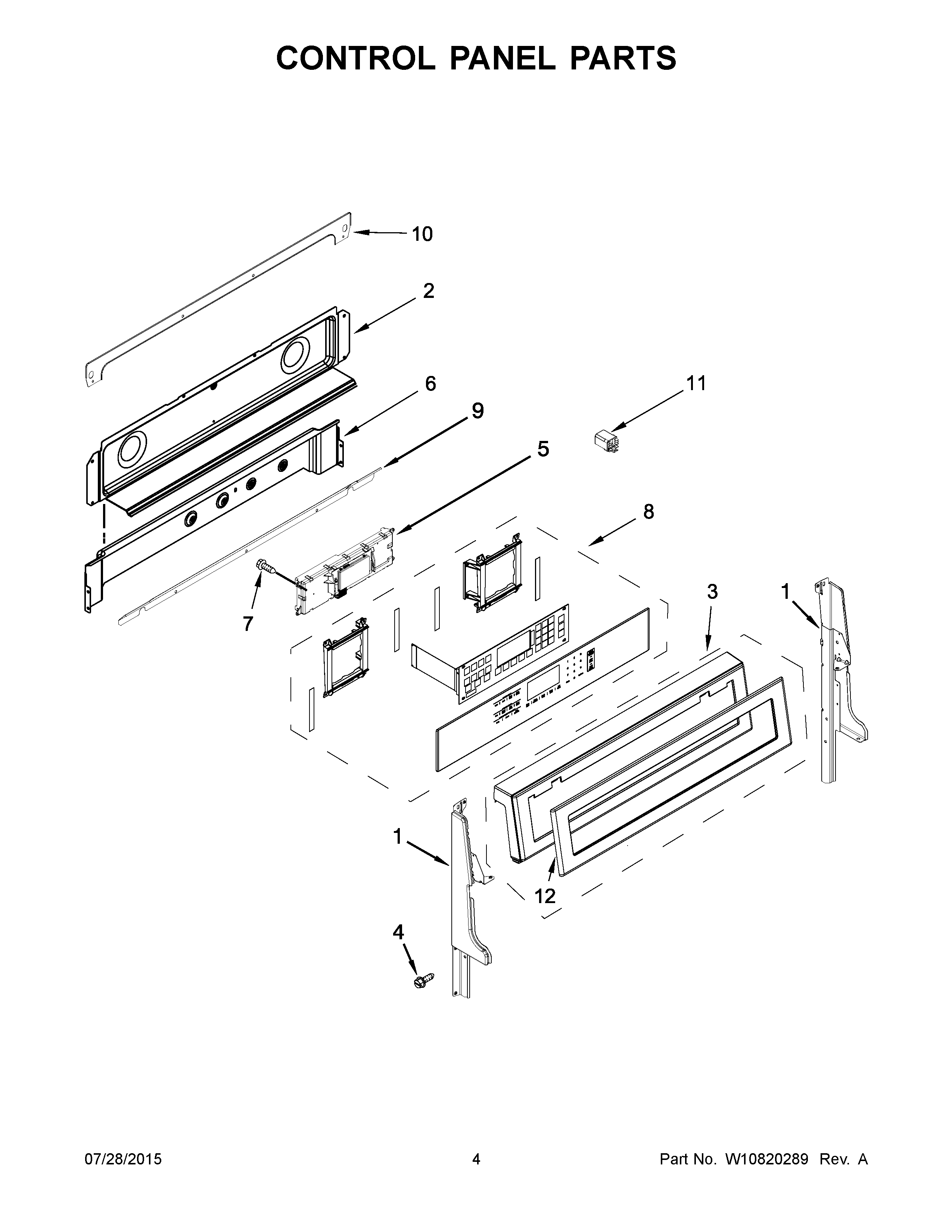

YKFID500ESS1 03 – CONTROL PANEL PARTS

Products

Position	Product
1	W10319109 Whirlpool Endcap Panel
1A	SUPPORT, BACK GUARD (RIGHT HAND)
2	W10776098 Whirlpool Rear Cover
4	WPW10067840 Whirlpool Screw
5	WPW10648866-includeCORE Whirlpool WPW10648866 Refrigerator Electronic Control Board + Core
6	W10278697 Whirlpool Vent Shield Assembly
7	SCREW
8	W10692425 Whirlpool Membrane Switch
10	WPW10292689 Whirlpool Wire Cover
11	RELAY (12V)
12	W11164063 Whirlpool Control Panel
