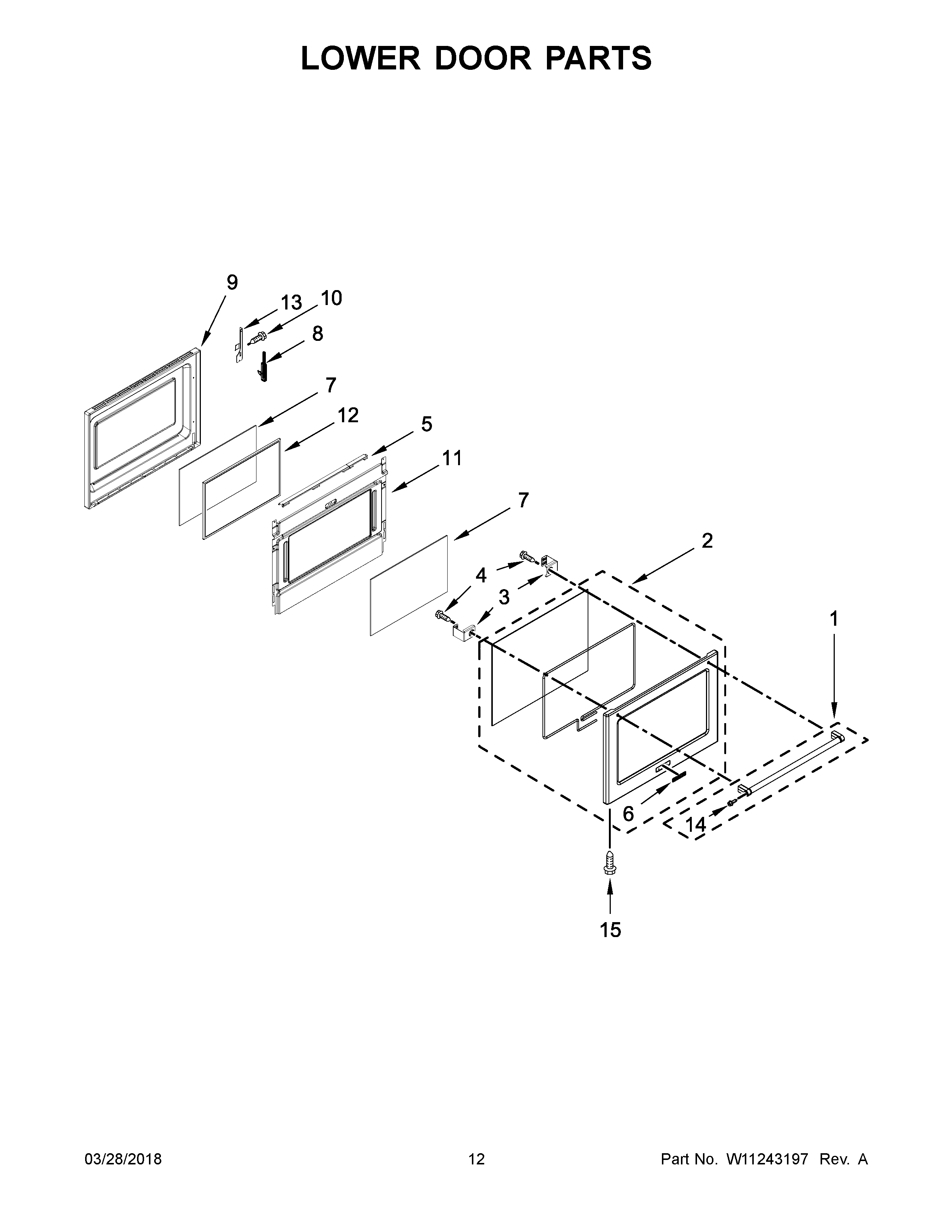

YKFID500ESS2 07 – LOWER DOOR PARTS

YKFID500ESS2 07 – LOWER DOOR PARTS

Written by

in

YKFID500ESS2 07 – LOWER DOOR PARTS

Products

PositionProduct
1W11305108 Whirlpool Door Handle
2W10777616 Whirlpool Door Glass
3W10645182 Whirlpool Mounting Bracket
4W10831019 Whirlpool Stove Door Screw
5WPW10272594 Whirlpool Window Frame
6W10839793 Whirlpool Refrigerator Nameplate
7WP9757706 Whirlpool Door Inner Glass
8WPW10335434 Whirlpool Door Hinge
8AWPW10335433 Whirlpool Door Hinge
9WPW10292008 Whirlpool Door Liner
10Screw
11W10340464 Whirlpool Retainer
12INSULATION, DOOR
13AWPW10272328 Whirlpool Hinge Receptacle
13WPW10272329 Whirlpool Hinge Receptacle
14W10920281 Whirlpool Screw
15W11690596 Whirlpool Screw
