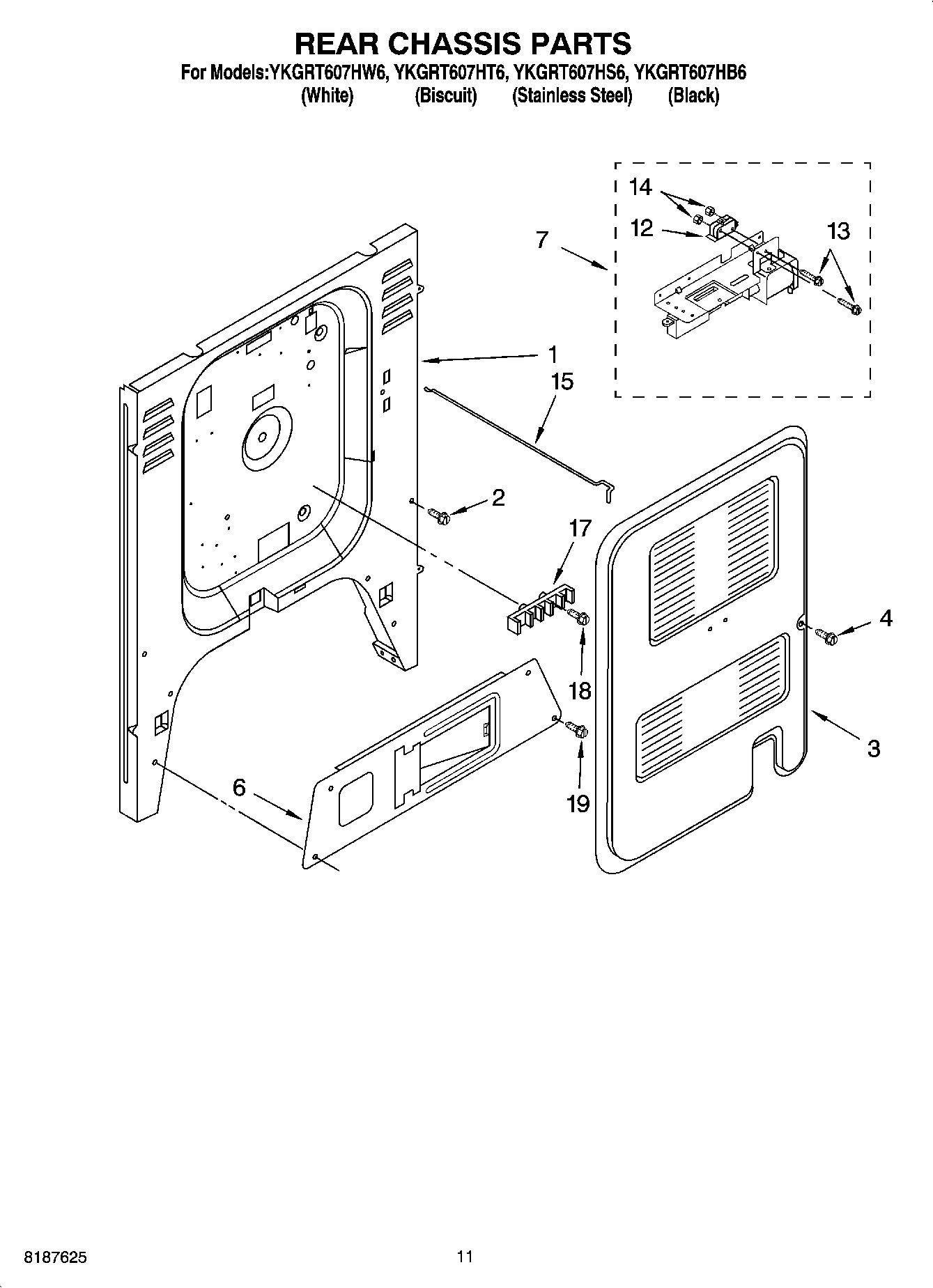

YKGRT607HB6 08 – REAR CHASSIS PARTS, MISCELLANEOUS PARTS

YKGRT607HB6 08 – REAR CHASSIS PARTS, MISCELLANEOUS PARTS

Written by

in

YKGRT607HB6 08 – REAR CHASSIS PARTS, MISCELLANEOUS PARTS

Products

PositionProduct
WPL ARI138473A
WPL 9752717
WPL 9753374
WPL 9754366
WPL 9755193
Grease
8212471 Whirlpool Oven Paint
Insulation
Insulation, Rear
WPL 9751868
1
Wire (14 Ga. 200 c Brown)
18 Ga. 80~c Rating (Red)
Wire (12 Ga. 150 c Black)
WPL 9752769
WPL 9781055
Insulation, Wrap
WPL ARI138472A
WPL ARI138471A
WPL ARI138470A
WPL ARI138469A
WPL ARI138468A
WPL ARI138467A
WPL ARI138466A
WPL ARI138465A
WP9755428 Whirlpool Orifice Spud
WPL 9755018
WPL 9754301
WPL 9755256
WPL 9754289
Wire (14 Ga. 150 c Yellow)
350930 Whirlpool White Spray Paint
285006 Whirlpool Spray
WPW10339879 Whirlpool Wire Tie
Wire, 25“ Roll (White 14 GA.)
Wire, 25` Roll (Red 14 Ga.)
WA906B Whirlpool Cooktop Glass Scraper
FOIL, ALUMINUM OVEN (18“ X 25 )
WPL 799832
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
511873 Whirlpool Refrigerator Paint
4392901 Whirlpool Biscuit Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
350942 Whirlpool Spray Paint
Almond (Uncut)
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
Hanger, Cable
3400964 Whirlpool Oven Clip
WPL 9751745
Clip, Wire
Wire, 25` Roll (Black 14 Ga.)
1Back panel, Chassis
2340184 Whirlpool Screw
3Panel, Rear Cover
4Screw (4) 10 x 3/8
6Bracket, Regulator Valve
7Oven Lock Assembly
12Switch, Interlock
13Screw, (2)
14Nut (2)
15Rod, Lock
17WP8203546 Whirlpool Terminal Block
18Screw, (2) 10-16 x 1
19WP4159387 Whirlpool Compactor Screw
