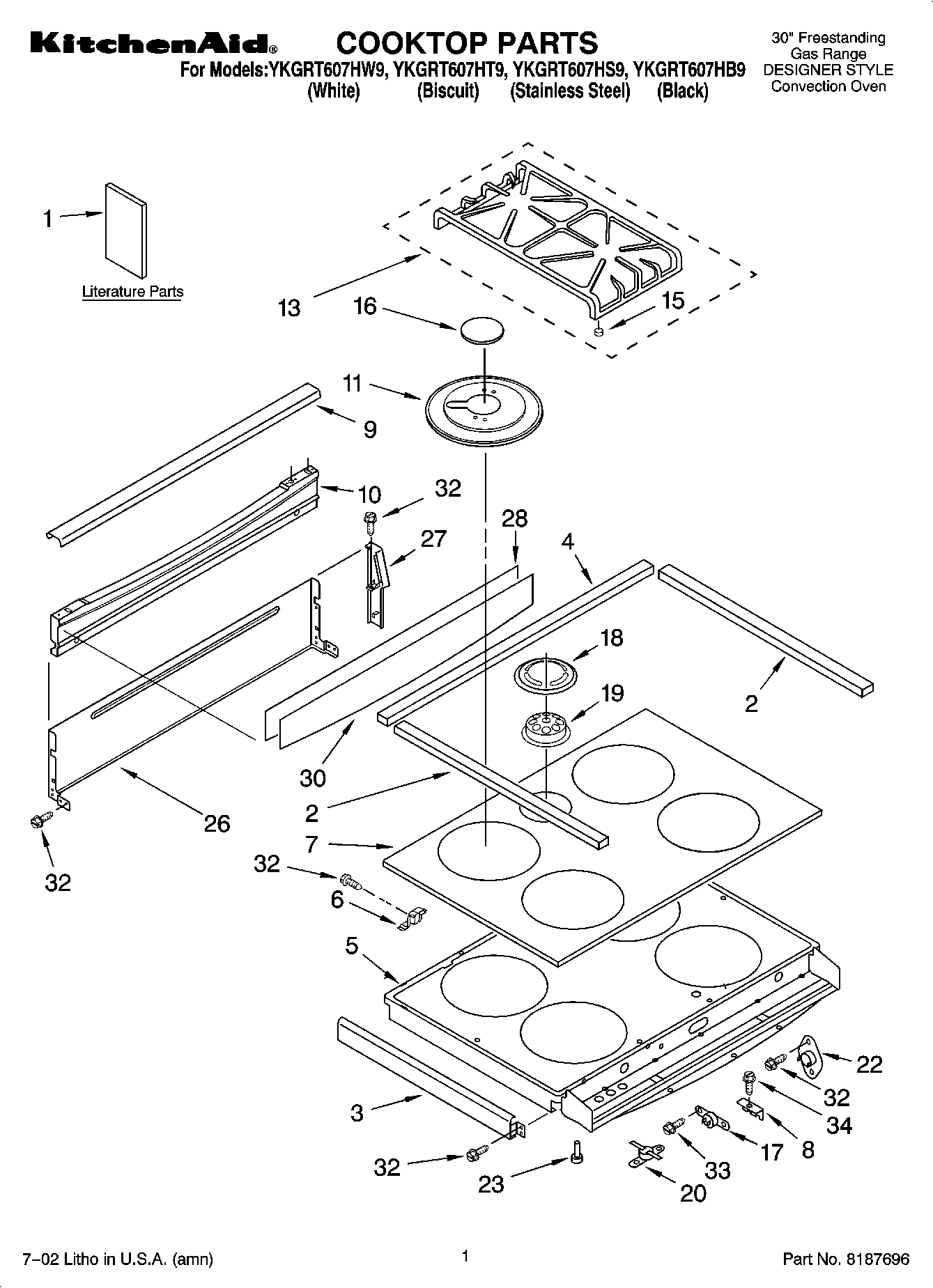

YKGRT607HB9 01 – COOKTOP PARTS

YKGRT607HB9 01 – COOKTOP PARTS

Written by

in

YKGRT607HB9 01 – COOKTOP PARTS

Products

PositionProduct
1Easy Set Guide
1Use & Care Guide (English)
1Use & Care Guide (French)
1Literature Parts (Tech Sheet)
1Literature Parts (Wiring Diagram)
1WPL LIT9752775
1Installation Instructions (English)
1Literature Parts (LP Installation Instructions)
1Installation Instructions (French)
1Easy Set Guide (French)
1LITERATURE PARTS
2WP9780939 Whirlpool Cooktop Gasket
3WPL 9751276PB
3WPL 9751276PC
3Trim, Cooktop (Black (Right))
3WPL 9751275PC
3(Trim, Cooktop (Left Hand)) (White)
3Trim, Cooktop (White (Right))
4Gasket, Silicone
5Support, Burner
6Washer, Pivot
6Bracket, Pivot
7Cooktop, Glass (Opaque White)
7Cooktop, Glass (Black)
7Cooktop, Glass (Biscuit)
8Support Clips (4)
9Cover, Light (Biscuit)
9Cover, Light (Black)
9Cover, Light (White)
10Backsplash (White)
10Backsplash (Biscuit)
10Backsplash (Black)
11Bezel, Burner (Mouse Gray) (14K LF)
11(Bezel, Burner (Black)) (6K RF-LR)
11Bezel, Burner (Mouse Gray) (6K RF-LR)
11Bezel, Bu
11WPL 9753602GS
11(Bezel, Burner (Black)) (14K LF)
13WPL 9753616GS
13WPL 9753616GB
15814323 Whirlpool Range Burner Grate Foot Pads (5 Pack)
16WPL 9753939GB
16WPL 9753939GS
16WP3191898 Whirlpool Surface Burner Cap Black
16WP3191904 Whirlpool Burner Cap
16WP3191905 Whirlpool Burner Cap
16Cap, Burner 6K (1) (Gray)
17Thermostat SPST (205)
18WPL 9751271GW
18WPL 9751271GB
18WPL 9751271GC
19WPL 9751366
20WP9759944 Whirlpool Thermostat
22WPL 9752006
23238614 Whirlpool Bumper Hinge
26Cover, Backsplash
27Endcap, Backsplash (Black, Left)
27Endcap, Backsplash (Black, Right)
27Endcap, Backsplash (White, Right)
27Endcap, Backsplash (Biscuit, Right)
27Endcap, Backsplash (Biscuit, Left)
27Endcap, Backsplash (White, Left)
28WPL 9753910CB
28WPL 9753910CW
28WP9753292 Whirlpool Backsplash Glass
28WPL 9753910CC
30WPL 9754071
32WP4159387 Whirlpool Compactor Screw
33Back Splash (Screw (4) 10AB x 1/2“)
34Screw, 10-16 x 1
