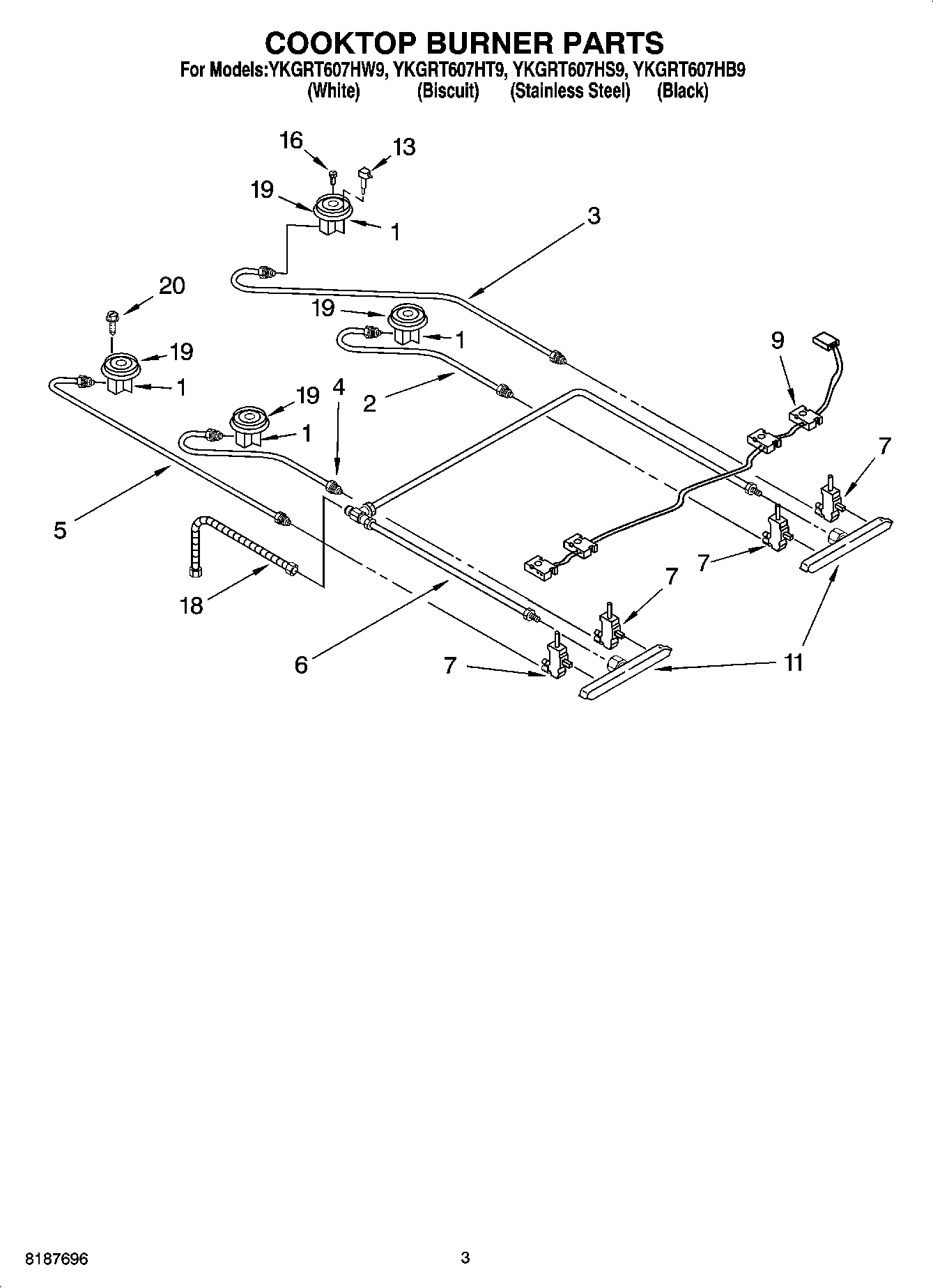

YKGRT607HB9 02 – COOKTOP BURNER PARTS

Products

Position	Product
1	Burner Base w/Orifice (Small (2))
1	WPW10244714 Whirlpool Orifice Holder
1	WPW10128456 Whirlpool Orifice Holder
2	Tubing, Burner (RF)
3	Tubing, Burner (RR)
4	Tubing, Burner (LF)
5	Tubing, Burner (LR)
6	Tube, Manifold
7	Valve, Burner Large (2)
7	Valve, Burner Small (2)
7	Valve, Burner (14K LF Plain Stem)
7	WP3186217 Whirlpool Screw
9	WP9755451 Whirlpool Wire Harness
11	Manifold (Left Hand)
11	Manifold (Right Hand)
13	WP9782116 Whirlpool Surface Igniter
16	WP9753930 Whirlpool Orifice
16	WP9753928 Whirlpool Orifice Assembly
16	WP9753929 Whirlpool Orifice
18	Tubing, Flex
19	WP4455981 Whirlpool Burner Head
19	Head, Burner (Pad, Burner Ring)
19	WP4455979 Whirlpool Range Small Burner Head
19	Burner Head (Turbi)
20	WPW10067840 Whirlpool Screw
