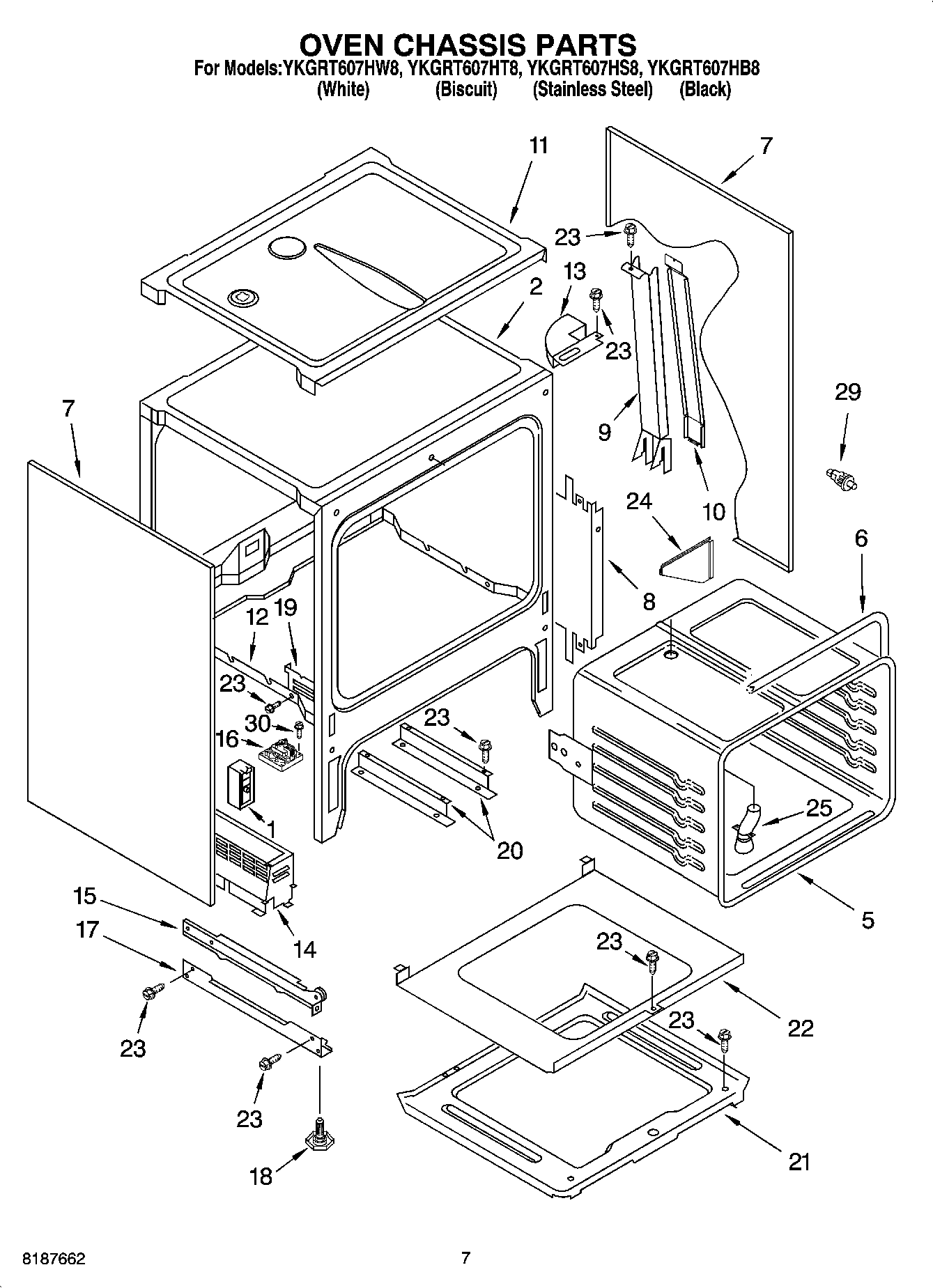

YKGRT607HS8 05 – OVEN CHASSIS PARTSadmin2025-04-26T11:11:18+00:00YKGRT607HS8 05 – OVEN CHASSIS PARTS
Products
| Position | Product |
|---|
| 1 | WPW10110491 Whirlpool Spark Module |
| 2 | Chassis, Front |
| 5 | Oven Liner |
| 6 | Gasket, Oven |
| 7 | Body, Side (Black) |
| 7 | Body, Side (Biscuit) |
| 7 | Body, Side (White) |
| 8 | Shield, Insulation |
| 9 | Duct, Side Fan |
| 10 | Fan Duct, Cover |
| 11 | Burner Box |
| 12 | Retainer, Insulation |
| 13 | Duct, Top |
| 14 | Support, Fan |
| 15 | Rail, Drawer (Right) |
| 15 | Drawer Rail, Left |
| 16 | Motor, Fan |
| 17 | Bottom Rail (2) |
| 18 | WPW10058460 Whirlpool Appliance Levelling Leg |
| 19 | Hinge, Base L or R |
| 20 | Support Rail |
| 21 | Shield |
| 22 | Plate, Reflector |
| 23 | WP4159387 Whirlpool Compactor Screw |
| 24 | Shield, Heat |
| 25 | Vent Tube |
| 29 | Door Switch |
| 30 | Screw, (3) No.8 x 1`` |
