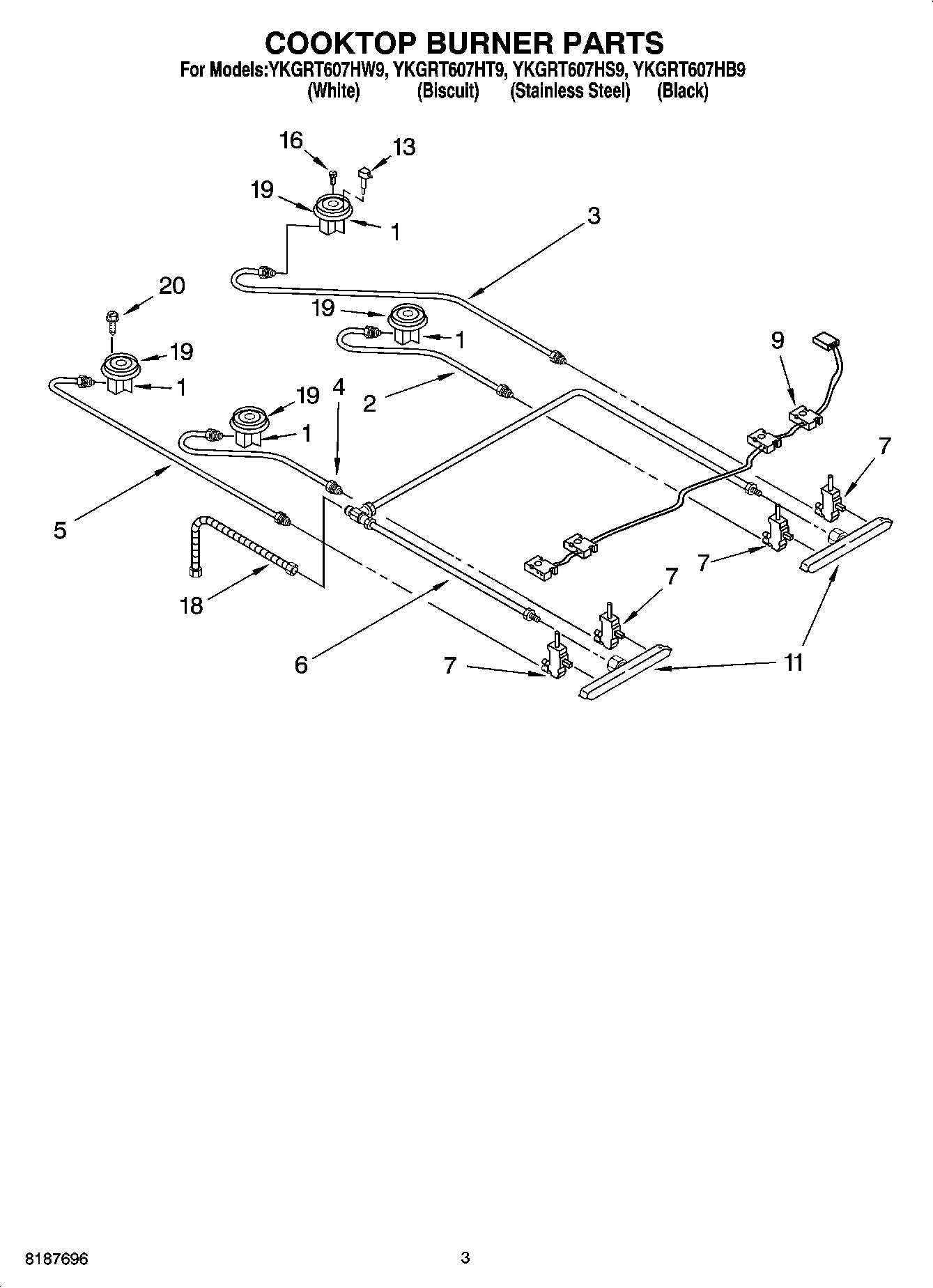

YKGRT607HS9 02 – COOKTOP BURNER PARTSadmin2025-04-26T11:10:16+00:00YKGRT607HS9 02 – COOKTOP BURNER PARTS
Products
| Position | Product |
|---|
| 1 | Burner Base w/Orifice (Small (2)) |
| 1 | WPW10244714 Whirlpool Orifice Holder |
| 1 | WPW10128456 Whirlpool Orifice Holder |
| 2 | Tubing, Burner (RF) |
| 3 | Tubing, Burner (RR) |
| 4 | Tubing, Burner (LF) |
| 5 | Tubing, Burner (LR) |
| 6 | Tube, Manifold |
| 7 | Valve, Burner Large (2) |
| 7 | Valve, Burner Small (2) |
| 7 | Valve, Burner (14K LF Plain Stem) |
| 7 | WP3186217 Whirlpool Screw |
| 9 | WP9755451 Whirlpool Wire Harness |
| 11 | Manifold (Left Hand) |
| 11 | Manifold (Right Hand) |
| 13 | WP9782116 Whirlpool Surface Igniter |
| 16 | WP9753930 Whirlpool Orifice |
| 16 | WP9753928 Whirlpool Orifice Assembly |
| 16 | WP9753929 Whirlpool Orifice |
| 18 | Tubing, Flex |
| 19 | WP4455981 Whirlpool Burner Head |
| 19 | Head, Burner (Pad, Burner Ring) |
| 19 | WP4455979 Whirlpool Range Small Burner Head |
| 19 | Burner Head (Turbi) |
| 20 | WPW10067840 Whirlpool Screw |
