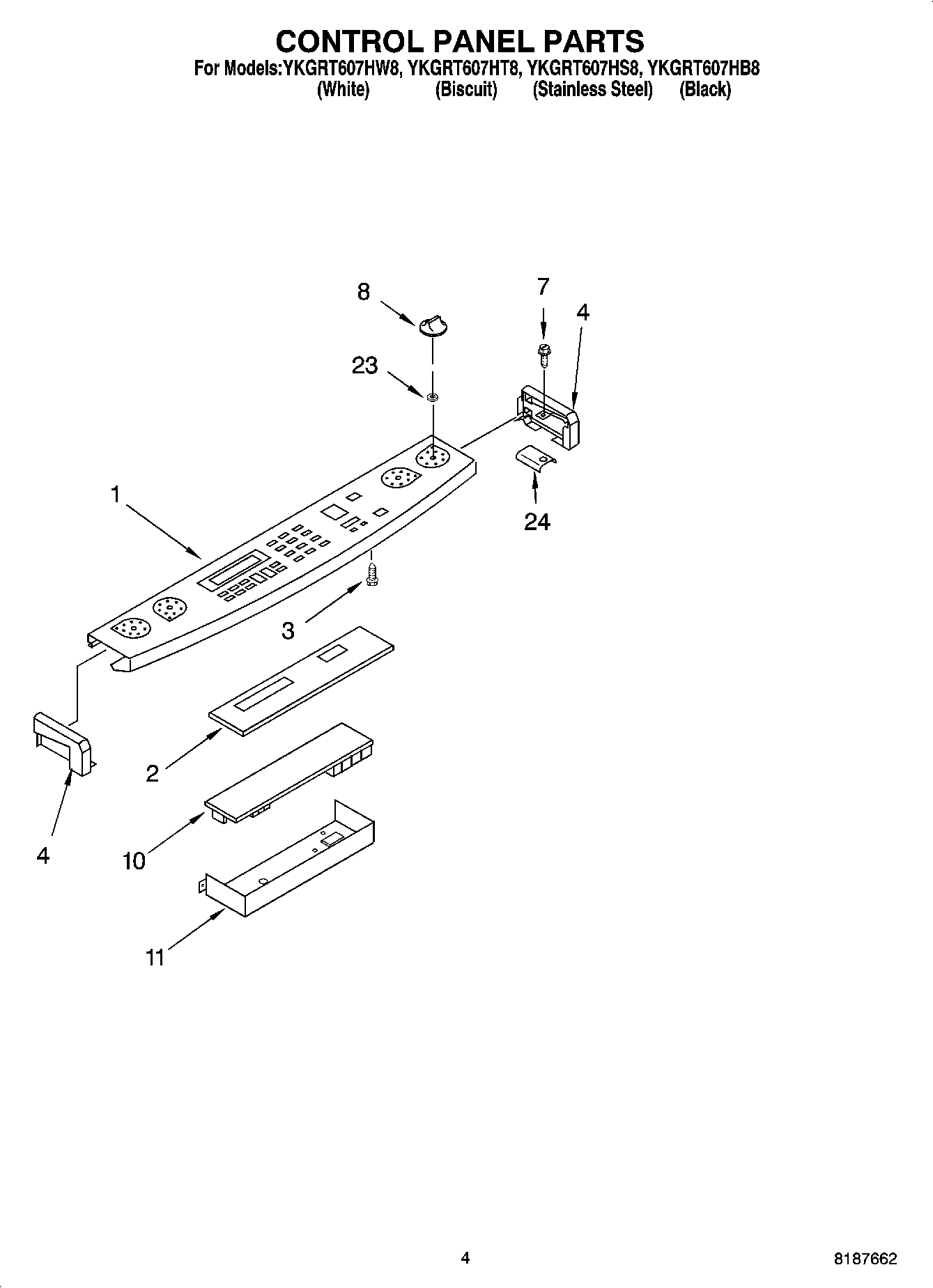

YKGRT607HW8 03 – CONTROL PANEL PARTSadmin2025-04-26T11:10:11+00:00YKGRT607HW8 03 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | Console, Glass (White) |
| 1 | Console, Glass (Black) |
| 1 | Console, Glass (Biscuit) |
| 2 | Board, Display |
| 3 | Screw |
| 4 | End Cap (Biscuit, Right) |
| 4 | End Cap (Black, Right) |
| 4 | End Cap (Biscuit, Left) |
| 4 | End Cap (White, Right) |
| 4 | End Cap (Black, Left) |
| 4 | End Cap (Left Hand) (White) |
| 7 | WP4159387 Whirlpool Compactor Screw |
| 8 | W10405147 Whirlpool Knob |
| 8 | Knobs, Control (Biscuit) |
| 8 | Knobs, Control (White) |
| 10 | Board, Power |
| 11 | Shield, Control Panel |
| 23 | WP3188425 Whirlpool Seal Switch |
| 24 | Console, Glass (Spacer) |
