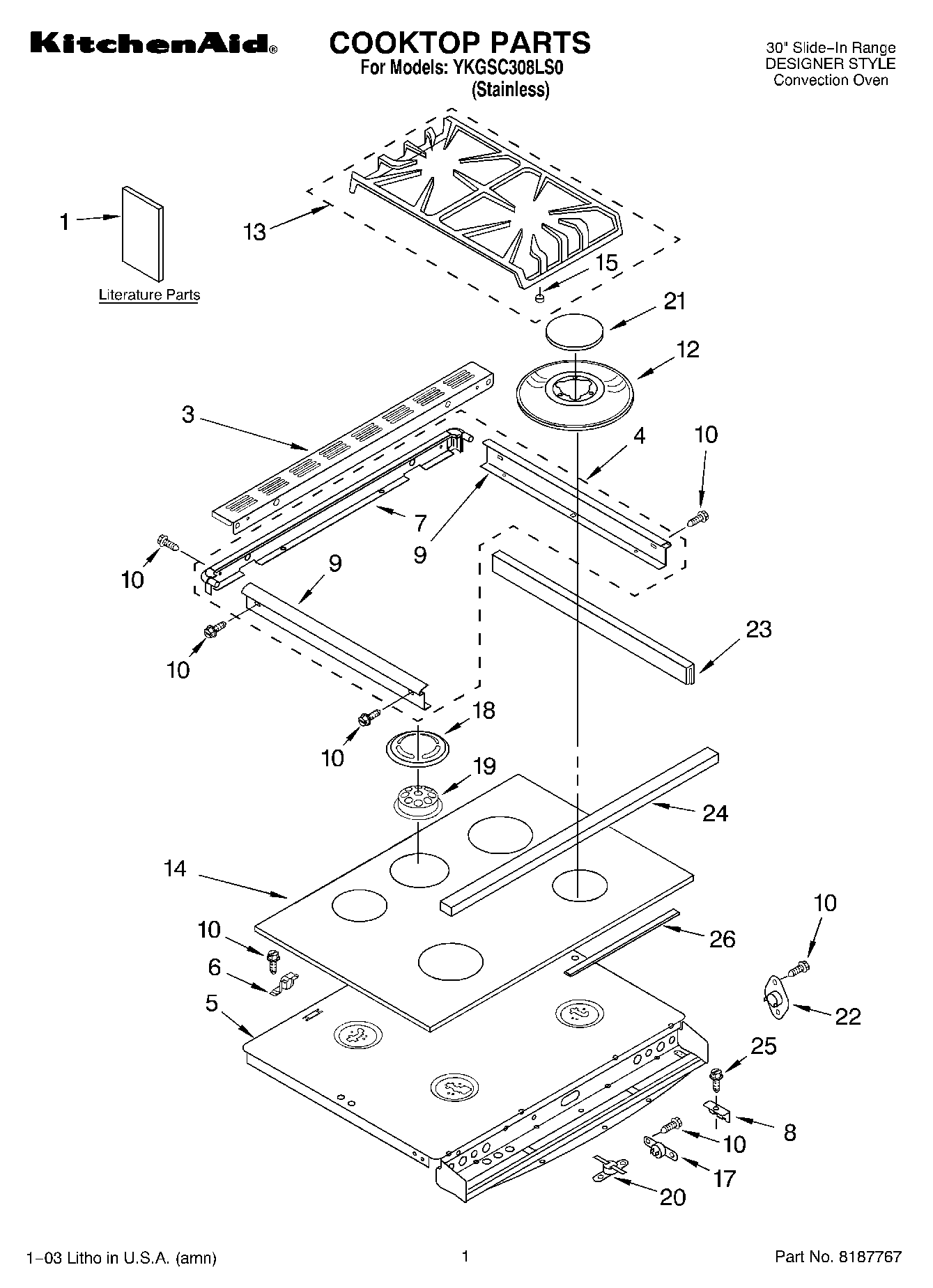

YKGSC308LS0 01 – COOKTOP PARTS

Products

Position	Product
1	Literature Parts (LP Installation Instructions)
1	Literature Parts (Easy Set Guide (French))
1	WPL LIT9752775
1	Literature Parts (Easy Set Guide)
1	Literature Parts (Tech Sheet)
1	Use & Care Guide (English)
1	Use & Care Guide (French)
1	Literature Parts (Wiring Diagram)
1	Literature Parts (Installation Instructions)
1	Literature Parts (Installation Instructions (French))
1	Literature Parts (Guide, Cleaner Use)
3	Vent, Rear
4	Frame, Cooktop (Black)
5	Support, Burner
6	Bracket, Pivot
6	Washer, Pivot
7	Trim, Rear Frame (Incls. End Caps) (Black)
8	Support Clips (4)
9	Trim, Side Frame (Black)
10	WP4159387 Whirlpool Compactor Screw
12	(Bezel, Burner (Black)) (6K RF-LR)
12	Bezel, Bu
12	(Bezel, Burner (Black)) (14K LF)
13	WPL 9753616GB
14	Cooktop, Glass (Black)
15	814323 Whirlpool Range Burner Grate Foot Pads (5 Pack)
17	Thermostat SPST (205)
18	WPL 9751271GB
19	WPL 9751366
20	WP9759944 Whirlpool Thermostat
21	WP3191904 Whirlpool Burner Cap
21	WP3191898 Whirlpool Surface Burner Cap Black
21	WPL 9753939GB
22	WPL 9752006
23	Seal, Rubber
24	Gasket, Cooktop
25	Screw, 10-16 x 1
26	Head, Burner (Pad, Burner Ring)
