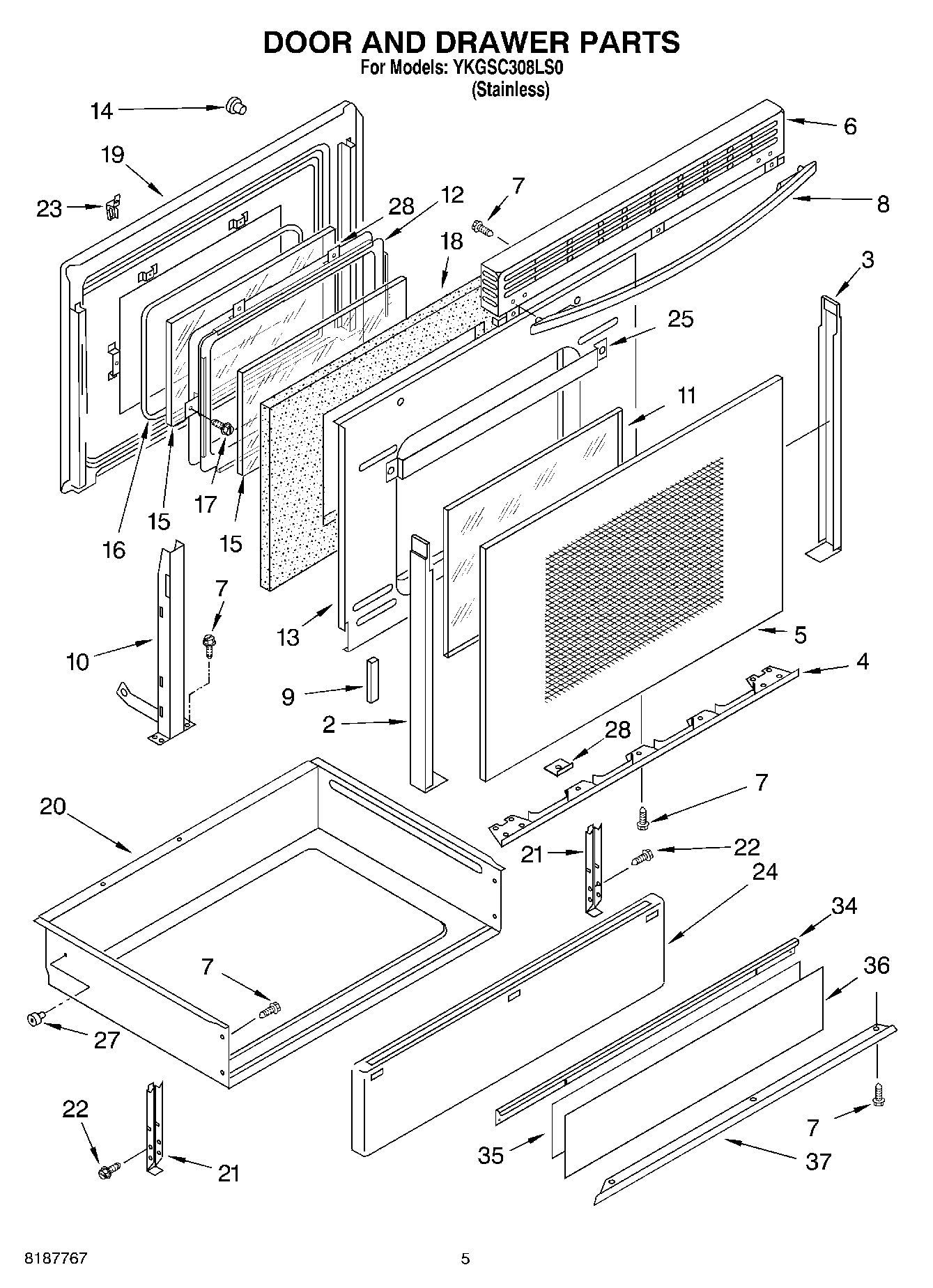

YKGSC308LS0 04 – DOOR AND DRAWER PARTS

Products

Position	Product
2	Trim, Door-Left (Black)
3	Trim, Door-Right (Black)
4	Trim, Door Bottom (Black)
5	Glass, Door (Black Stainless)
6	Vent, Door
6	Vent, Door (Seal, Door Vent Side)
7	WP4159387 Whirlpool Compactor Screw
7	Vent, Door (Gasket, Vent)
8	Handle, Door
9	Gasket, Door Glass
10	WP9782033 Whirlpool Door Hinge
11	Baffle, Glass
12	Frame, Window
13	Shield, Door
14	238614 Whirlpool Bumper Hinge
15	WP9781593 Whirlpool Door Glass
16	WP9755177 Whirlpool Wind Gasket
17	Screw
18	Insulation, Door
19	Liner, Door
20	Drawer & Roller
21	Bracket, Drawer
22	Screw (4) 10 x 1/2
23	Retainer, Glass
24	Front, Drawer (Black Stainless)
25	Channel, Heat
27	814229 Whirlpool Primary Roller
27	WP90296 Whirlpool Clip
28	Spacer, Door (8)
34	WPL 9750614PB
35	WPL 9753329
36	Panel, Drawer
37	WPL 9750613PB
