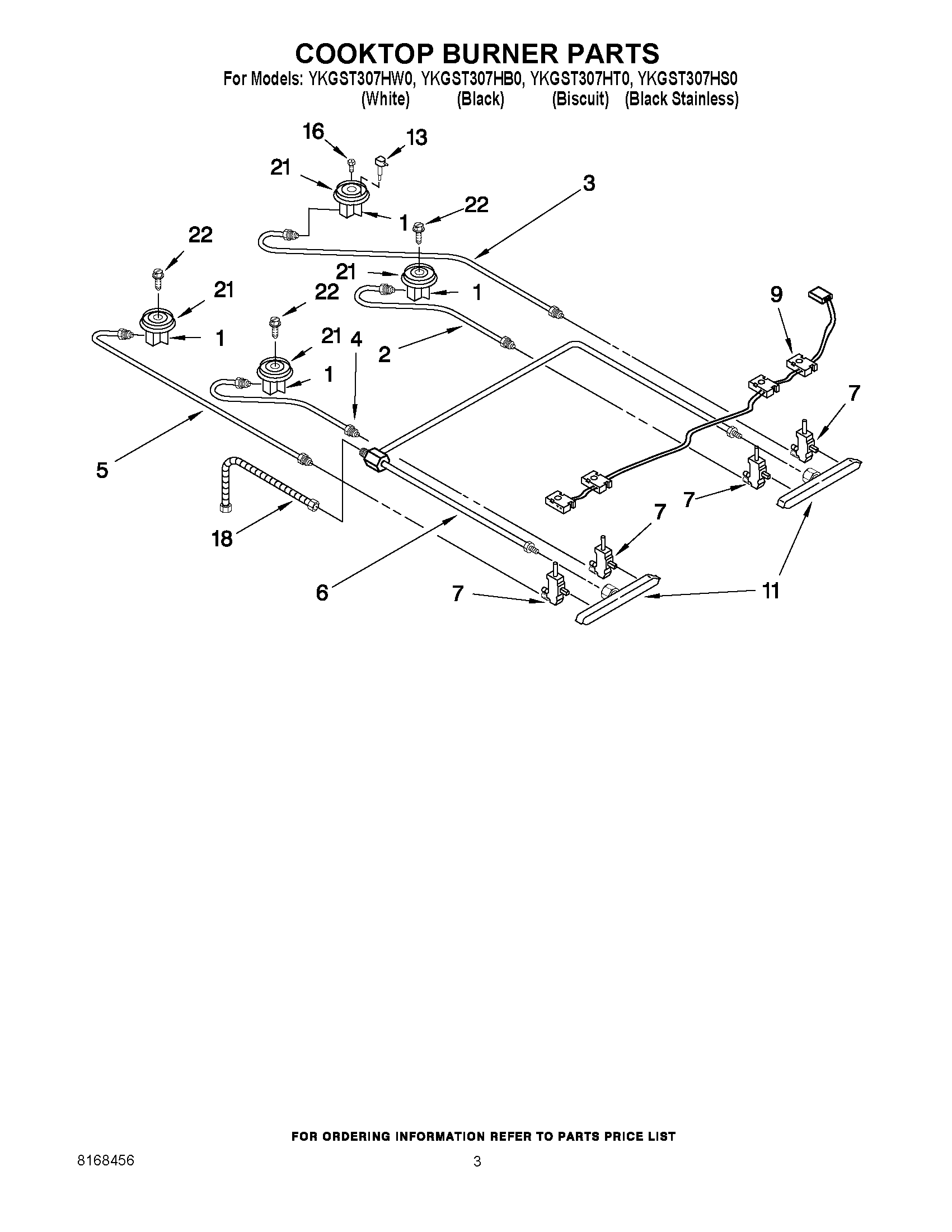

YKGST307HB0 02 – COOKTOP BURNER PARTS

Products

PositionProduct
1Burner Base W/Orifice (6K RF-LR)
1Burner Base W/Orifice (12K RR)
1Burner Base W/Orifice (14K LF)
2Tubing, Burner (RF)
3Tubing, Burner (RR)
4Tubing, Burner (LF)
5Tubing, Burner (LR)
6Tubing, Manifold
7Bolt (Gas Valve)
7Valve, Burner (14K LF Plain Stem)
7Valve, Burner Small (2)
7Valve, Burner Large (2)
9Spark Switch & Harness Assembly
11Manifold
13Ignitor
16WP9753928 Whirlpool Orifice Assembly
16WP9753929 Whirlpool Orifice
16WP9753930 Whirlpool Orifice
18Tubing, Flex
21Head, Burner (LF)
21Head, Burner (RF)
21Head, Burner (14K LF)
22WPW10067840 Whirlpool Screw
