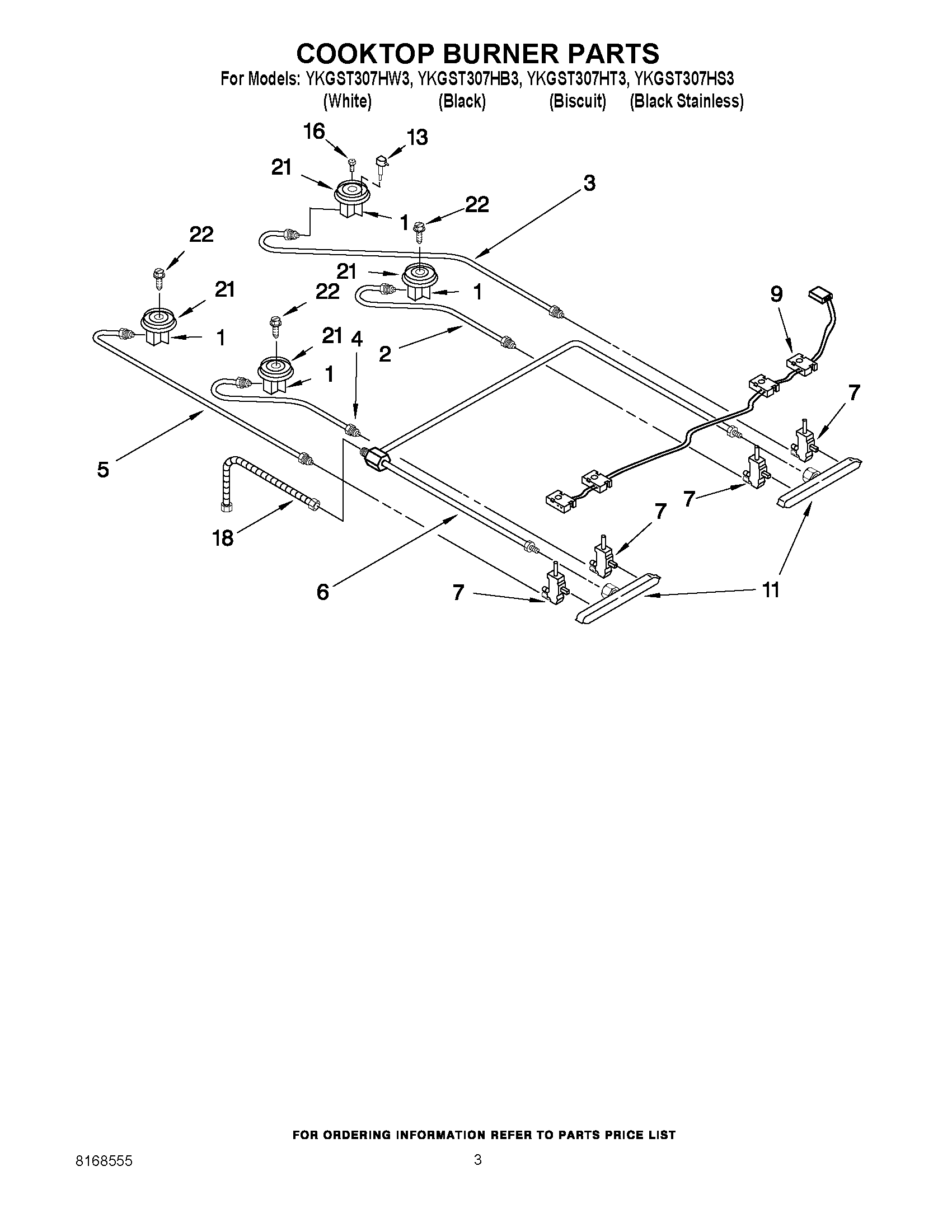

YKGST307HB3 02 – COOKTOP BURNER PARTS

Products

PositionProduct
1Burner Base W/Orifices (14K LF)
1Burner Base w/Orifice (Large (2))
1Orifice Holder (Includes Orific & Ignitor) (Auxi)
2Tubing, Burner (RF)
3Tubing, Burner (RR)
4Tubing, Burner (LF)
5Tubing, Burner (LR)
6Tubing, Manifold
7Bolt (Gas Valve)
7Valve, Burner Small (2)
7Valve, Burner Large (2)
7Valve, Burner (14K LF Plain Stem)
9Spark Switch & Harness Assembly
11Manifold
13WP9754215 Whirlpool Surface Igniter
16WP9753928 Whirlpool Orifice Assembly
16WP9753929 Whirlpool Orifice
16WP9753930 Whirlpool Orifice
18Tubing, Flex
21WP4455981 Whirlpool Burner Head
21WP4455979 Whirlpool Range Small Burner Head
21Head, Burner (14K – LF)
22WPW10067840 Whirlpool Screw
