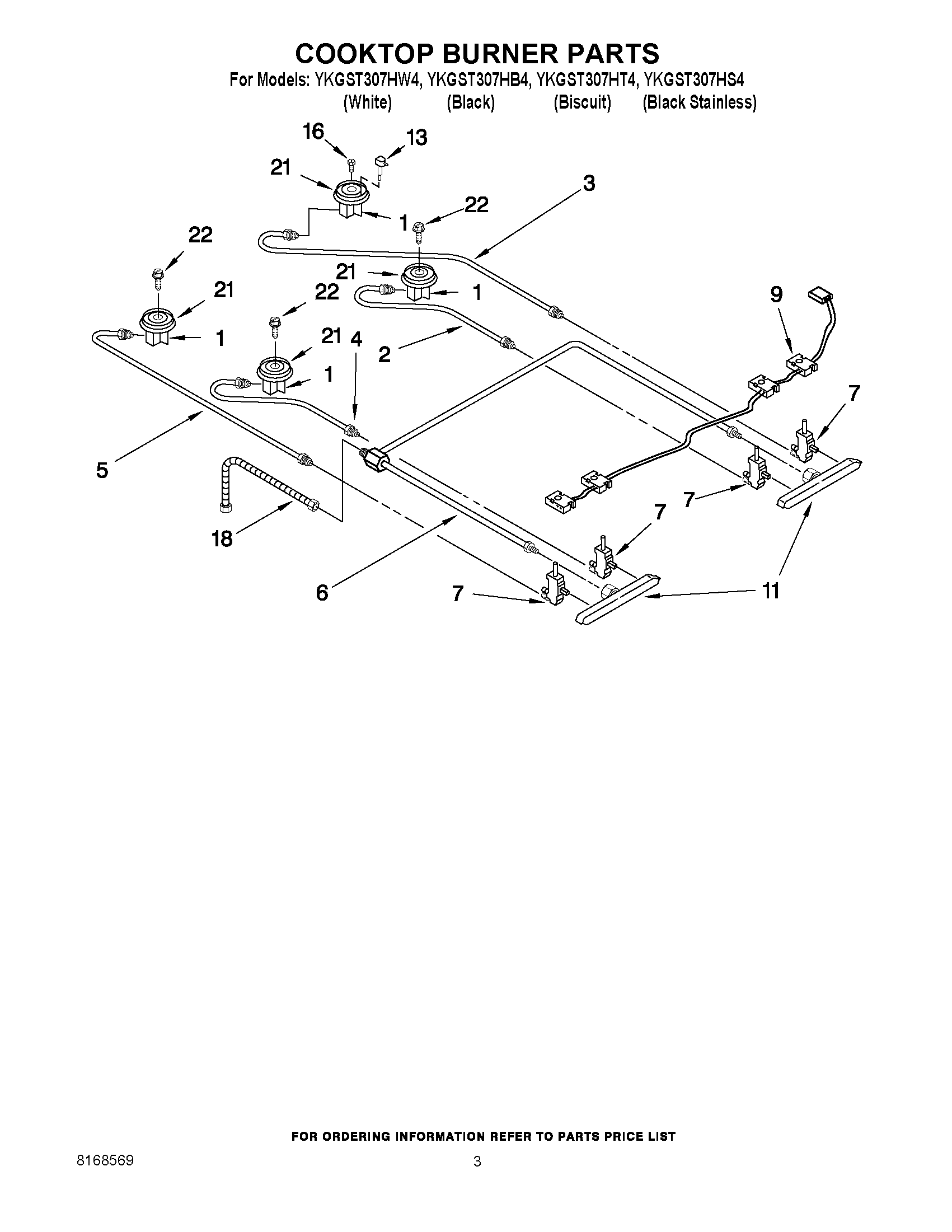

YKGST307HB4 02 – COOKTOP BURNER PARTS

Products

Position	Product
1	Burner Base w/Orifice (Large (2))
1	Burner Base W/Orifices (14K LF)
1	Orifice Holder (Includes Orific & Ignitor) (Auxi)
2	Tubing, Burner (RF)
3	Tubing, Burner (RR)
4	Tubing, Burner (LF)
5	Tubing, Burner (LR)
6	Tube, Manifold
7	Valve, Burner (14K LF Plain Stem)
7	Valve, Burner Large (2)
7	Valve, Burner Small (2)
7	Bolt (Gas Valve)
9	Spark Switch & Harness Assembly
11	Manifold (Right Hand)
11	Manifold (Left Hand)
13	WP9754215 Whirlpool Surface Igniter
16	WP9753928 Whirlpool Orifice Assembly
16	WP9753929 Whirlpool Orifice
16	WP9753930 Whirlpool Orifice
18	Tubing, Flex
21	WP4455981 Whirlpool Burner Head
21	WP4455979 Whirlpool Range Small Burner Head
21	Head, Burner (14K – LF)
22	WPW10067840 Whirlpool Screw
