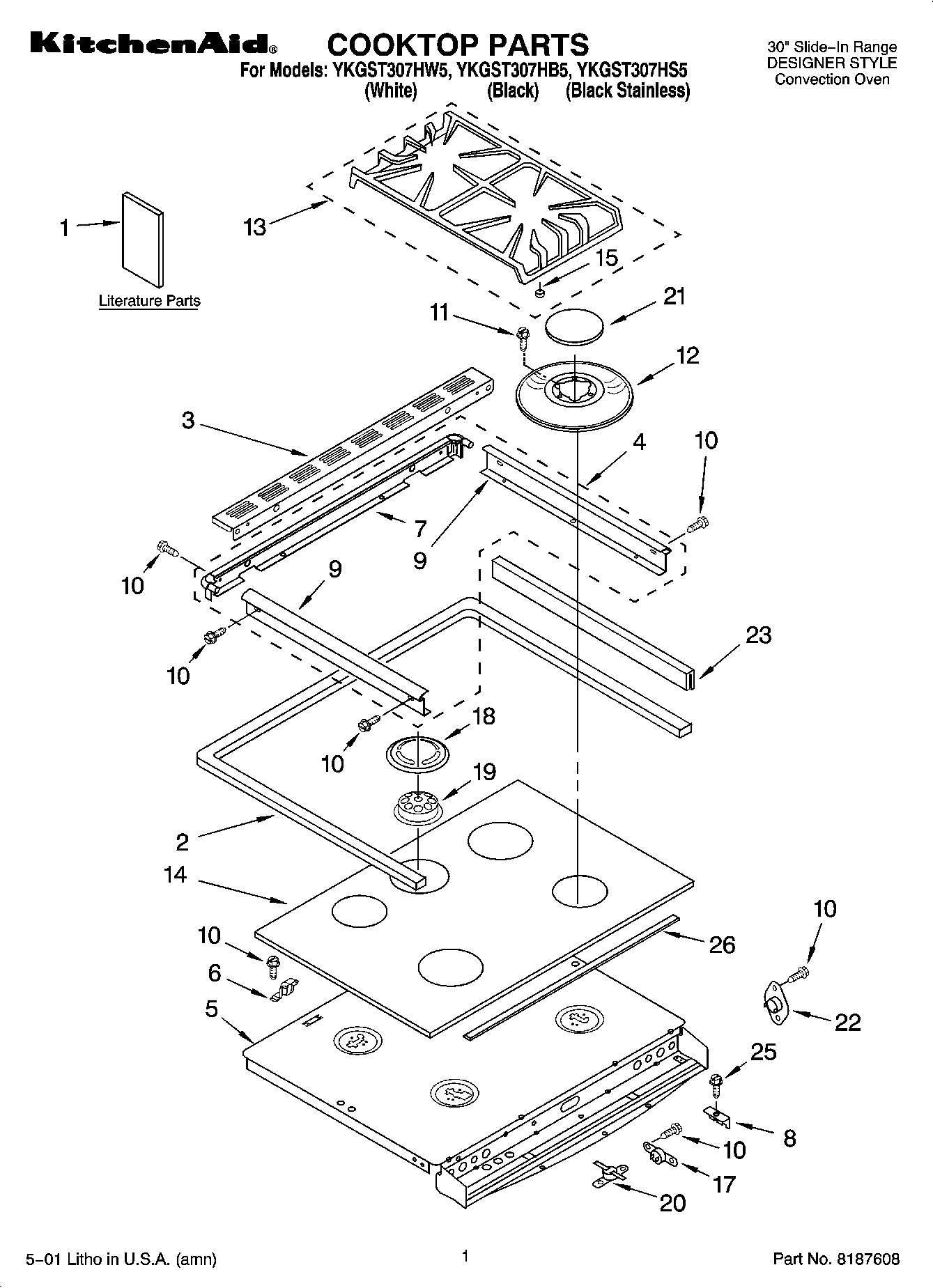

YKGST307HB5 01 – COOKTOP PARTSadmin2025-04-26T11:12:00+00:00YKGST307HB5 01 – COOKTOP PARTS
Products
| Position | Product |
|---|
| 1 | WPL LIT9752775 |
| 1 | Literature Parts (Wiring Diagram) |
| 1 | Literature Parts (Tech Sheet) |
| 1 | Use & Care Guide (French) |
| 1 | Installation Instructions (French) |
| 1 | Installation Instructions (English) |
| 1 | SMART & EASY GUIDE (FRENCH) |
| 1 | Use & Care Guide (English) |
| 1 | Literature Parts (LP Installation Instructions) |
| 1 | Literature Parts (Smart & Easy Guide) |
| 1 | LITERATURE PARTS |
| 2 | Gasket, Cooktop |
| 3 | Vent, Rear (White) |
| 3 | Vent, Rear (Black) |
| 4 | Frame, Cooktop (White) |
| 4 | Frame, Cooktop (Black) |
| 5 | Support, Burner |
| 6 | Washer, Pivot |
| 6 | Bracket, Pivot |
| 7 | Trim, Rear Frame (Incls. End Caps) (Black) |
| 7 | Trim, Rear (Includes End Caps) (White) |
| 8 | Support Clips (4) |
| 9 | Trim, Side Frame (Black) |
| 9 | Trim, Side Frame (White) |
| 10 | WP4159387 Whirlpool Compactor Screw |
| 11 | WP3368921 Whirlpool Screw |
| 12 | (Bezel, Burner (Black)) (14K LF) |
| 12 | WPL 9753602GS |
| 12 | Bezel, Burner (Mouse Gray) (14K LF) |
| 12 | (Bezel, Burner (Black)) (6K RF-LR) |
| 12 | Bezel, Burner (Mouse Gray) (6K RF-LR) |
| 12 | Bezel, Bu |
| 13 | WPL 9753616GS |
| 13 | WPL 9753616GB |
| 14 | Cooktop, Glass (Black) |
| 14 | Cooktop, Glass (Opaque White) |
| 15 | 814323 Whirlpool Range Burner Grate Foot Pads (5 Pack) |
| 17 | Thermostat SPST (205) |
| 18 | WPL 9751271GW |
| 18 | WPL 9751271GB |
| 19 | WPL 9751366 |
| 20 | WP9759944 Whirlpool Thermostat |
| 21 | WP3191905 Whirlpool Burner Cap |
| 21 | WP3191904 Whirlpool Burner Cap |
| 21 | WPL 9753939GS |
| 21 | WPL 9753939GB |
| 21 | Cap, Burner 6K (1) (Gray) |
| 21 | WP3191898 Whirlpool Surface Burner Cap Black |
| 22 | WPL 9752006 |
| 23 | Seal, Rubber |
| 25 | Screw, 10-16 x 1 |
| 26 | Head, Burner (Pad, Burner Ring) |
