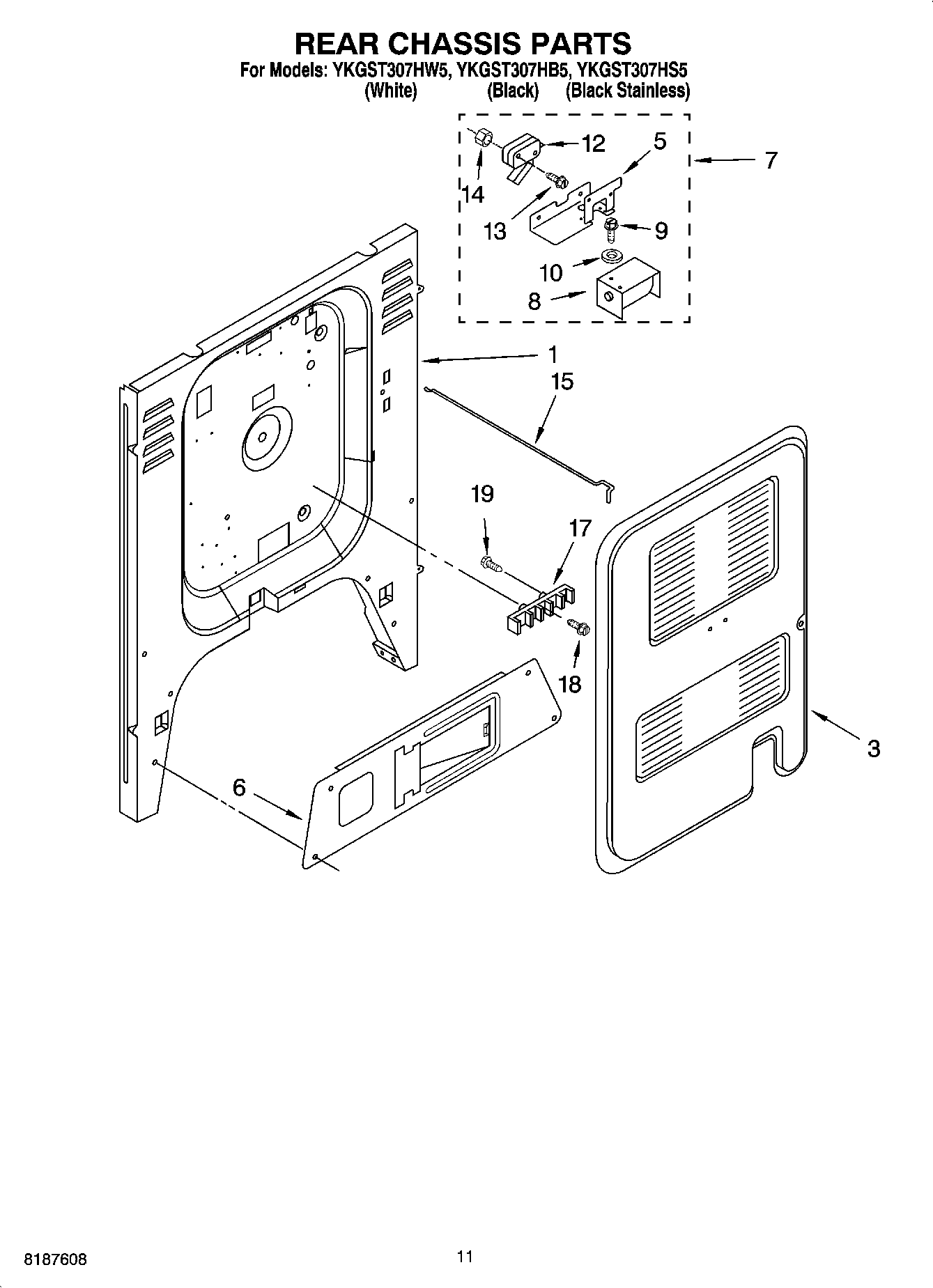

YKGST307HB5 08 – REAR CHASSIS PARTS, MISCELLANEOUS PARTS

YKGST307HB5 08 – REAR CHASSIS PARTS, MISCELLANEOUS PARTS

Written by

in

YKGST307HB5 08 – REAR CHASSIS PARTS, MISCELLANEOUS PARTS

Products

PositionProduct
WPL ARI138647A
WPL 9752769
WPL 9752717
WPL 9753374
WPL 9751868
8212471 Whirlpool Oven Paint
Insulation
Insulation, Rear
Grease
1
Wire (14 Ga. 200 c Brown)
18 Ga. 80~c Rating (Red)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
WPL 9781055
Insulation, Wrap
WPL ARI138646A
WPL ARI138645A
WPL ARI138644A
WPL ARI138643A
WPL ARI138642A
WPL ARI138641A
WPL ARI138640A
WPL ARI138639A
WPL 9753808
WPL 9751708
WP9755428 Whirlpool Orifice Spud
WPL 9782134
WPL 9754301
Wire (14 Ga. 150 c Orange)
350930 Whirlpool White Spray Paint
285006 Whirlpool Spray
WPW10339879 Whirlpool Wire Tie
Wire, 25` Roll (Red 14 Ga.)
Wire, 25` Roll (Black 14 Ga.)
WA906B Whirlpool Cooktop Glass Scraper
FOIL, ALUMINUM OVEN (18“ X 25 )
WPL 799832
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
511873 Whirlpool Refrigerator Paint
4392901 Whirlpool Biscuit Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
350942 Whirlpool Spray Paint
Almond (Uncut)
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
Wire, 25“ Roll (White 14 GA.)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
Hanger, Cable
3400964 Whirlpool Oven Clip
WPL 9751745
WPL 9750376
Clip, Wire
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
8528351 Whirlpool Clip
1Back panel, Chassis
3Panel, Rear Cover
5Bracket, Lock
6Bracket, Regulator Valve
7Oven Lock Assembly
8Solenoid
9Screw (2) 10-32 x 5/16
10Washer (2)
12Switch, Interlock
13Screw, (2)
14Nut (2)
15Rod, Lock
17WP8203546 Whirlpool Terminal Block
18Screw, (2) 10-16 x 1
19340184 Whirlpool Screw
