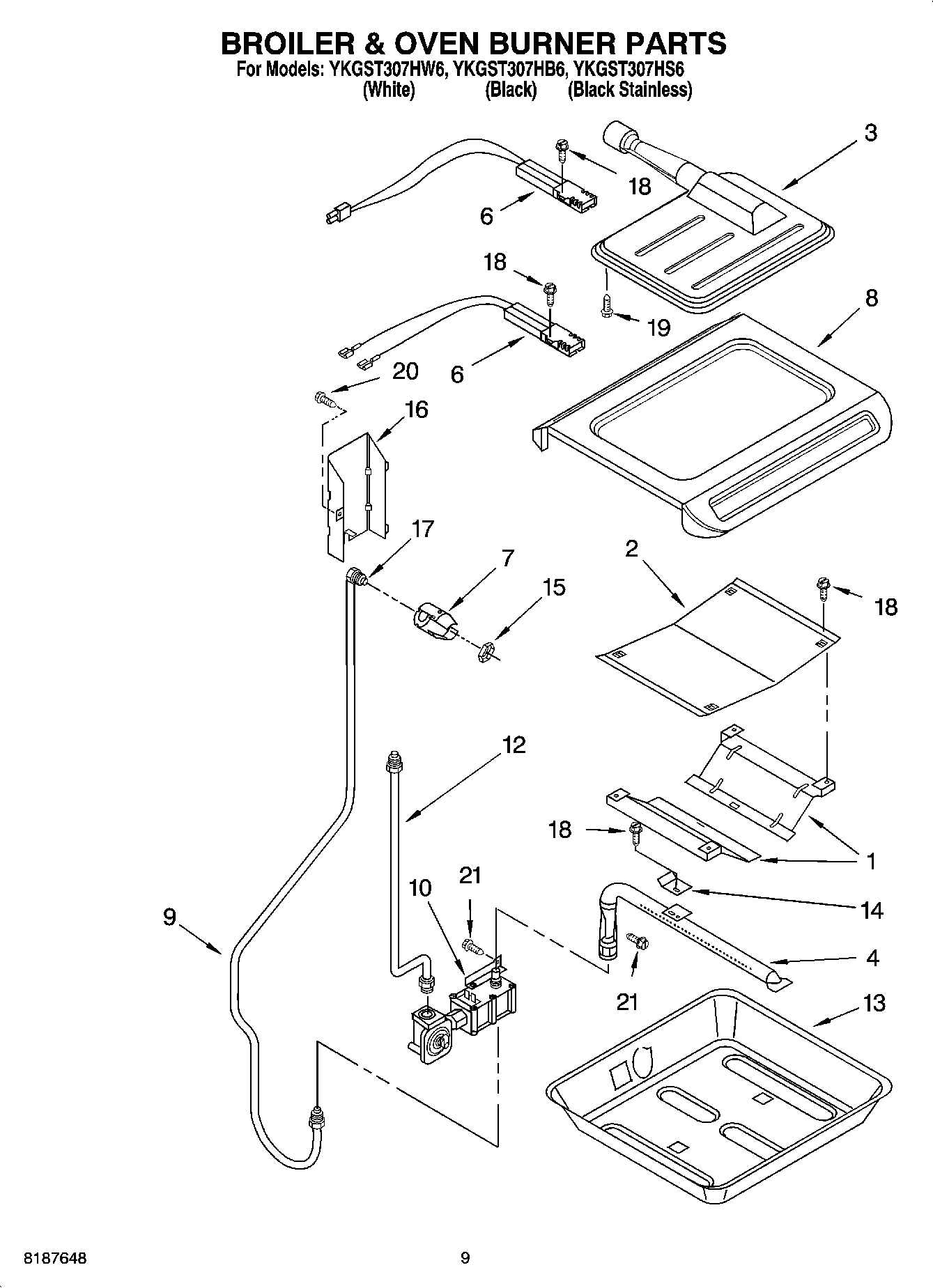

YKGST307HB6 06 – BROILER & OVEN BURNER PARTSadmin2025-04-26T11:10:20+00:00YKGST307HB6 06 – BROILER & OVEN BURNER PARTS
Products
| Position | Product |
|---|
| 1 | Shield, Oven (2) |
| 2 | Flame Shield, Bake |
| 3 | Burner, Broiler |
| 4 | Burner, Bake |
| 6 | WP9782065 Whirlpool Oven Igniter |
| 7 | Bracket, Broil Shooter |
| 8 | Pan, Oven Bottom |
| 9 | Tubing, Broil |
| 10 | WP9755424 Whirlpool Gas Valve |
| 12 | Tubing, Valve |
| 13 | Pan Support, Bake |
| 14 | Bracket, Bake |
| 15 | Nut 18 5/8 |
| 16 | Coverbox (Broiler Tubing) |
| 17 | Orifice 54 |
| 18 | Screw, 10 x 3/8 |
| 19 | Screw (4) 10 x 1/2 |
| 20 | WP4159387 Whirlpool Compactor Screw |
| 21 | WP489427 Whirlpool Refrigerator Screw |
