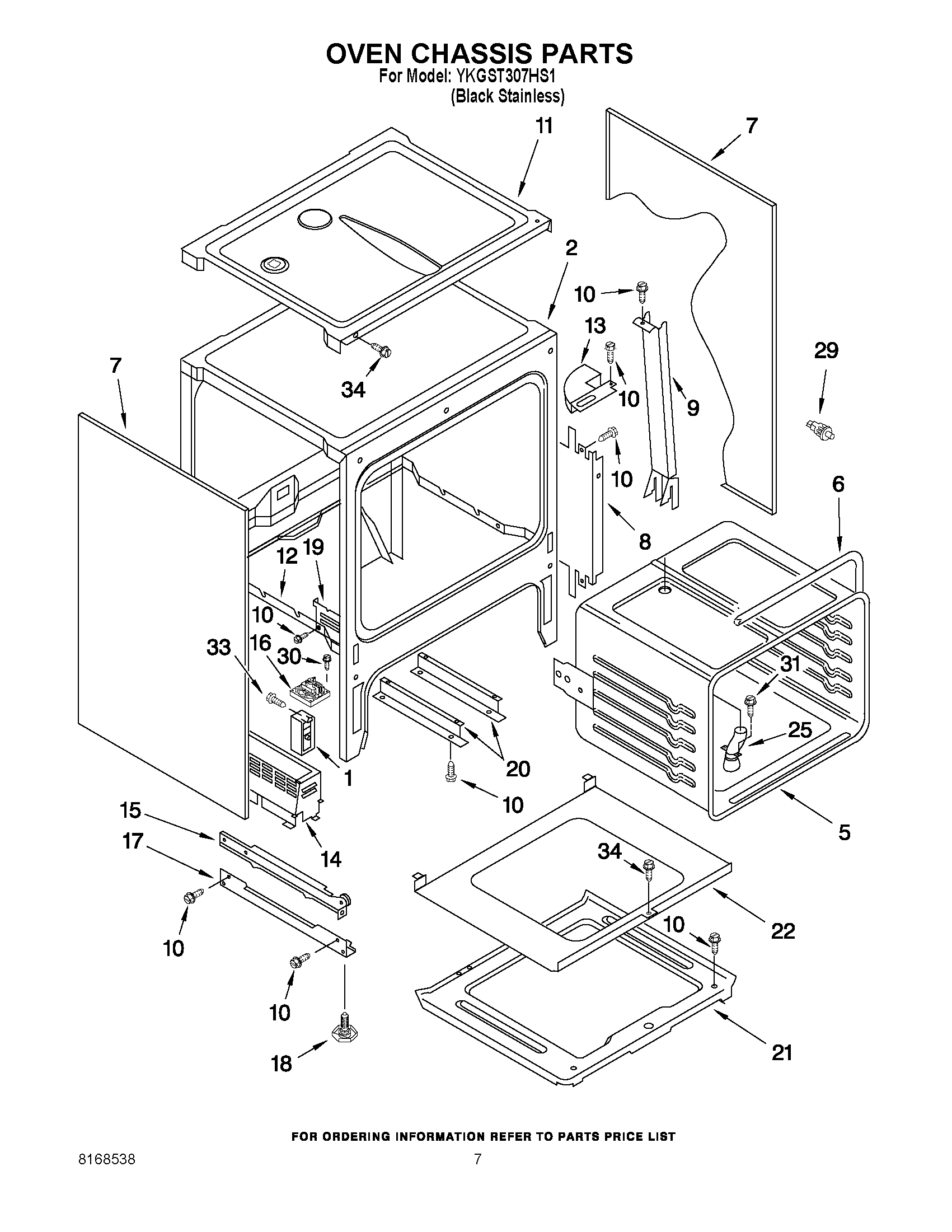

YKGST307HS1 05 – OVEN CHASSIS PARTS

Products

Position	Product
1	WP8053421 Whirlpool Oven Spark Module
2	Chassis, Front
5	Oven Liner
6	Gasket, Oven
7	Body, Side (Black)
8	Shield, Insulation
9	Duct, Side Fan
10	WP4159387 Whirlpool Compactor Screw
11	Burner Box
12	Retainer, Insulation
13	Duct, Top
14	Support, Fan
15	Rail, Drawer (Right)
15	Drawer Rail, Left
16	Motor, Fan
17	Bottom Rail (2)
18	WPW10058460 Whirlpool Appliance Levelling Leg
19	Hinge, Receiver (2)
20	Support Rail
21	Shield
22	Plate, Reflector
25	Vent Tube
29	Switch, Door
30	Screw, (3) No.8 x 1``
31	Screw, (2)
33	Screw
34	Screw, 10-16 x 1
