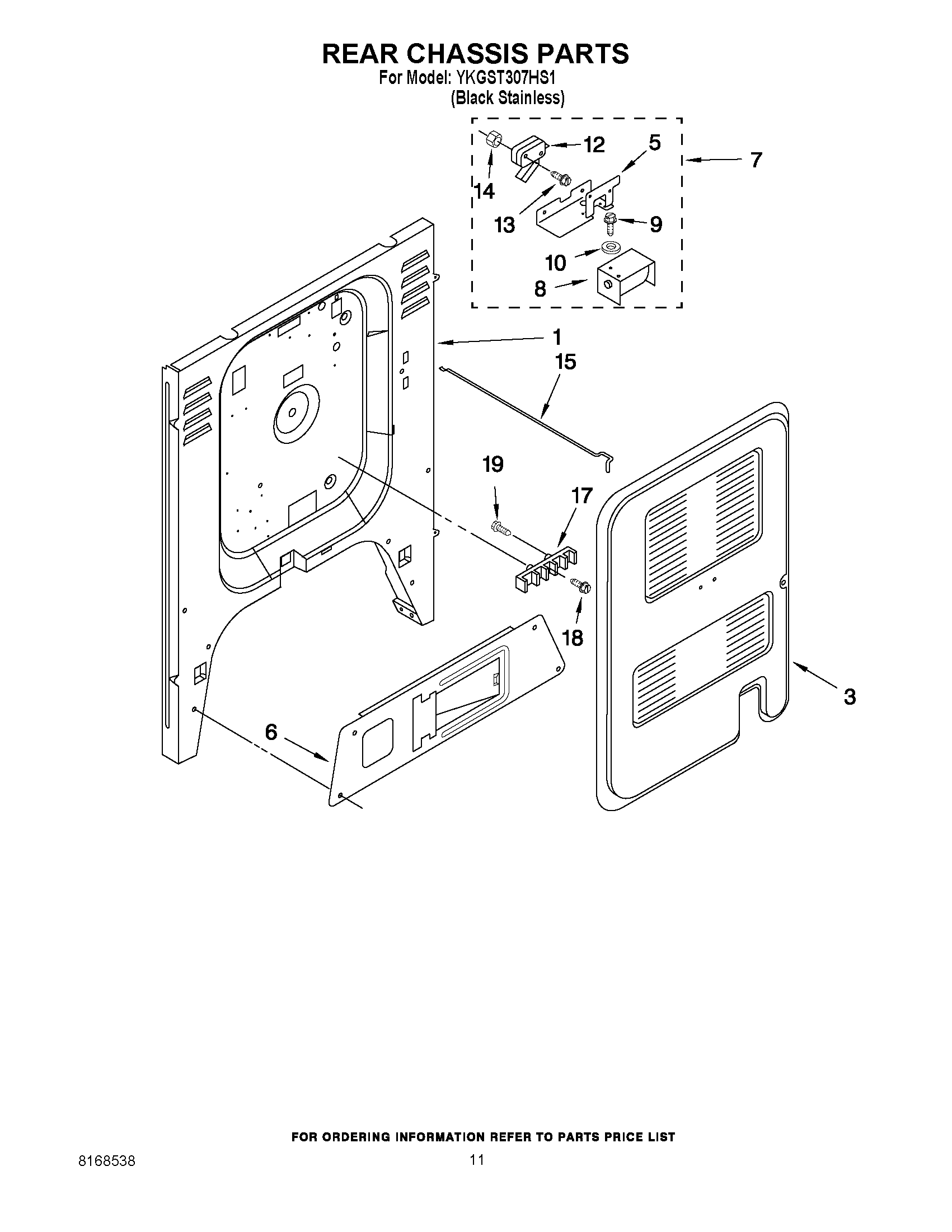

YKGST307HS1 08 – REAR CHASSIS PARTS

Products

Position	Product
1	Back panel, Chassis
3	Panel, Rear Cover
5	Bracket, Lock
6	Bracket, Regulator Valve
7	Oven Lock Assembly
8	Solenoid
9	Screw (2) 10-32 x 5/16
10	Washer (2)
12	Switch, Interlock
13	Screw, (2)
14	Nut (2)
15	Rod, Lock
17	WP8203546 Whirlpool Terminal Block
18	Screw, (2) 10-16 x 1
19	340184 Whirlpool Screw
