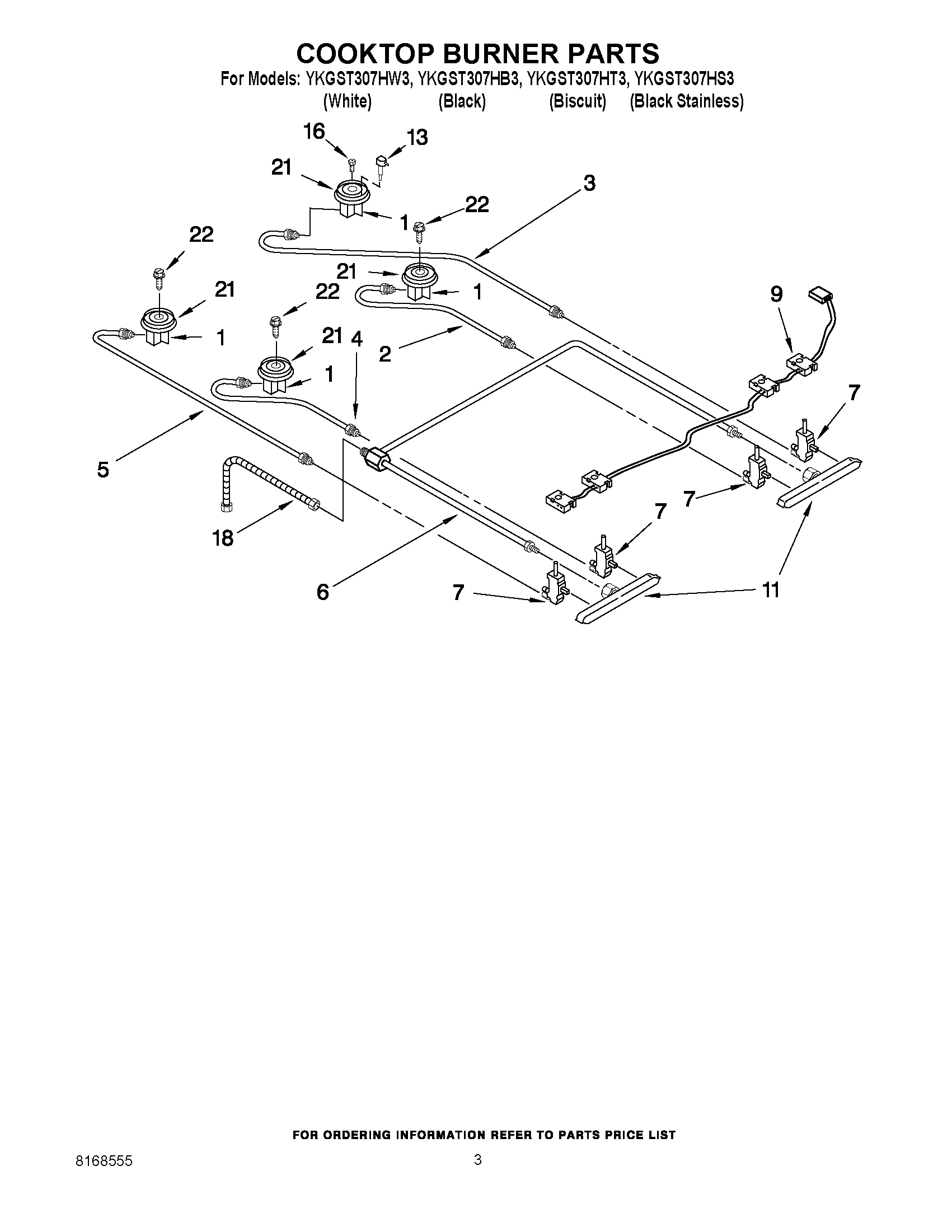

YKGST307HS3 02 – COOKTOP BURNER PARTSadmin2025-04-26T11:11:12+00:00YKGST307HS3 02 – COOKTOP BURNER PARTS
Products
| Position | Product |
|---|
| 1 | Burner Base W/Orifices (14K LF) |
| 1 | Burner Base w/Orifice (Large (2)) |
| 1 | Orifice Holder (Includes Orific & Ignitor) (Auxi) |
| 2 | Tubing, Burner (RF) |
| 3 | Tubing, Burner (RR) |
| 4 | Tubing, Burner (LF) |
| 5 | Tubing, Burner (LR) |
| 6 | Tubing, Manifold |
| 7 | Bolt (Gas Valve) |
| 7 | Valve, Burner Small (2) |
| 7 | Valve, Burner Large (2) |
| 7 | Valve, Burner (14K LF Plain Stem) |
| 9 | Spark Switch & Harness Assembly |
| 11 | Manifold |
| 13 | WP9754215 Whirlpool Surface Igniter |
| 16 | WP9753928 Whirlpool Orifice Assembly |
| 16 | WP9753929 Whirlpool Orifice |
| 16 | WP9753930 Whirlpool Orifice |
| 18 | Tubing, Flex |
| 21 | WP4455981 Whirlpool Burner Head |
| 21 | WP4455979 Whirlpool Range Small Burner Head |
| 21 | Head, Burner (14K - LF) |
| 22 | WPW10067840 Whirlpool Screw |
