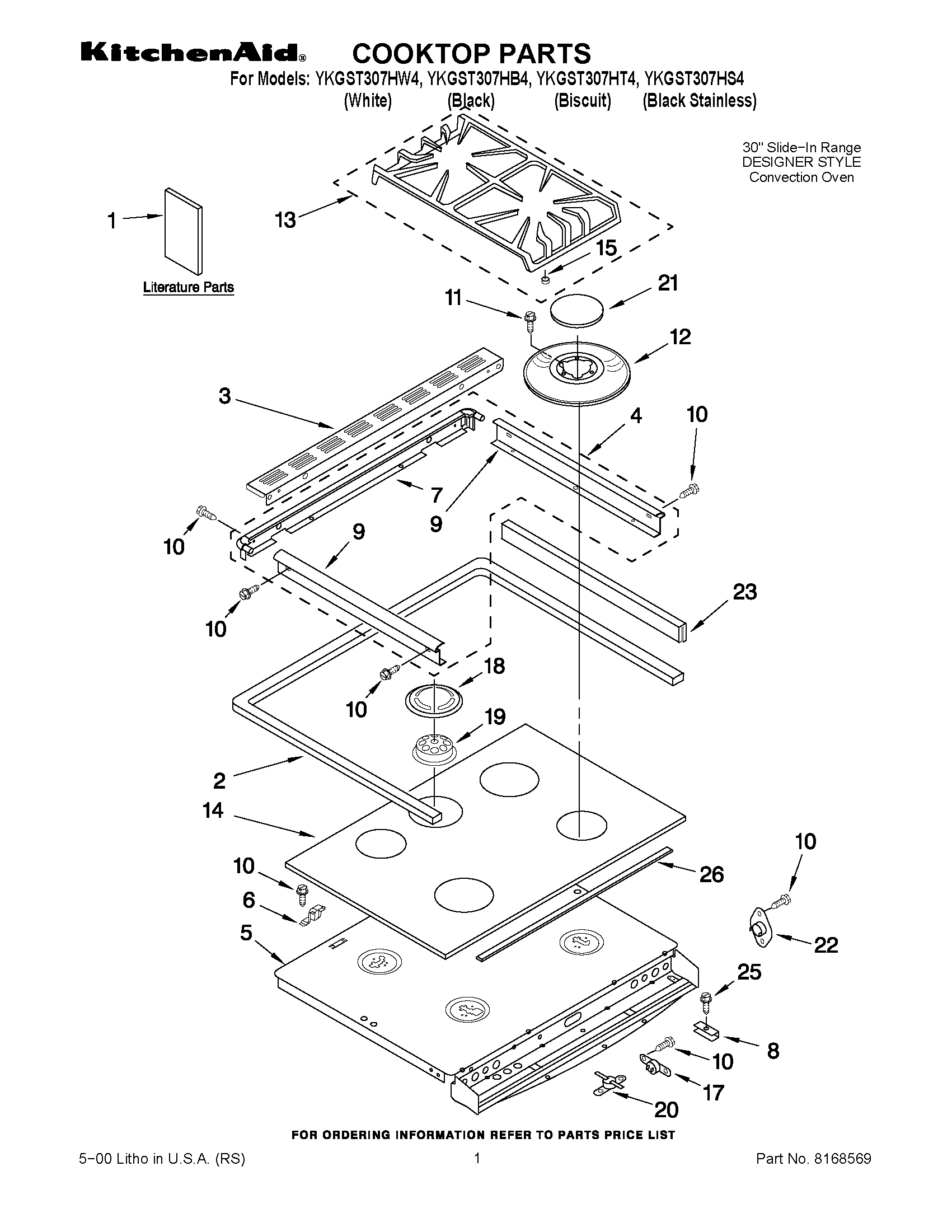

YKGST307HS4 01 – COOKTOP PARTS

YKGST307HS4 01 – COOKTOP PARTS

Written by

in

YKGST307HS4 01 – COOKTOP PARTS

Products

PositionProduct
1WPL LIT9780959
1Literature Parts (LP Installation Instructions)
1Installation Instructions (French)
1SMART & EASY GUIDE (FRENCH)
1Installation Instructions (English)
1Use & Care Guide (English)
1Use & Care Guide (French)
1Literature Parts (Tech Sheet)
1Literature Parts (Wiring Diagram)
1WPL LIT9752775
1Literature Parts (Smart & Easy Guide)
2Gasket, Cooktop
3Vent, Rear (White)
3Vent, Rear (Biscuit)
3Vent, Rear (Black)
4Frame, Cooktop (Biscuit)
4Frame, Cooktop (White)
4Frame, Cooktop (Black)
5Support, Burner
6Washer, Pivot
6Bracket, Pivot
7Trim, Back (Incl. End Caps) (Biscuit)
7Trim, Rear Frame (Incls. End Caps) (Black)
7Trim, Rear (Includes End Caps) (White)
8Support Clip (4)
9Trim, Side Frame (White)
9Trim, Side Frame (Black)
9Trim, Side (Biscuit)
10WP4159387 Whirlpool Compactor Screw
11WP3368921 Whirlpool Screw
12Bezel, Burner (Mouse Gray) (14K LF)
12(Bezel, Burner (Black)) (6K RF-LR)
12WPL 9753602GS
12Bezel, Bu
12(Bezel, Burner (Black)) (14K LF)
12Bezel, Burner (Mouse Gray) (6K RF-LR)
13WPL 9753616GS
13WPL 9753616GB
14Cooktop, Glass (Biscuit)
14Cooktop, Glass (Black)
14Cooktop, Glass (Opaque White)
15814323 Whirlpool Range Burner Grate Foot Pads (5 Pack)
17Thermostat SPST (205)
18WPL 9751271GW
18WPL 9751271GC
18WPL 9751271GB
19WPL 9751366
20WP9759944 Whirlpool Thermostat
21Cap, Burner 6K (1) (Gray)
21WP3191904 Whirlpool Burner Cap
21WP3191905 Whirlpool Burner Cap
21WPL 9753939GB
21WP3191898 Whirlpool Surface Burner Cap Black
21WPL 9753939GS
22WPL 9752006
23Seal, Rubber
25Screw, 10-16 x 1
26Head, Burner (Pad, Burner Ring)
