YKGST307HT0 04 – DOOR AND DRAWER PARTS
Written by
in

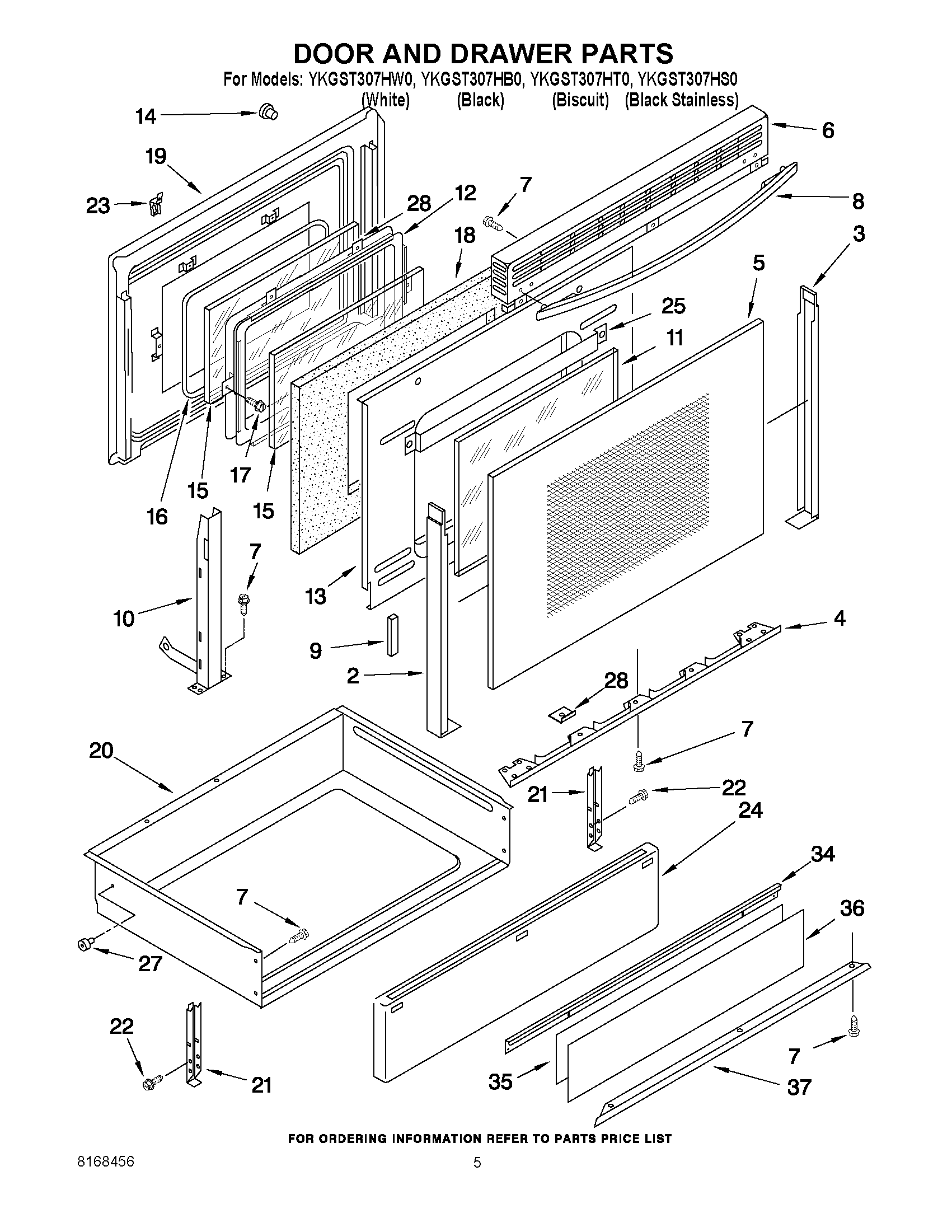

YKGST307HT0 04 – DOOR AND DRAWER PARTS
Products
Position
Product
2
Trim, Door-Left (Black)
2
Trim, Door-Left (Biscuit)
2
Trim, Door-Left (White)
3
Trim, Door-Right (White)
3
Trim, Door-Right (Black)
3
Trim, Door-Right (Biscuit)
4
Trim, Door Bottom (Black)
4
Trim, Door Bottom (Biscuit)
4
Trim, Door Bottom (White)
5
Glass, Door (Black)
5
Glass, Door (Black)
5
Glass, Door Front (White)
5
Glass, Door Front (Biscuit)
6
Vent, Door (Black)
6
Vent, Door (White)
6
Vent, Door (Biscuit)
7
Vent, Door (Gasket, Vent)
7
Vent, Door (Seal, Door Vent Side)
7
WP4159387 Whirlpool Compactor Screw
8
Handle, Door (Biscuit)
8
Handle, Door (Black)
8
Handle, Door (White)
9
Gasket, Door Glass
10
WP9782033 Whirlpool Door Hinge
11
Baffle, Glass
12
Frame, Window
13
Shield, Door
14
238614 Whirlpool Bumper Hinge
15
WP9781593 Whirlpool Door Glass
16
WP9755177 Whirlpool Wind Gasket
17
Screw
18
Insulation, Door
19
Liner, Door
20
Drawer & Roller
20
Drawer & Roller
21
Bracket, Drawer
22
Screw (4) 10 x 1/2
23
Retainer, Glass
24
Front, Drawer (Black)
24
Front, Drawer (Biscuit)
24
Front, Drawer (White)
24
Front, Drawer (Black Stainless)
25
Channel, Heat
27
814229 Whirlpool Primary Roller
27
WP90296 Whirlpool Clip
28
Spacer, Door (8)
34
WPL 9750614PB
35
WPL 9753329
36
WPL 9753293
37
WPL 9750613PB
←
