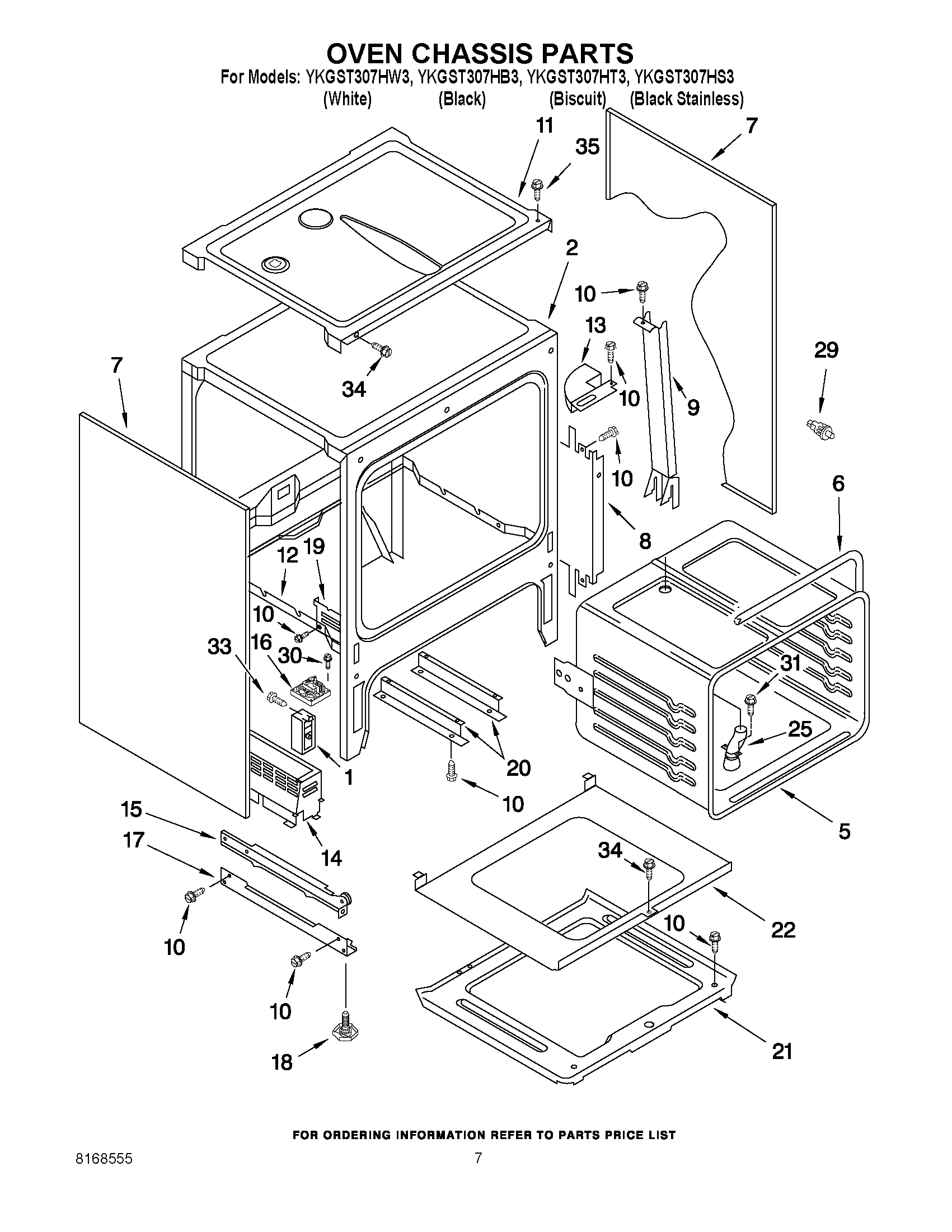

YKGST307HT3 05 – OVEN CHASSIS PARTS

YKGST307HT3 05 – OVEN CHASSIS PARTS

Written by

in

YKGST307HT3 05 – OVEN CHASSIS PARTS

Products

PositionProduct
1WP8053421 Whirlpool Oven Spark Module
2Chassis, Front
5Oven Liner
6Gasket, Oven
7Body, Side (Black)
7Body, Side (Biscuit)
7Body, Side (White)
8Shield, Insulation
9Duct, Side Fan
10WP4159387 Whirlpool Compactor Screw
11Burner Box
12Retainer, Insulation
13Duct, Top
14Support, Fan
15Drawer Rail, Left
15Rail, Drawer (Right)
16Motor, Fan
17Bottom Rail (2)
18WPW10058460 Whirlpool Appliance Levelling Leg
19Hinge, Receiver (2)
20Support Rail
21Shield
22Plate, Reflector
25Vent Tube
29Switch, Door
30Screw, (3) No.8 x 1“
31Screw, (2)
33Screw
34Screw, 10-16 x 1
