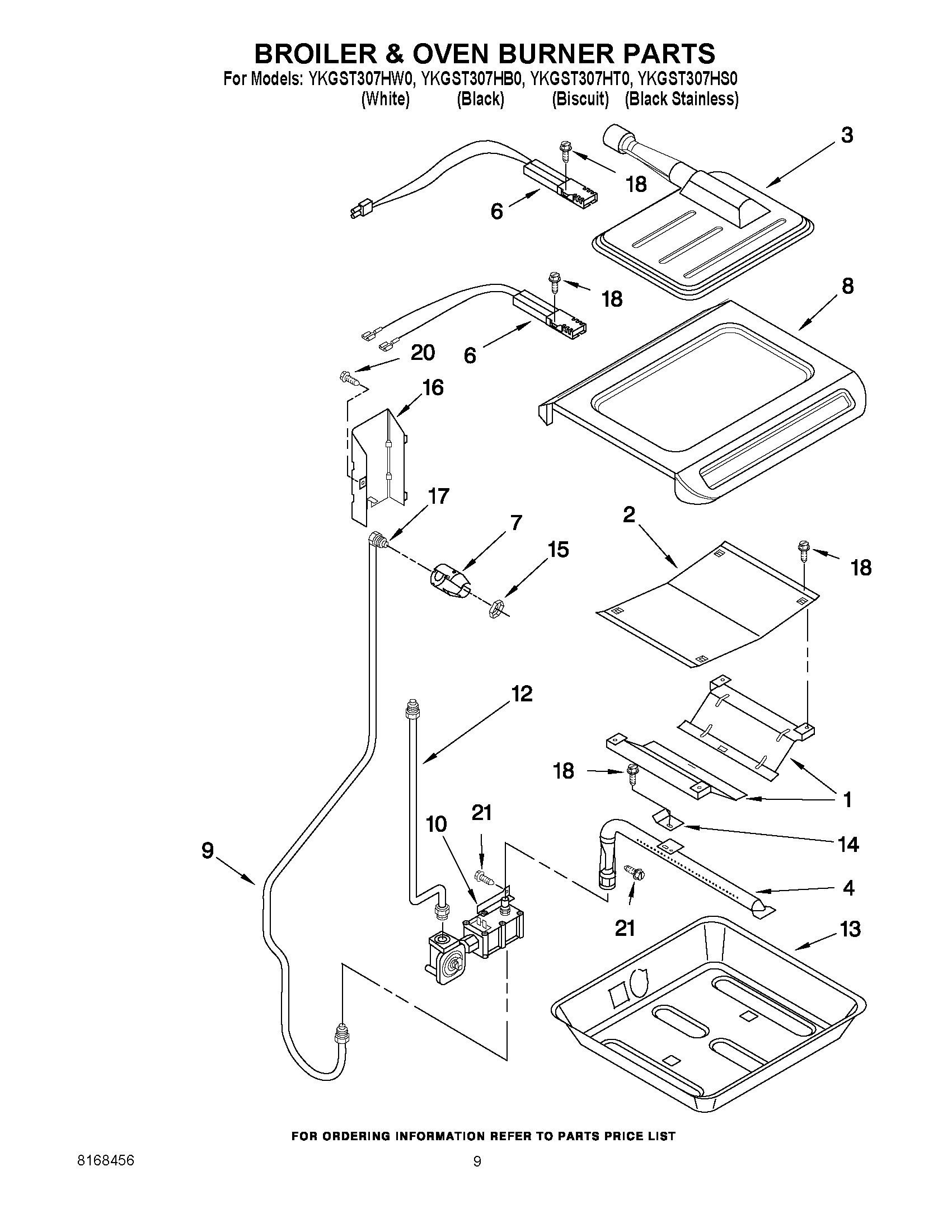

YKGST307HW0 06 – BROILER & OVEN BURNER PARTS

Products

Position	Product
1	Shield, Oven (2)
2	Flame Shield, Bake
3	Burner, Broiler
4	Burner, Bake
6	WP9782065 Whirlpool Oven Igniter
7	Bracket, Broil Shooter
8	Pan, Oven Bottom
9	Tubing, Broil
10	WP9755424 Whirlpool Gas Valve
12	Tubing, Valve
13	Pan Support, Bake
14	Bracket, Bake
15	Nut 18 5/8
16	Coverbox (Broiler Tubing)
17	Orifice 54
18	Screw, 10 x 3/8
19	Screw, 10-32 x 1/2
20	WP4159387 Whirlpool Compactor Screw
21	Screw. 1/4-20 x 1/2 (4)
