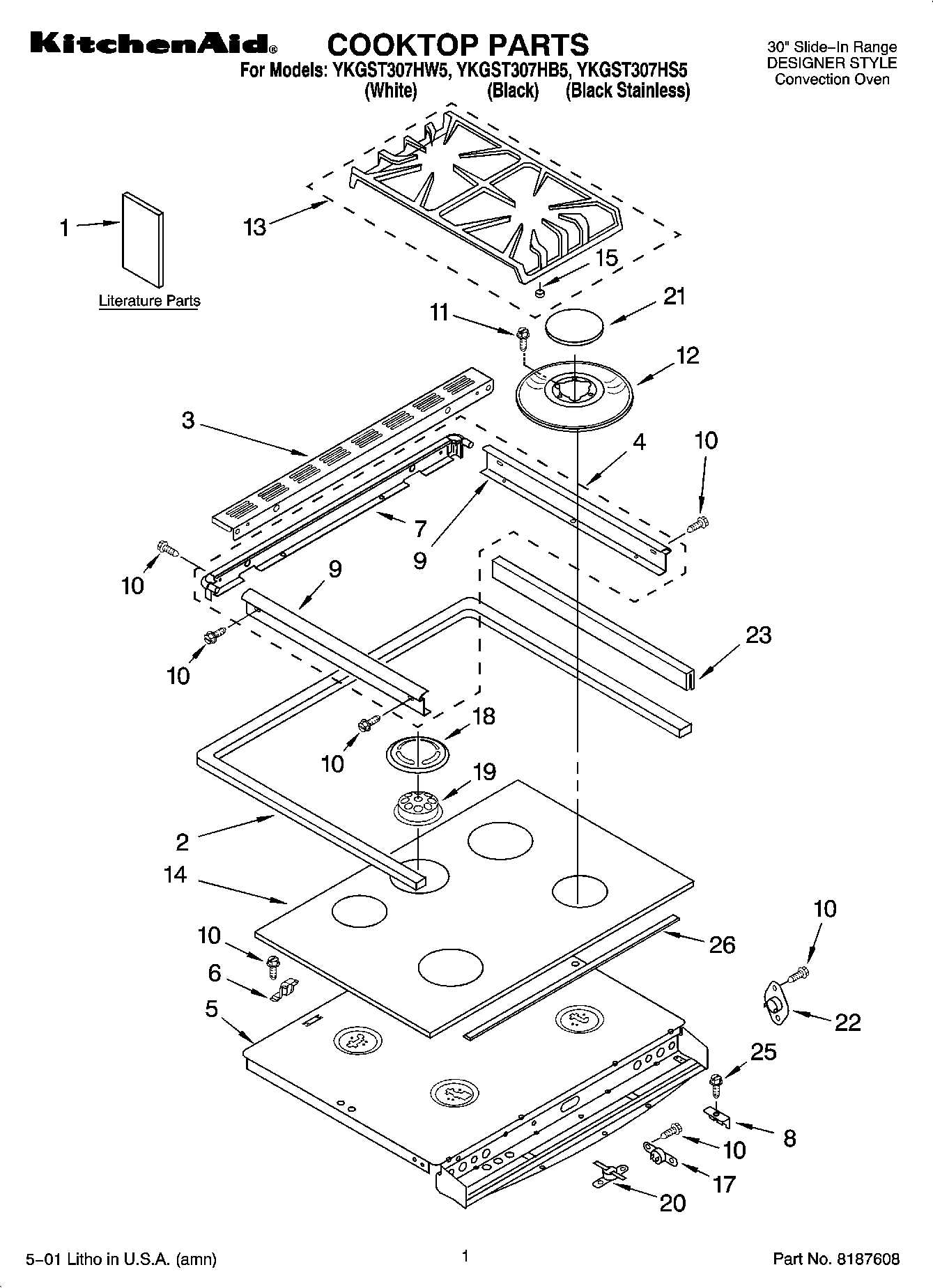

YKGST307HW5 01 – COOKTOP PARTS

Products

Position	Product
1	WPL LIT9752775
1	Literature Parts (Wiring Diagram)
1	Literature Parts (Tech Sheet)
1	Use & Care Guide (French)
1	Installation Instructions (French)
1	Installation Instructions (English)
1	SMART & EASY GUIDE (FRENCH)
1	Use & Care Guide (English)
1	Literature Parts (LP Installation Instructions)
1	Literature Parts (Smart & Easy Guide)
1	LITERATURE PARTS
2	Gasket, Cooktop
3	Vent, Rear (White)
3	Vent, Rear (Black)
4	Frame, Cooktop (White)
4	Frame, Cooktop (Black)
5	Support, Burner
6	Washer, Pivot
6	Bracket, Pivot
7	Trim, Rear Frame (Incls. End Caps) (Black)
7	Trim, Rear (Includes End Caps) (White)
8	Support Clips (4)
9	Trim, Side Frame (Black)
9	Trim, Side Frame (White)
10	WP4159387 Whirlpool Compactor Screw
11	WP3368921 Whirlpool Screw
12	(Bezel, Burner (Black)) (14K LF)
12	WPL 9753602GS
12	Bezel, Burner (Mouse Gray) (14K LF)
12	(Bezel, Burner (Black)) (6K RF-LR)
12	Bezel, Burner (Mouse Gray) (6K RF-LR)
12	Bezel, Bu
13	WPL 9753616GS
13	WPL 9753616GB
14	Cooktop, Glass (Black)
14	Cooktop, Glass (Opaque White)
15	814323 Whirlpool Range Burner Grate Foot Pads (5 Pack)
17	Thermostat SPST (205)
18	WPL 9751271GW
18	WPL 9751271GB
19	WPL 9751366
20	WP9759944 Whirlpool Thermostat
21	WP3191905 Whirlpool Burner Cap
21	WP3191904 Whirlpool Burner Cap
21	WPL 9753939GS
21	WPL 9753939GB
21	Cap, Burner 6K (1) (Gray)
21	WP3191898 Whirlpool Surface Burner Cap Black
22	WPL 9752006
23	Seal, Rubber
25	Screw, 10-16 x 1
26	Head, Burner (Pad, Burner Ring)
