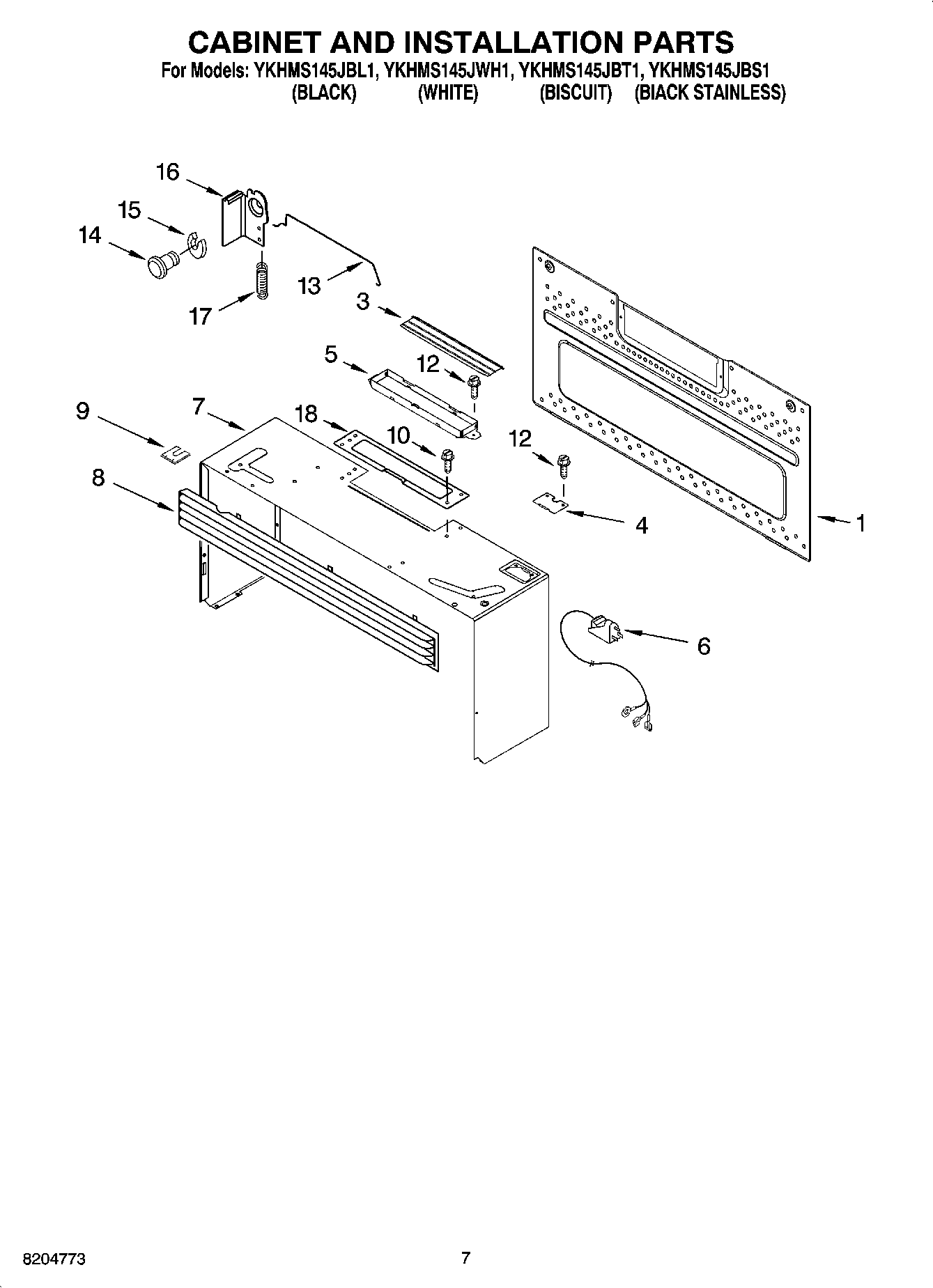

YKHMS145JBL1 06 – CABINET AND INSTALLATION PARTS

Products

Position	Product
	WP8169704 Whirlpool Screw
	Upper Cab Template
	Wall Template
	Rack
	Miscellaneous
	Hardware, Installation
1	WP8206174 Whirlpool Microwave Mounting Bracket
3	W10843943 Whirlpool Microwave Vent Damper
4	Lid, Power Cord
6	8169432 Whirlpool Microwave Power Cord
7	Case, Outer (Black)
7	Case, Outer (White)
7	Case, Outer (Biscuit)
8	8184608 Whirlpool Microwave Oven Vent Grille
8	Grille, Vent (Biscuit)
8	Grille, Vent (White)
8	Grille, Vent (Stainless)
9	8206334 Whirlpool Microwave Mounting Bracket
10	WP4393834 Whirlpool Microwave Screw
12	Screw
13	Rod
14	Latch, Pivot
15	E-Ring
16	Catch
17	Spring
18	Plate, Damper
