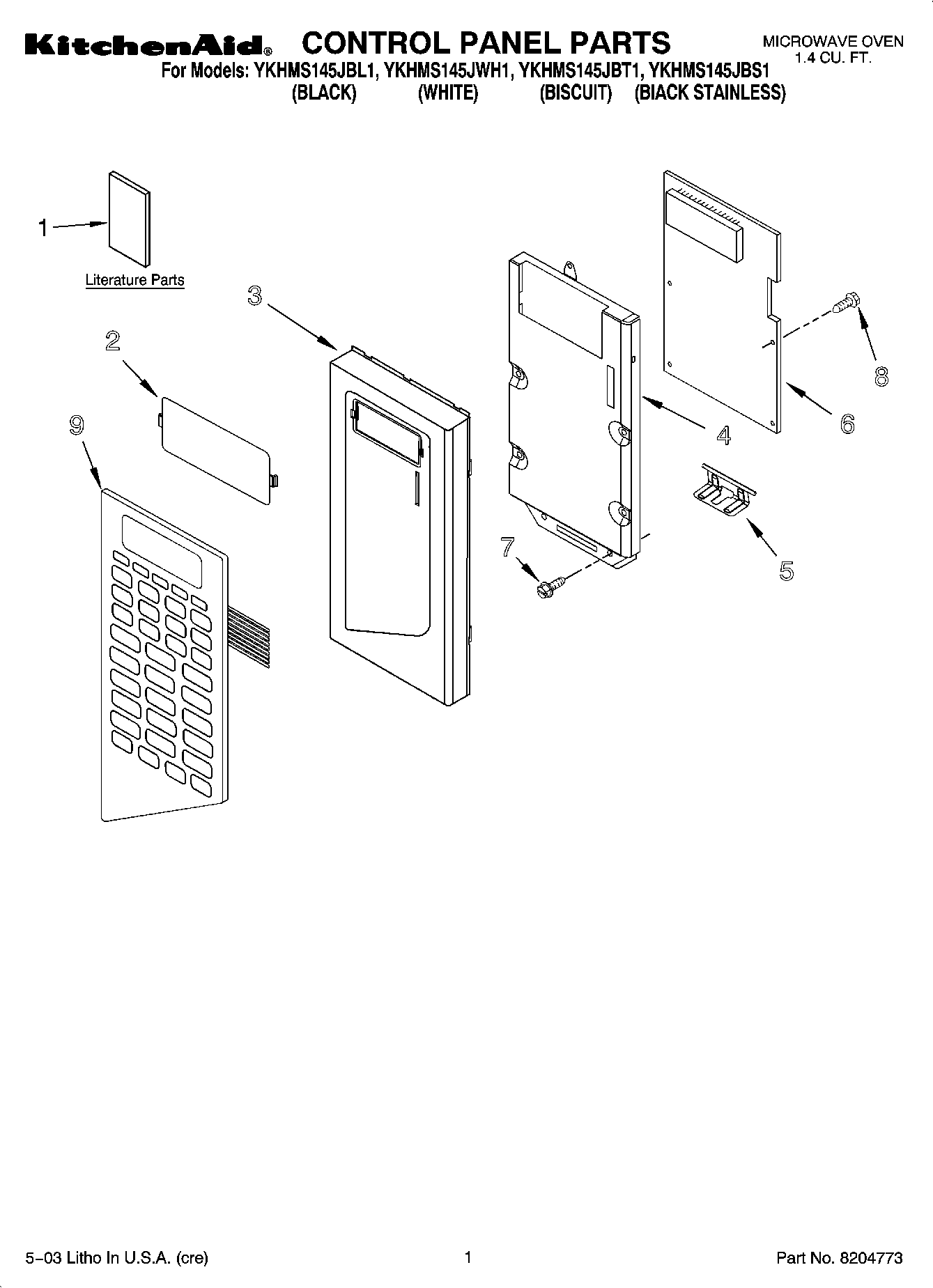

YKHMS145JBT1 01 – CONTROL PANEL PARTS

Products

Position	Product
1	Cook Guide Label (English)
1	Literature Parts (Tech Sheet)
1	Literature Parts (U & C Guide)
1	Cook Guide Label (French)
1	Literature (Instructions, Installation)
2	Lens
3	Panel, Control (Stainless)
3	Panel, Control (Biscuit)
3	Panel, Control (White)
3	Panel, Control (Black)
4	Bracket, Control
5	Plate, Hinge
6	PCB Assembly
7	Screw
8	Screw
9	Switch, Membrane (Biscuit)
9	Switch, Membrane (Black)
9	Switch, Membrane (White)
