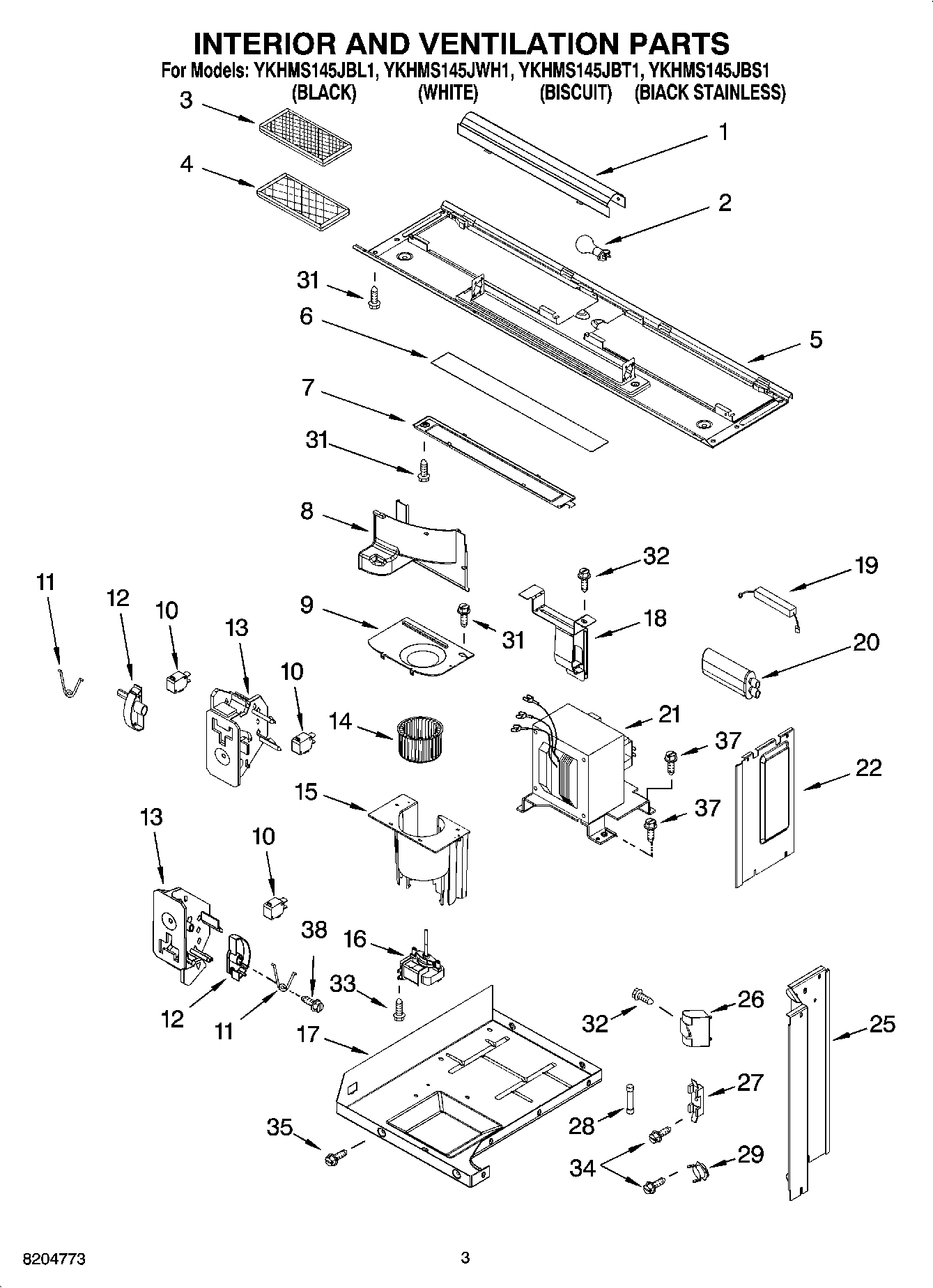

YKHMS145JBT1 03 – INTERIOR AND VENTILATION PARTSadmin2025-04-26T11:11:13+00:00YKHMS145JBT1 03 – INTERIOR AND VENTILATION PARTS
Products
| Position | Product |
|---|
| 1 | Reflector, Lamp |
| 2 | 8204670 Whirlpool Microwave Halogen Lamp 10W 12V |
| 3 | 6800 Whirlpool Charcoal Filter Kit |
| 4 | 6802A Whirlpool Grease Filter |
| 5 | Plate, Bottom |
| 6 | Glass, Lamp |
| 7 | Holder, Glass |
| 8 | Guide, Air (Magnetron) |
| 9 | Cover, Fan |
| 10 | Switch, Micro (3) |
| 11 | Spring, Interlock |
| 12 | Plate, Cam |
| 13 | 8205572 Whirlpool Microwave Interlock |
| 14 | Wheel, Fan |
| 15 | Housing, Fan |
| 16 | Motor, Fan |
| 17 | Chassis |
| 18 | Holder, Capacitor |
| 19 | W11256462 Whirlpool Microwave Diode |
| 20 | Capacitor, H.V. |
| 21 | Transformer, H.V. |
| 22 | Plate, Side (R) |
| 25 | Plate, Side (L) |
| 26 | Capacitor |
| 27 | Holder, Fuse |
| 28 | FUSE-THRML |
| 29 | Thermostat Open temp: 113~ Fahrenheit Close temp: 140~ Fahrenheit |
| 32 | W11380570 Whirlpool Microwave Screw |
| 33 | Screw |
| 34 | Screw |
| 35 | Screw |
| 37 | Screw |
| 38 | 8169479 Whirlpool Microwave Screw |
