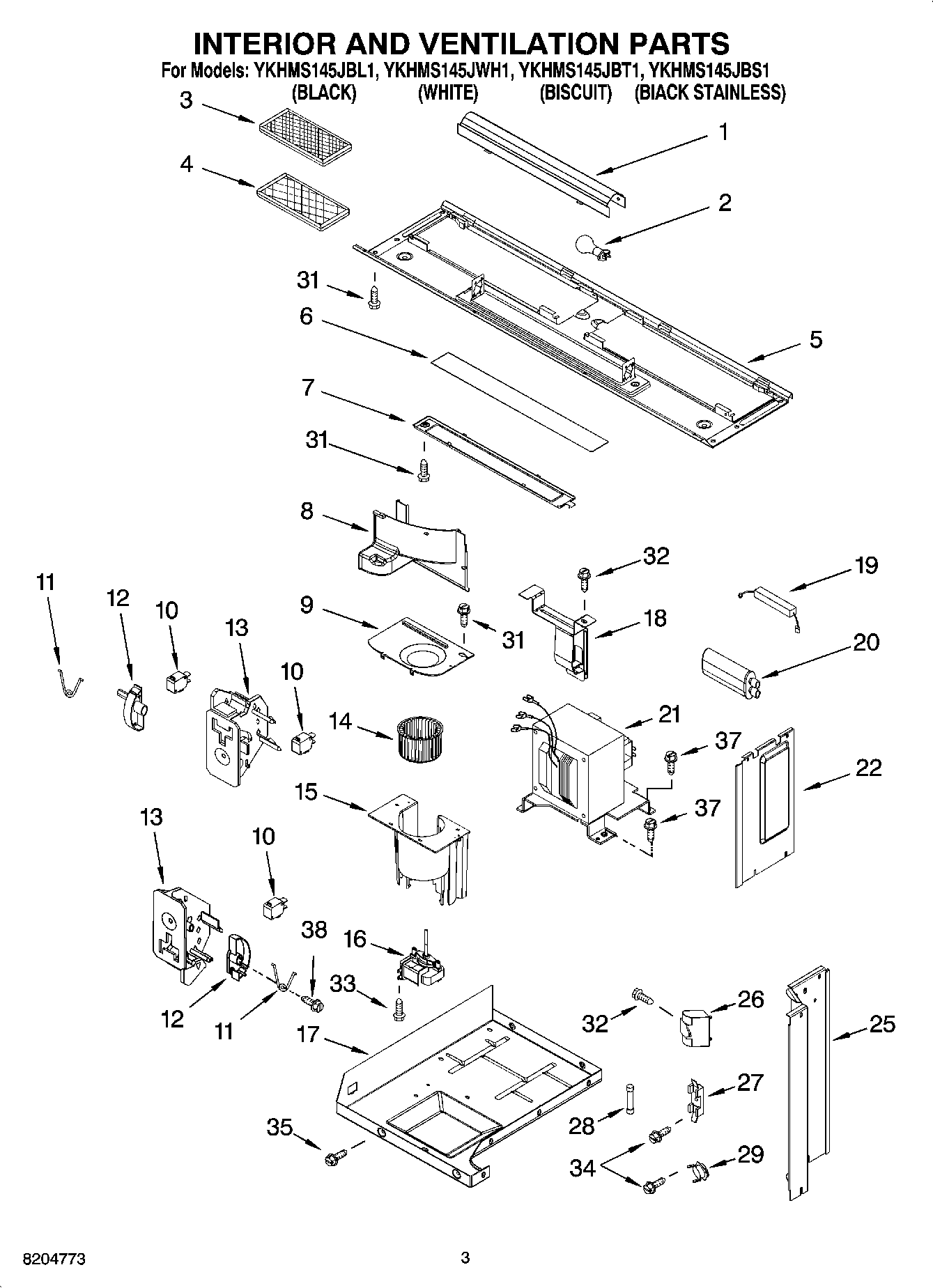

YKHMS145JWH1 03 – INTERIOR AND VENTILATION PARTS

Products

PositionProduct
1Reflector, Lamp
28204670 Whirlpool Microwave Halogen Lamp 10W 12V
36800 Whirlpool Charcoal Filter Kit
46802A Whirlpool Grease Filter
5Plate, Bottom
6Glass, Lamp
7Holder, Glass
8Guide, Air (Magnetron)
9Cover, Fan
10Switch, Micro (3)
11Spring, Interlock
12Plate, Cam
138205572 Whirlpool Microwave Interlock
14Wheel, Fan
15Housing, Fan
16Motor, Fan
17Chassis
18Holder, Capacitor
19W11256462 Whirlpool Microwave Diode
20Capacitor, H.V.
21Transformer, H.V.
22Plate, Side (R)
25Plate, Side (L)
26Capacitor
27Holder, Fuse
28FUSE-THRML
29Thermostat Open temp: 113~ Fahrenheit Close temp: 140~ Fahrenheit
32W11380570 Whirlpool Microwave Screw
33Screw
34Screw
35Screw
37Screw
388169479 Whirlpool Microwave Screw
