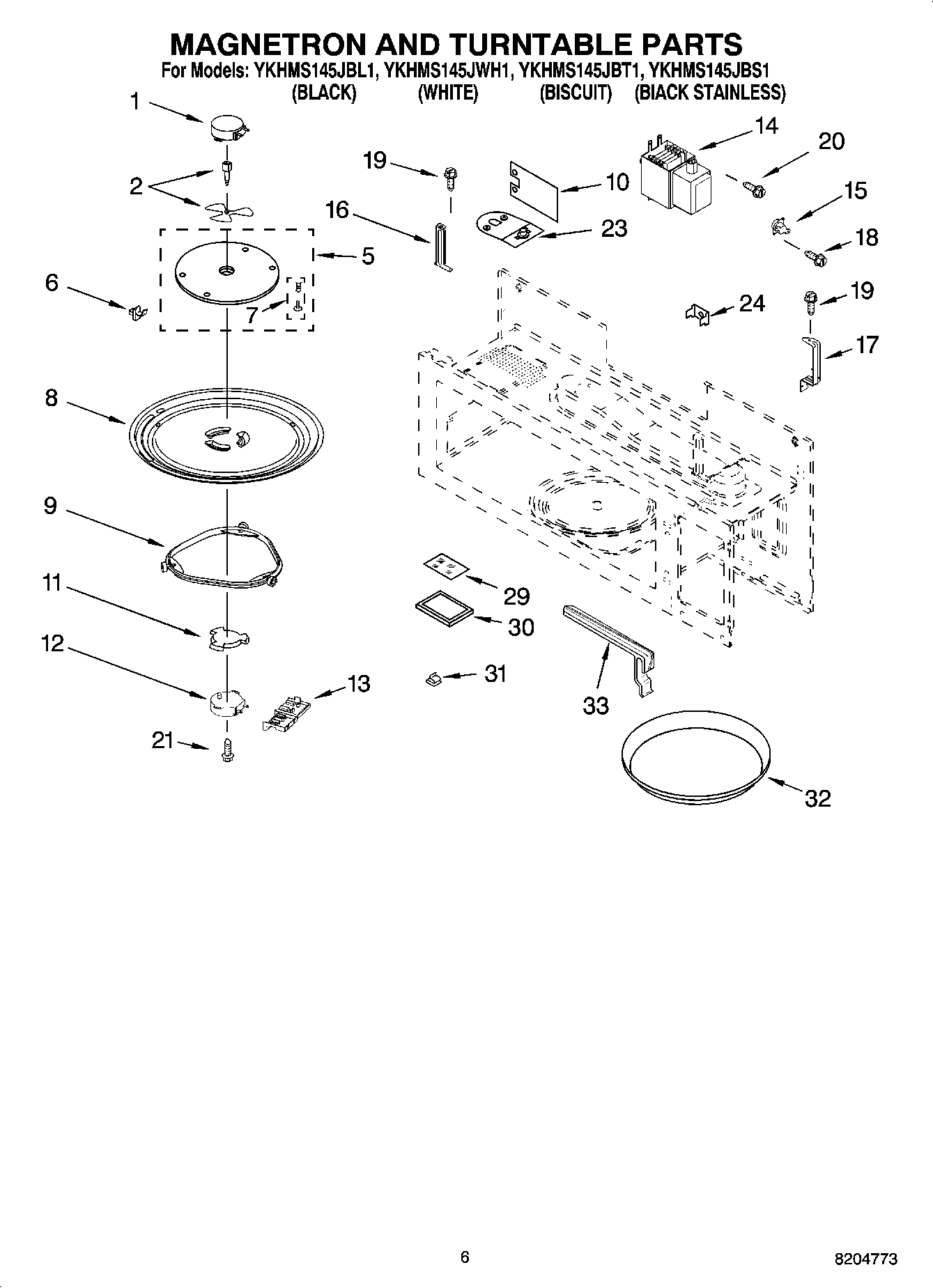

YKHMS145JWH1 05 – MAGNETRON AND TURNTABLE PARTS

YKHMS145JWH1 05 – MAGNETRON AND TURNTABLE PARTS

Written by

in

YKHMS145JWH1 05 – MAGNETRON AND TURNTABLE PARTS

Products

PositionProduct
1Motor, Stirrer
2Stirrer Shaft/Blade
5Cover, Inlet
6W10315274 Whirlpool Microwave Meal Rack
7Nails/Bushings (4 of each)
84393799 Whirlpool Microwave Glass Tray
9W11252182 Whirlpool Glass Tray Support
10WP8184485 Whirlpool Microwave Shield
11W10435116 Whirlpool Microwave Turntable Roller Drive Coupling
12W10642989 Whirlpool Microwave Oven Turntable Motor
13Cover, Terminal
14W10245183 Whirlpool Microwave Magnetron
15Thermostat
16Holder, Connector (L)
17Holder, Connector (R)
18Screw
19Screw
20WP8181660 Whirlpool Screw
214393832 Whirlpool Microwave Screw
23Thermostat And Bracket
24Bracket, Support
29Glass, Lamp
30Frame, Glass
31Spring
32W10748097 Whirlpool Microwave Crisp Pan
33W10851464 Whirlpool Microwave Handle Panel
