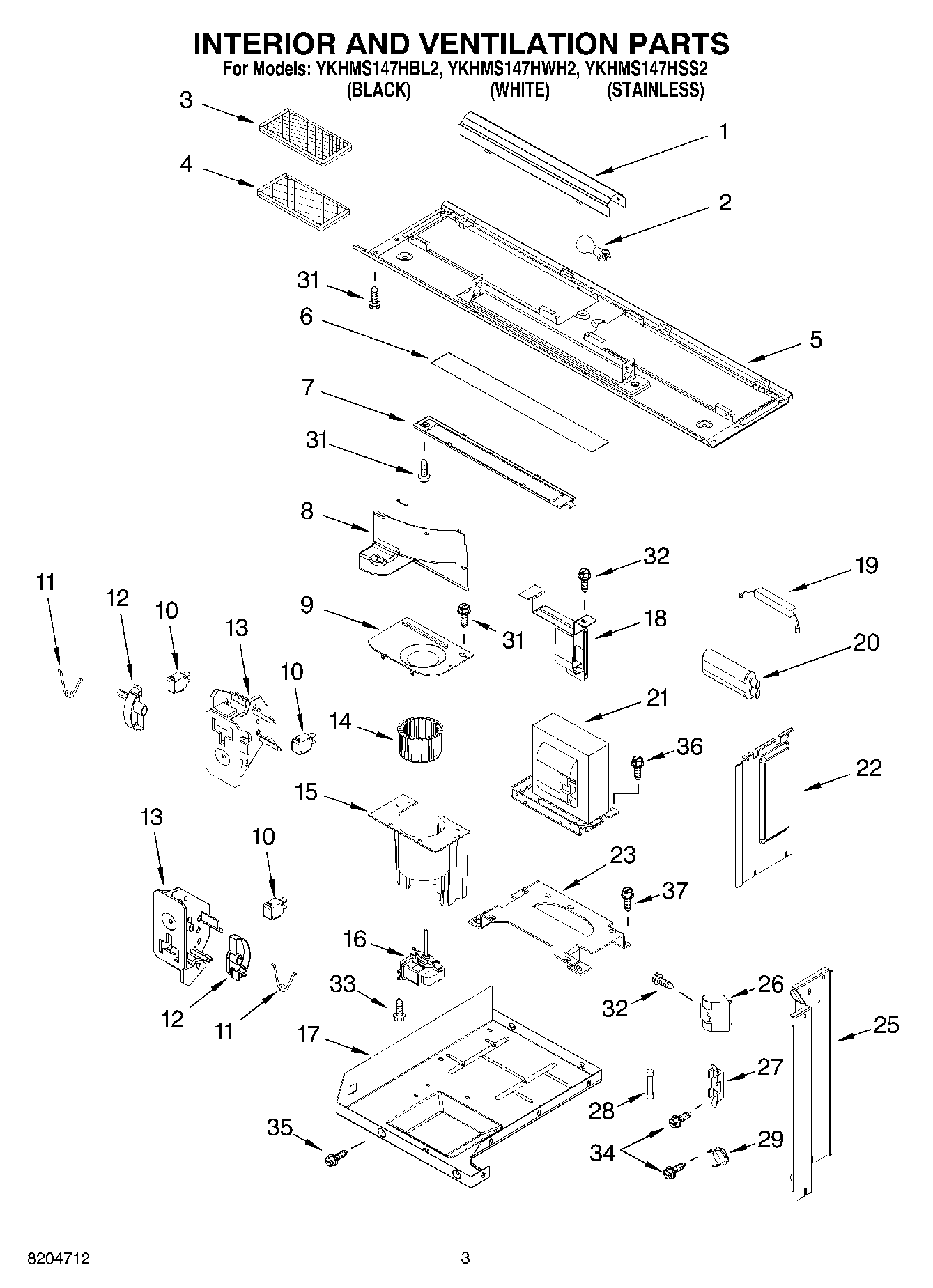

YKHMS147HWH2 03 – INTERIOR AND VENTILATION PARTS
Written by
in
YKHMS147HWH2 03 – INTERIOR AND VENTILATION PARTS
Products
Position
Product
1
Reflector, Lamp
2
8204670 Whirlpool Microwave Halogen Lamp 10W 12V
3
6800 Whirlpool Charcoal Filter Kit
4
6802A Whirlpool Grease Filter
5
Plate, Bottom
6
Glass, Lamp
7
Holder, Glass
8
Guide, Air (Magnetron)
9
Cover, Fan
10
Switch, Micro (3)
11
Spring, Interlock
12
Plate, Cam
13
8205572 Whirlpool Microwave Interlock
14
Wheel, Fan
15
Housing, Fan
16
Motor, Fan
17
Chassis
18
Holder, Capacitor
19
W11256462 Whirlpool Microwave Diode
20
8206562 Whirlpool Microwave Capacitor MG
21
Transformer, H.V.
22
Plate, Side (R)
23
Bracket, Transformer
25
Plate, Side (L)
26
Capacitor
27
Holder, Fuse
28
FUSE-THRML
29
Thermostat
32
W11380570 Whirlpool Microwave Screw
33
Screw
34
Screw
35
Screw
36
4393836 Whirlpool Microwave Screw
37
Screw
←
