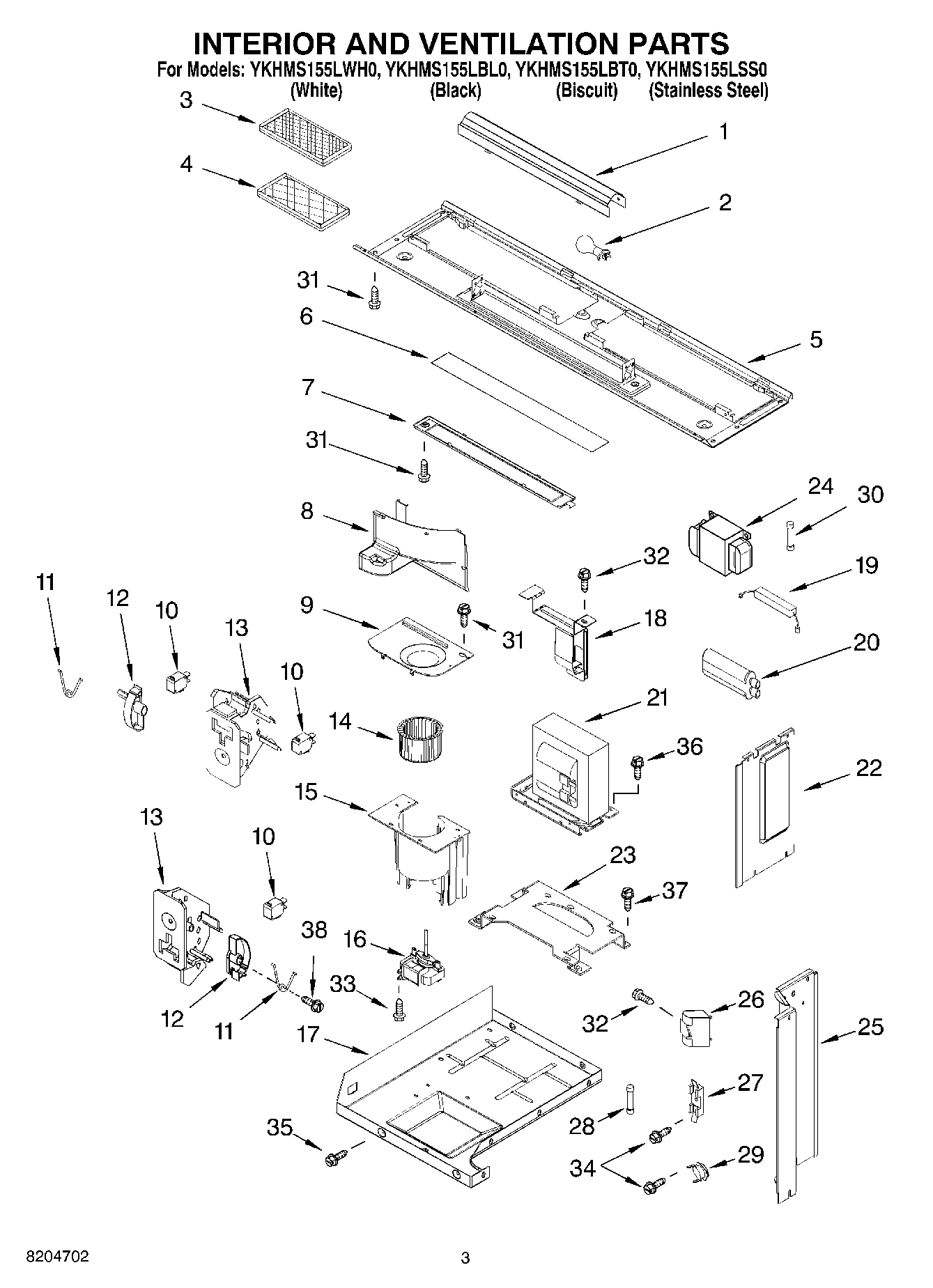

YKHMS155LBL0 03 – INTERIOR AND VENTILATION PARTS

Products

Position	Product
1	Reflector, Lamp
2	8204670 Whirlpool Microwave Halogen Lamp 10W 12V
3	6800 Whirlpool Charcoal Filter Kit
4	6802A Whirlpool Grease Filter
5	Plate, Bottom
6	Glass, Lamp
7	Holder, Glass
8	Guide, Air (Magnetron)
9	Cover, Fan
10	Switch, Micro (3)
11	Spring, Interlock
12	Plate, Cam
13	8205572 Whirlpool Microwave Interlock
14	Wheel, Fan
15	Housing, Fan
16	Motor, Fan
17	Chassis
18	Holder, Capacitor
19	W11256462 Whirlpool Microwave Diode
20	8206562 Whirlpool Microwave Capacitor MG
21	Transformer, H.V.
23	Bracket, Transformer
24	Transformer, L.V.
25	Plate, Side (R)
26	Capacitor
27	Holder, Fuse
28	FUSE-THRML
29	Thermostat
30	Fuse (5 Amp)
32	W11380570 Whirlpool Microwave Screw
33	Screw
34	Screw
35	Screw
36	4393836 Whirlpool Microwave Screw
37	Screw
38	8169479 Whirlpool Microwave Screw
