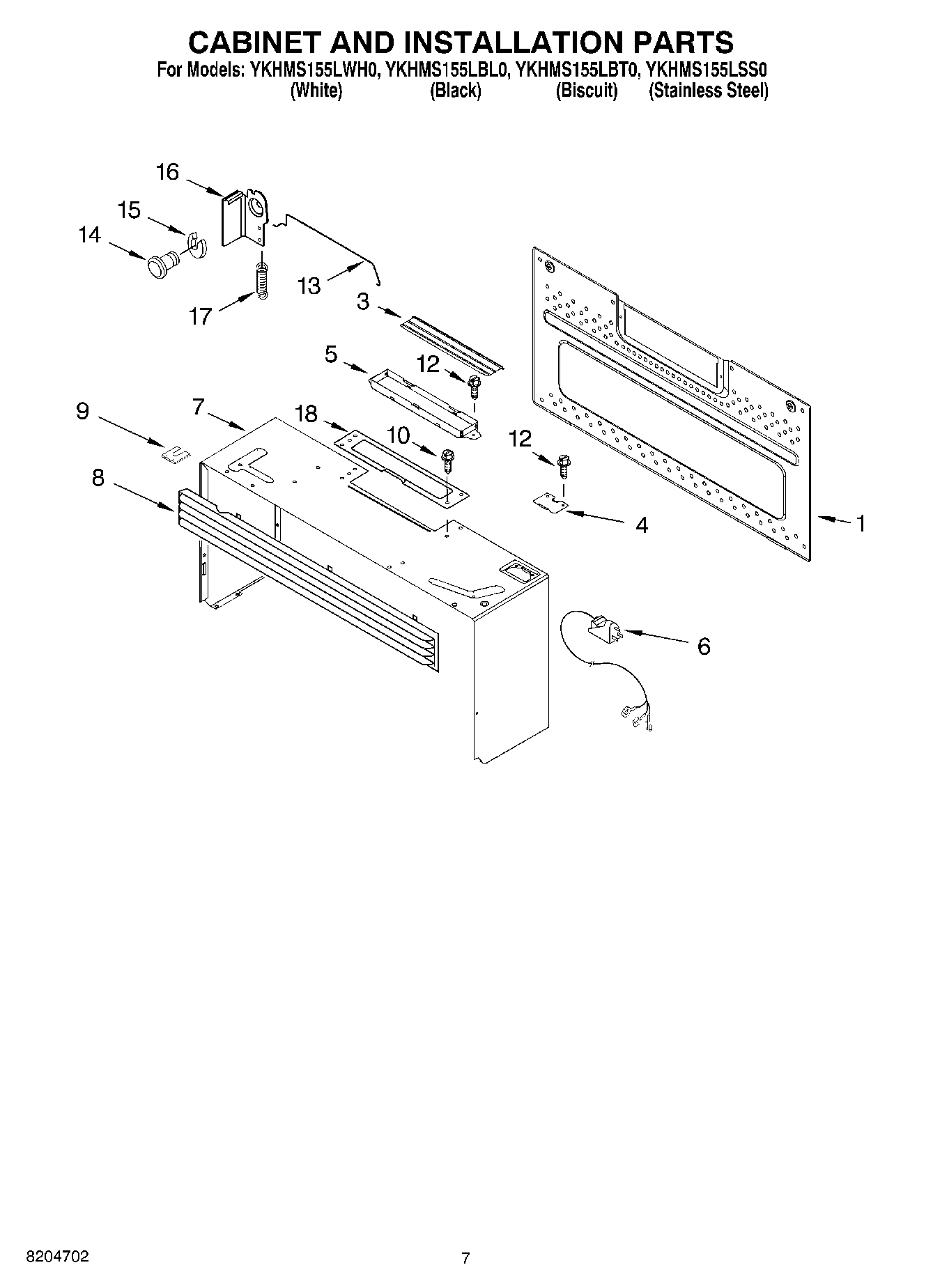

YKHMS155LBL0 06 – CABINET AND INSTALLATION PARTS

YKHMS155LBL0 06 – CABINET AND INSTALLATION PARTS

Written by

in

YKHMS155LBL0 06 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
1WP8206174 Whirlpool Microwave Mounting Bracket
3W10843943 Whirlpool Microwave Vent Damper
4Lid, Power Cord
68169432 Whirlpool Microwave Power Cord
7Case, Outer (White)
7Case, Outer (Black)
7Case, Outer (Biscuit)
8Grille, Vent (Biscuit)
88184608 Whirlpool Microwave Oven Vent Grille
8Grille, Vent (White)
8Grille, Vent (Stainless)
98206334 Whirlpool Microwave Mounting Bracket
10WP4393834 Whirlpool Microwave Screw
12W10642989 Whirlpool Microwave Oven Turntable Motor
13Rod
14Latch, Pivot
15E-Ring
16Catch
17Spring
18Template – Wall
18Template – Upper
18Rack
18Plate, Damper
18Hardware, Installation
18WP8169704 Whirlpool Screw
18Miscellaneous
