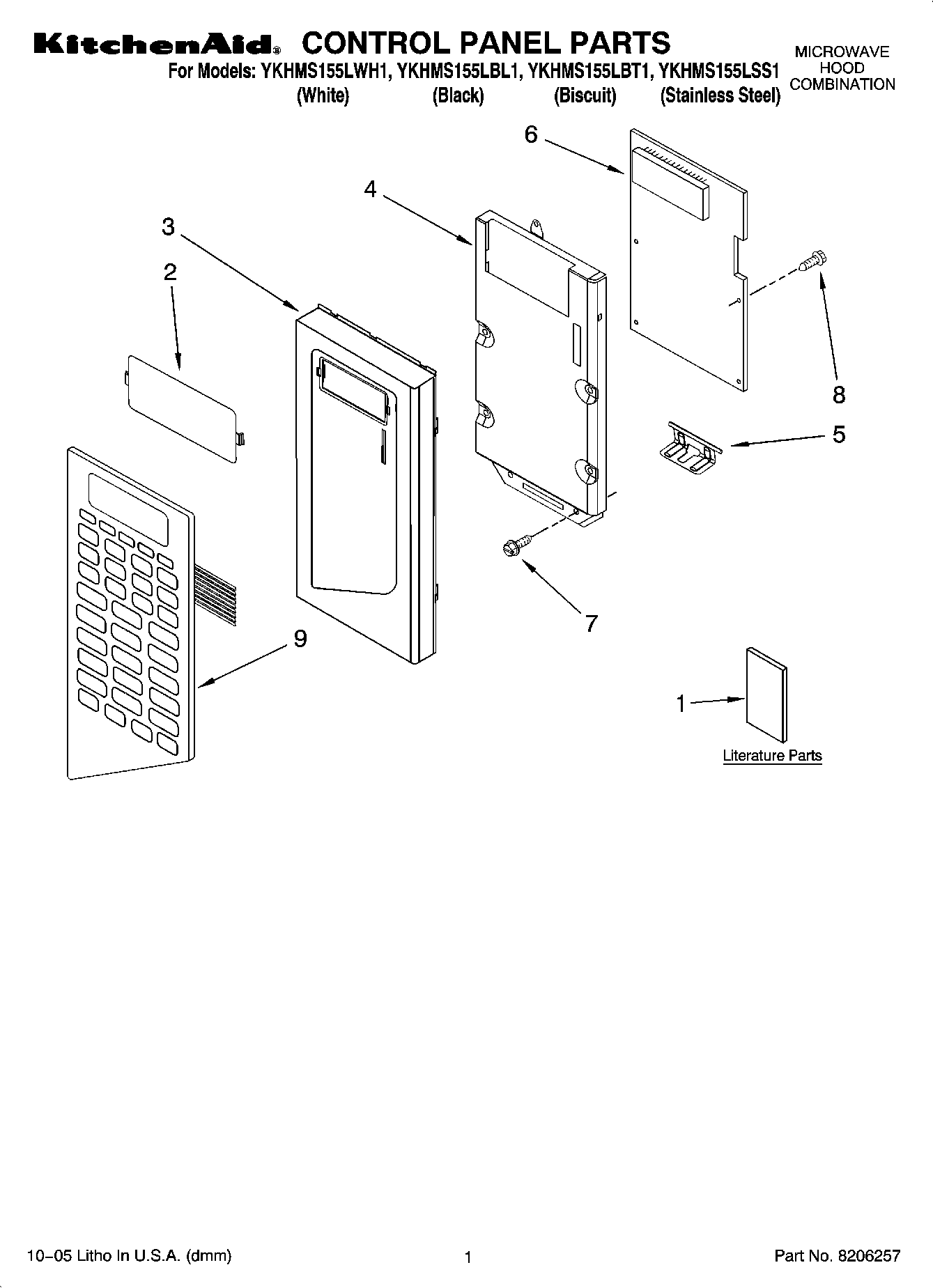

YKHMS155LWH1 01 – CONTROL PANEL PARTS

YKHMS155LWH1 01 – CONTROL PANEL PARTS

Written by

in

YKHMS155LWH1 01 – CONTROL PANEL PARTS

Products

Position	Product
1	Cooking Guide Label (French)
1	Tech Sheet
1	Cooking Guide Label (English)
1	Use & Care Guide
1	Installation Instructions
2	Lens
3	Panel, Control (Biscuit)
3	Panel, Control (Stainless)
3	Panel, Control (Black)
3	Panel, Control (White)
4	Bracket, Control
5	Plate, Hinge
6	PCB Assembly
7	Screw
8	Screw
9	Switch, Membrane (Biscuit)
9	Switch, Membrane (Black)
9	Switch, Membrane (White)
