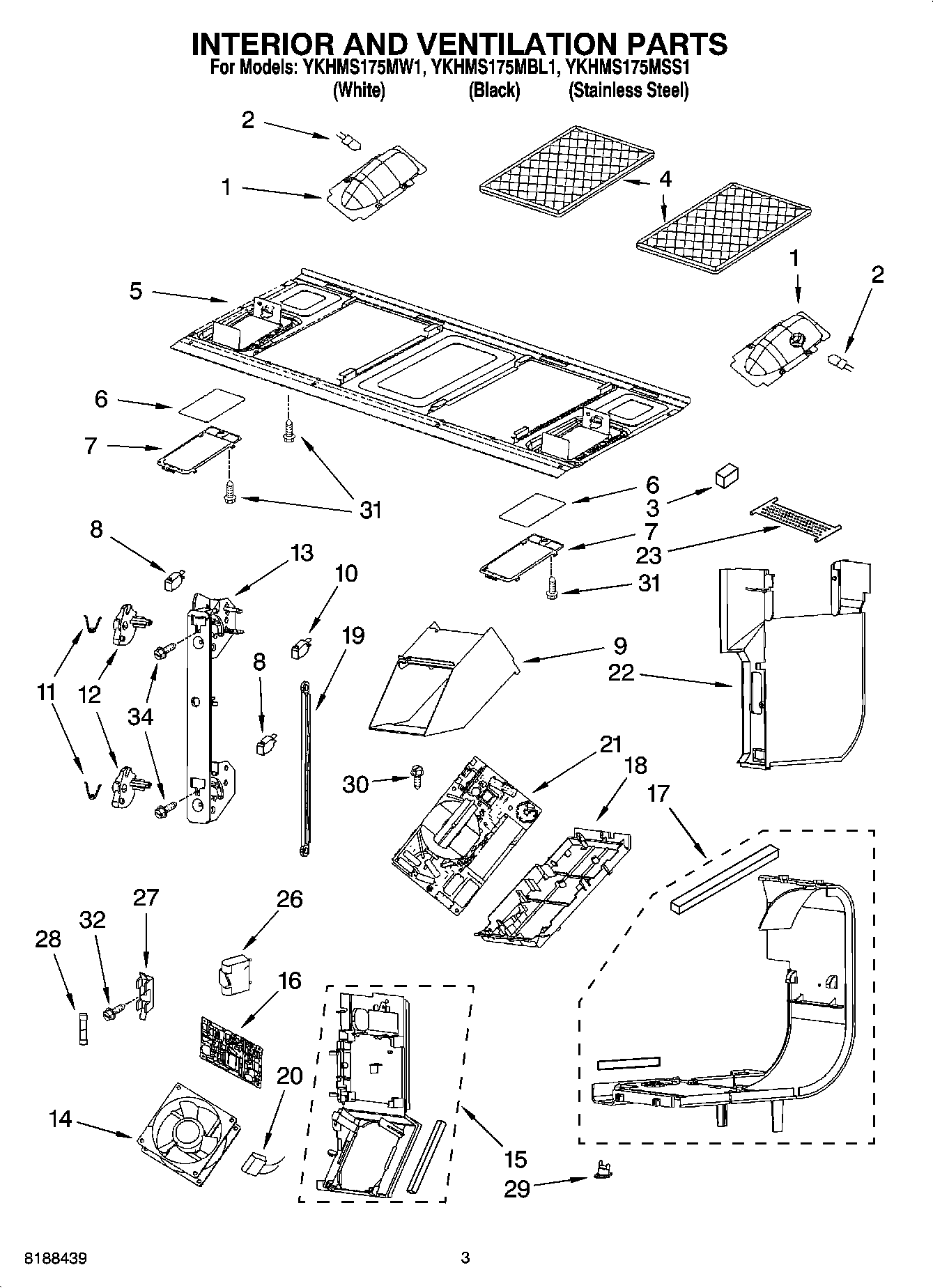

YKHMS175MBL1 03 – INTERIOR AND VENTILATION PARTSadmin2025-04-26T11:13:19+00:00YKHMS175MBL1 03 – INTERIOR AND VENTILATION PARTS
Products
| Position | Product |
|---|
| 1 | Reflector, Lamp (Left) |
| 1 | Reflector, Lamp (Right) |
| 2 | 8204670 Whirlpool Microwave Halogen Lamp 10W 12V |
| 3 | Seal, Foam |
| 4 | W10113040A Whirlpool Grease Filter Aluminum |
| 5 | Plate, Bottom |
| 6 | Glass, Lamp |
| 7 | Holder, Glass |
| 8 | W10211974 Whirlpool Microwave Door Interlock Micro Switch |
| 9 | Cover, Inverter |
| 10 | W10211972 Whirlpool Microwave Switch |
| 11 | Spring, Interlock |
| 12 | Plate, Cam |
| 13 | Support, Interlock |
| 14 | Fan, DC 12 V |
| 15 | Housing, Fan |
| 16 | Inverter 40 W |
| 17 | Bracket, Holder |
| 18 | Holder, Inverter |
| 19 | Rod-Locking Link |
| 20 | Capacitor, 125 V |
| 21 | W10217710 Whirlpool Microwave Inverter |
| 22 | Plate, Side |
| 23 | Cable |
| 26 | Capacitor |
| 27 | Holder, Fuse |
| 28 | FUSE-THRML |
| 29 | Thermostat |
| 30 | SCREW |
| 31 | W11380570 Whirlpool Microwave Screw |
| 32 | SCREW |
| 34 | 8169479 Whirlpool Microwave Screw |
