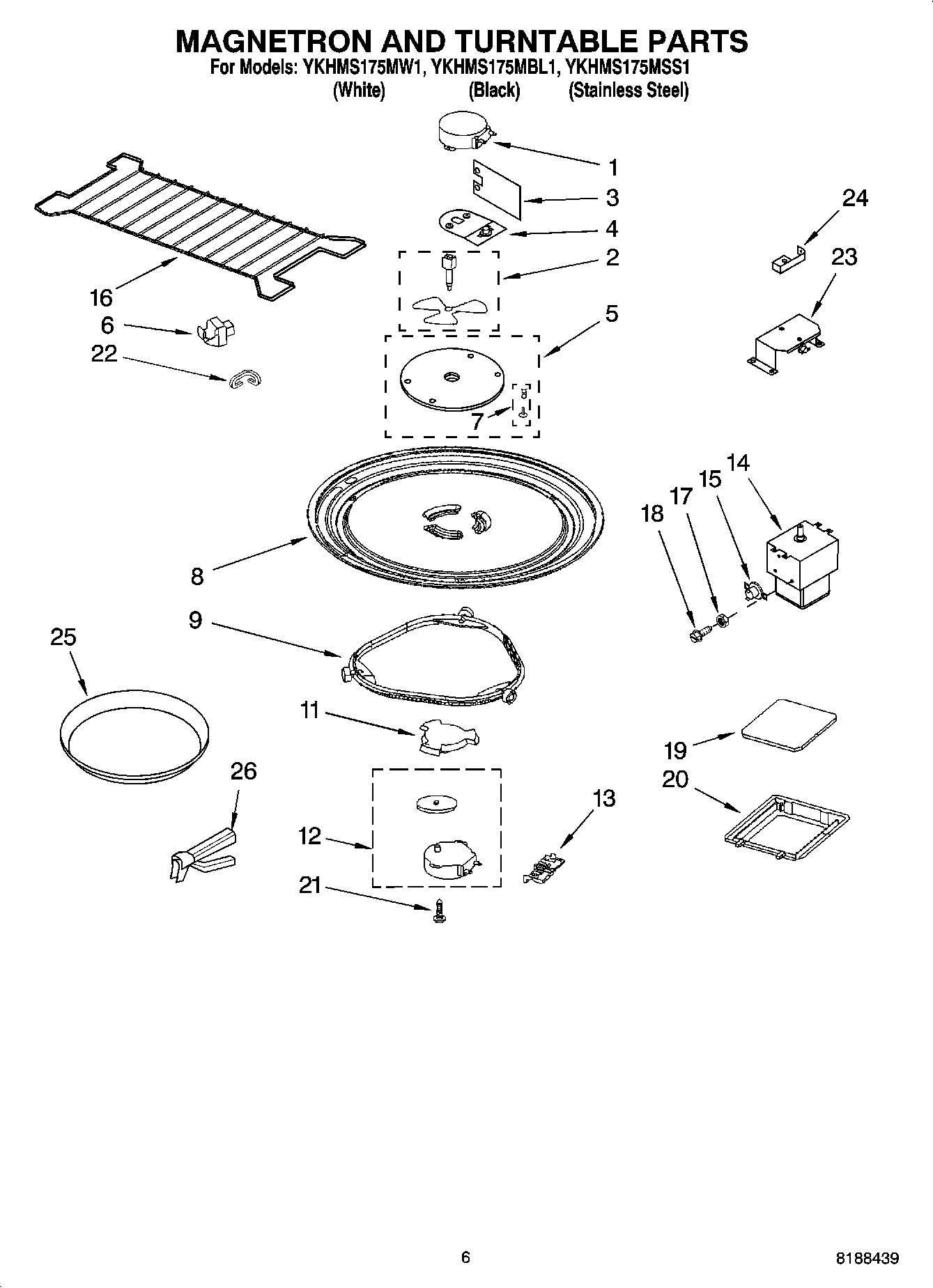

YKHMS175MBL1 05 – MAGNETRON AND TURNTABLE PARTS

YKHMS175MBL1 05 – MAGNETRON AND TURNTABLE PARTS

Written by

in

YKHMS175MBL1 05 – MAGNETRON AND TURNTABLE PARTS

Products

PositionProduct
1Motor, Stirrer
2Stirrer Shaft/Blade
3Shield, Nomex
4Thermostat And Bracket
5Cover, Inlet Includes Nails and Bushings
7Nails/Bushings (4 of each)
84393799 Whirlpool Microwave Glass Tray
9W11252182 Whirlpool Glass Tray Support
11W10435116 Whirlpool Microwave Turntable Roller Drive Coupling
12W10642989 Whirlpool Microwave Oven Turntable Motor
13Cover, Terminal
148206317 Whirlpool Microwave Magnetron
15Thermostat
16Rack
17Nut
18WP8181660 Whirlpool Screw
19Glass, Lamp
20Frame, Glass
214393832 Whirlpool Microwave Screw
22W10315274 Whirlpool Microwave Meal Rack
23Thermostat/Bracket
24Bracket, Plug
25W10748097 Whirlpool Microwave Crisp Pan
26W10851464 Whirlpool Microwave Handle Panel
