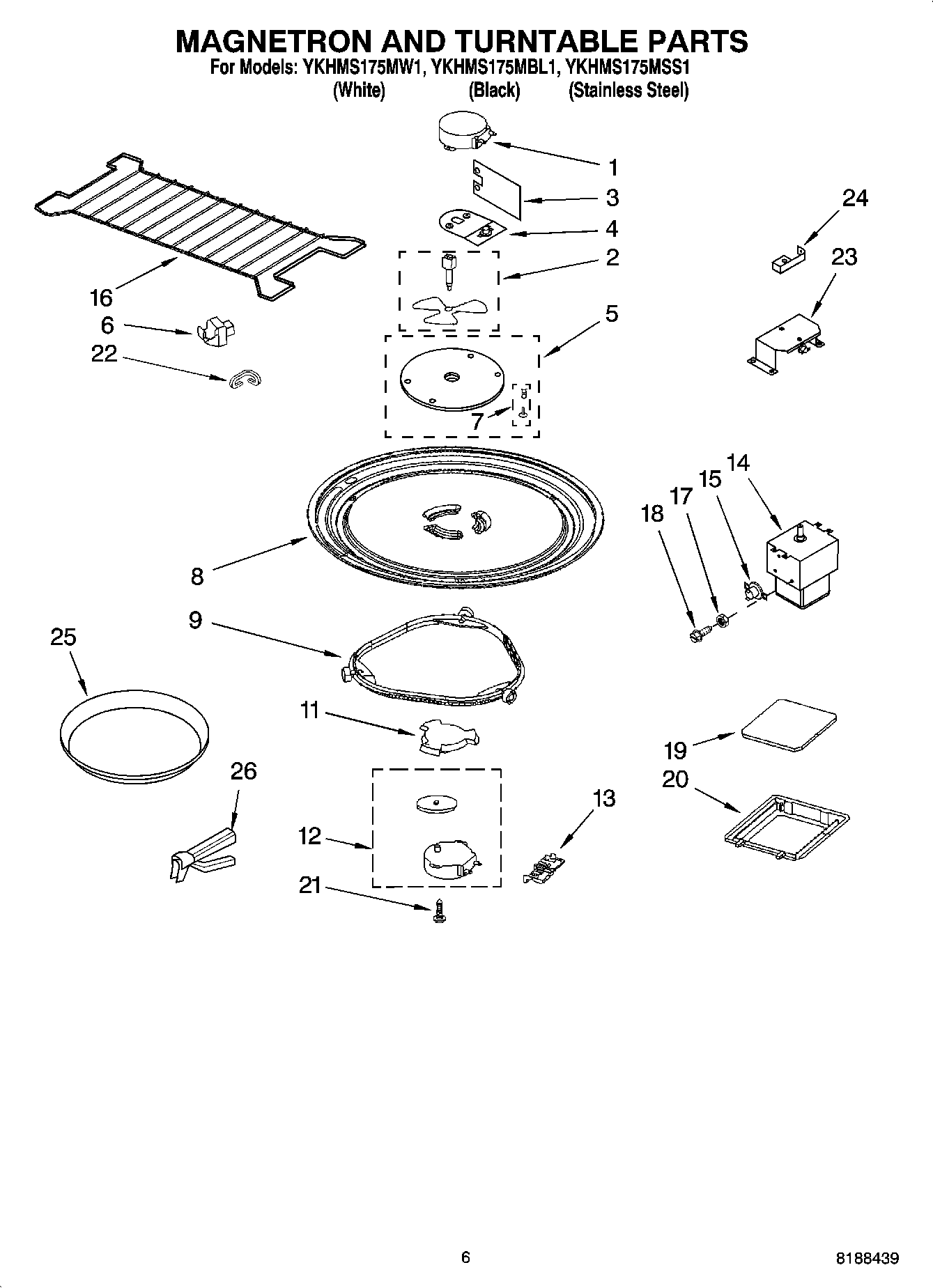

YKHMS175MSS1 05 – MAGNETRON AND TURNTABLE PARTS

Products

Position	Product
1	Motor, Stirrer
2	Stirrer Shaft/Blade
3	Shield, Nomex
4	Thermostat And Bracket
5	Cover, Inlet Includes Nails and Bushings
7	Nails/Bushings (4 of each)
8	4393799 Whirlpool Microwave Glass Tray
9	W11252182 Whirlpool Glass Tray Support
11	W10435116 Whirlpool Microwave Turntable Roller Drive Coupling
12	W10642989 Whirlpool Microwave Oven Turntable Motor
13	Cover, Terminal
14	8206317 Whirlpool Microwave Magnetron
15	Thermostat
16	Rack
17	Nut
18	WP8181660 Whirlpool Screw
19	Glass, Lamp
20	Frame, Glass
21	4393832 Whirlpool Microwave Screw
22	W10315274 Whirlpool Microwave Meal Rack
23	Thermostat/Bracket
24	Bracket, Plug
25	W10748097 Whirlpool Microwave Crisp Pan
26	W10851464 Whirlpool Microwave Handle Panel
