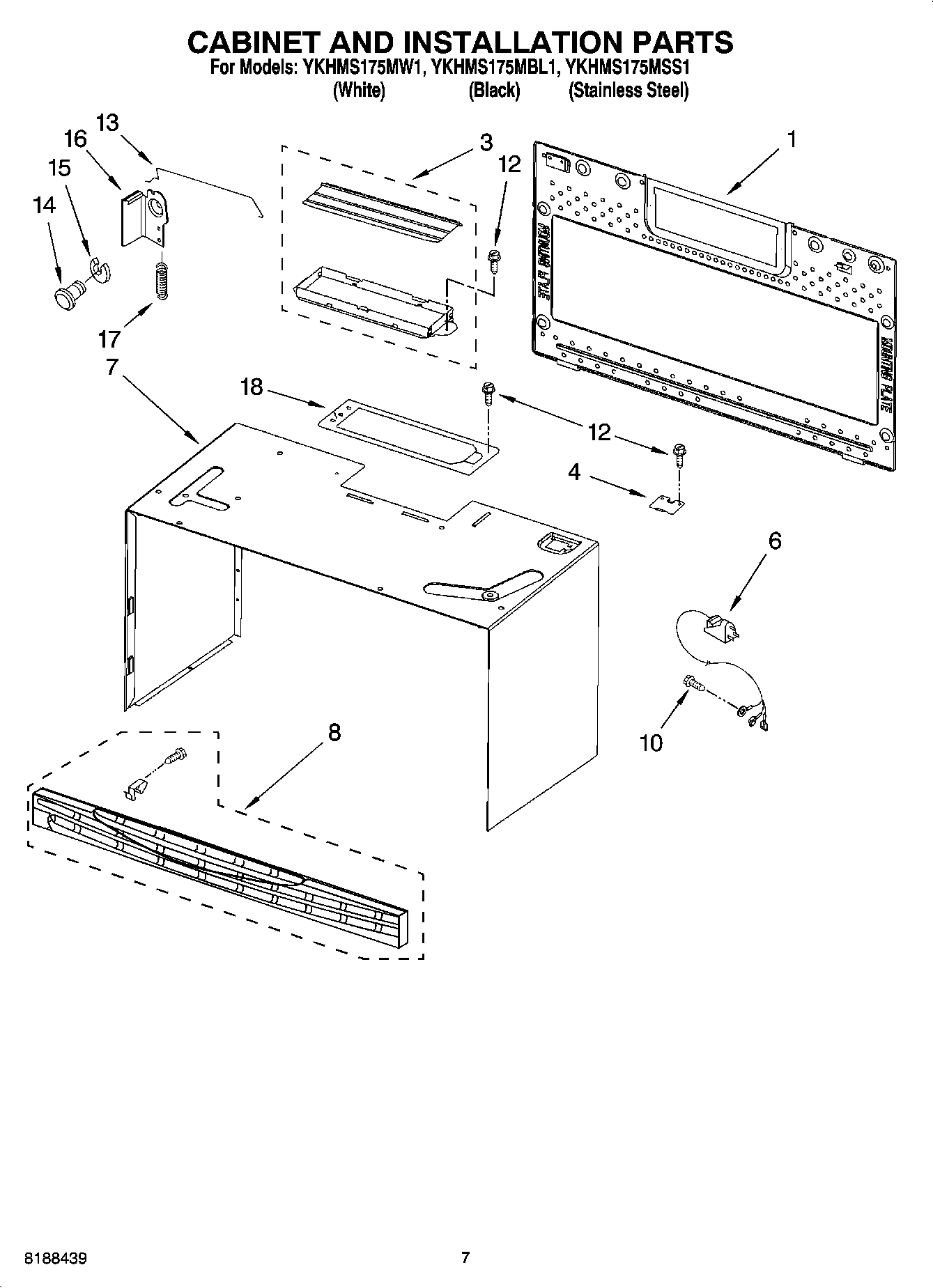

YKHMS175MSS1 06 – CABINET AND INSTALLATION PARTS

Products

Position	Product
	Miscellaneous
	(Biscuit)
	Template, Wall
	Hardware, Installation
	WP8169704 Whirlpool Screw
1	Plate, Mounting
3	W10843943 Whirlpool Microwave Vent Damper
4	Lid, Power Cord
6	Cord, Power
7	Case, Outer (Black)
7	Case, Outer (White)
8	Grille, Vent (White)
8	Grille, Vent (Black)
8	Grille, Vent (Stainless)
10	4393836 Whirlpool Microwave Screw
12	W11380570 Whirlpool Microwave Screw
13	Rod
14	Latch, Pivot
15	E-Ring
16	Catch
17	Spring
18	Plate, Damper
