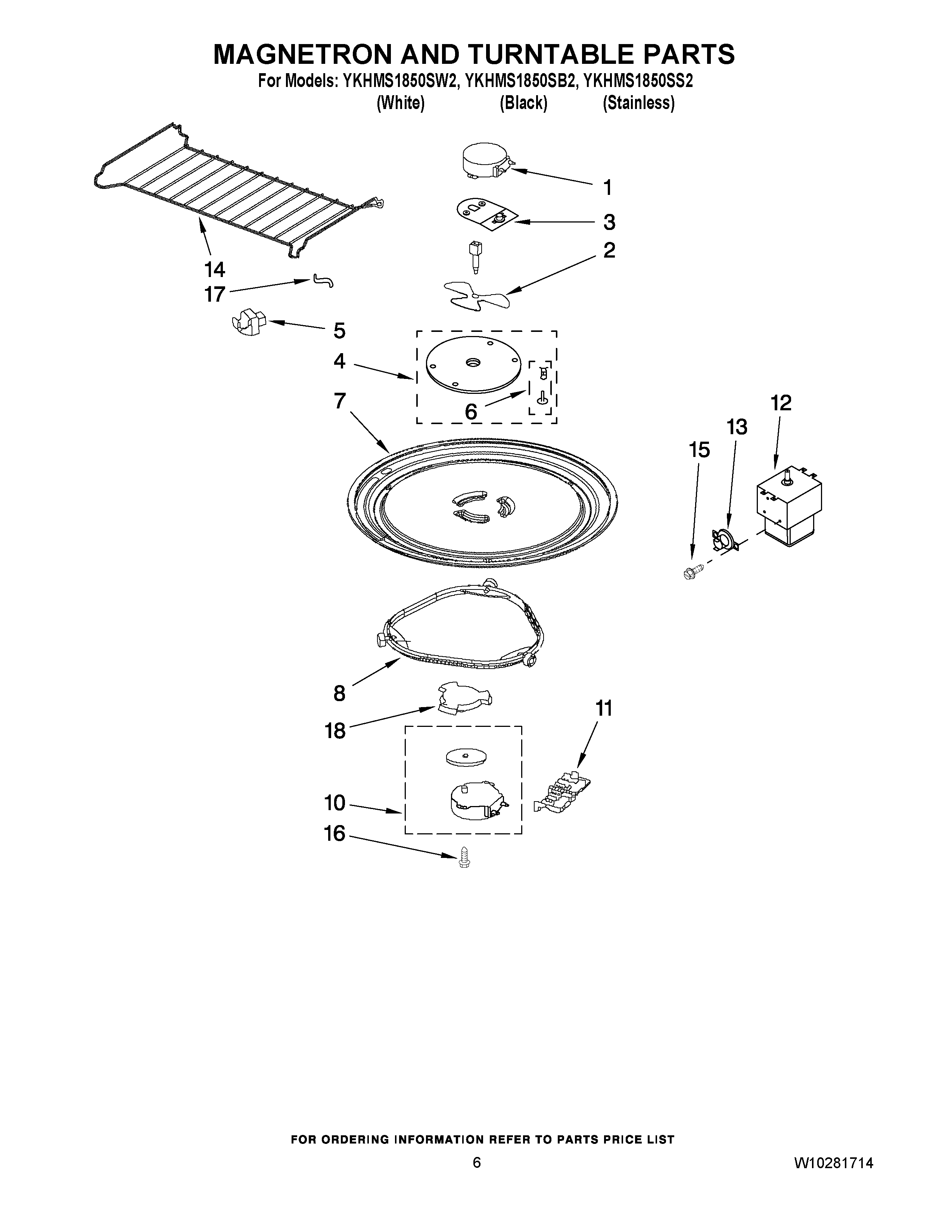

YKHMS1850SB2 05 – MAGNETRON AND TURNTABLE PARTS

YKHMS1850SB2 05 – MAGNETRON AND TURNTABLE PARTS

Written by

in

YKHMS1850SB2 05 – MAGNETRON AND TURNTABLE PARTS

Products

PositionProduct
1Motor, Stirrer
2Stirrer Shaft/Blade
3Thermostat/Bracket
4Cover, Inlet
5W10840795 Whirlpool Microwave Support
5W10840794 Whirlpool Clip
5W10840759 Whirlpool Microwave Support
6Nails/Bushings (4 of each)
74393799 Whirlpool Microwave Glass Tray
8W11252182 Whirlpool Glass Tray Support
10WPW10466420 Whirlpool Turntable Motor
11Cover, Terminal
12W10222507 Whirlpool Microwave Magnetron
13Thermostat
14Rack
15Screw
164393832 Whirlpool Microwave Screw
17W10315274 Whirlpool Microwave Meal Rack
18DRIVER,TURNTABLE
