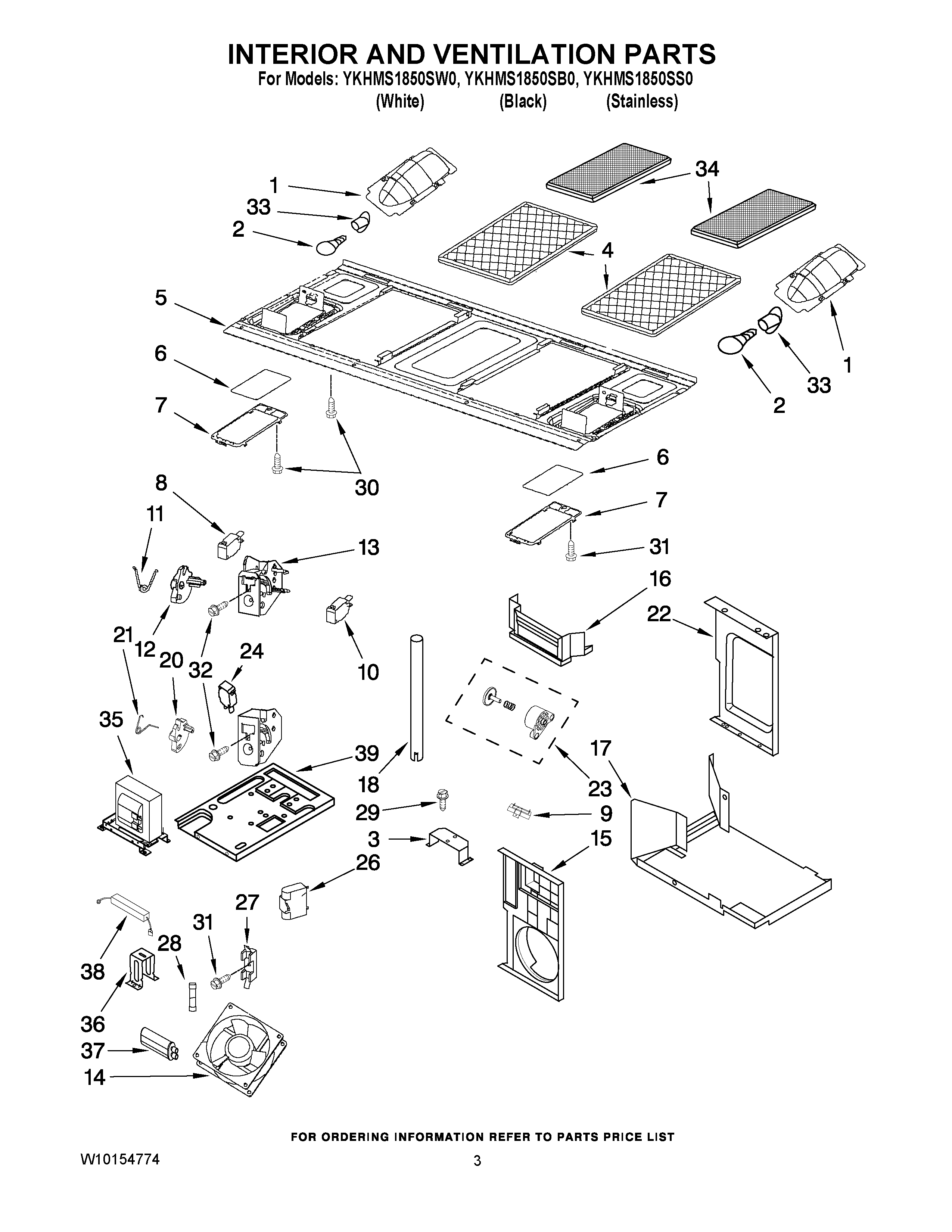

YKHMS1850SW0 03 – INTERIOR AND VENTILATION PARTS

Products

PositionProduct
1Reflector, Lamp
2W10709921 Whirlpool Halogen Light Bulb
3TCO, Bracket Assembly
4W10113040A Whirlpool Grease Filter Aluminum
5PLATE, BOTTOM
6Glass, Lamp
7Holder, Glass
8W10211972 Whirlpool Microwave Switch
9Resistor
10W10211974 Whirlpool Microwave Door Interlock Micro Switch
11Spring, Interlock
12Plate, Cam
13Support, Interlock
14Fan, DC 12 Volt
15HOUSING, FAN
16SHIELD,WTR.SPILL.
17DIFFUSER, HOUSING
18TUBE,WATERSHOOT
20Plate, Cam
21Spring, Interlock
22Plate, Side
23Piston Assembly
24W10269458 Whirlpool Microwave Door Switch
26W11405832 Whirlpool Microwave Capacitor
27HOLDER, FUSE
28FUSE-THRML
29SCREW
30W11380570 Whirlpool Microwave Screw
31SCREW
328169479 Whirlpool Microwave Screw
338169539 Whirlpool Microwave Light Bulb Socket and Housing
34W10112514A Whirlpool Microwave Vent Hood Charcoal Filter
35Transformer, H.V.
36Bracket, Capacitor
37Capacitor, H.V.
38W11256462 Whirlpool Microwave Diode
39Chassis
