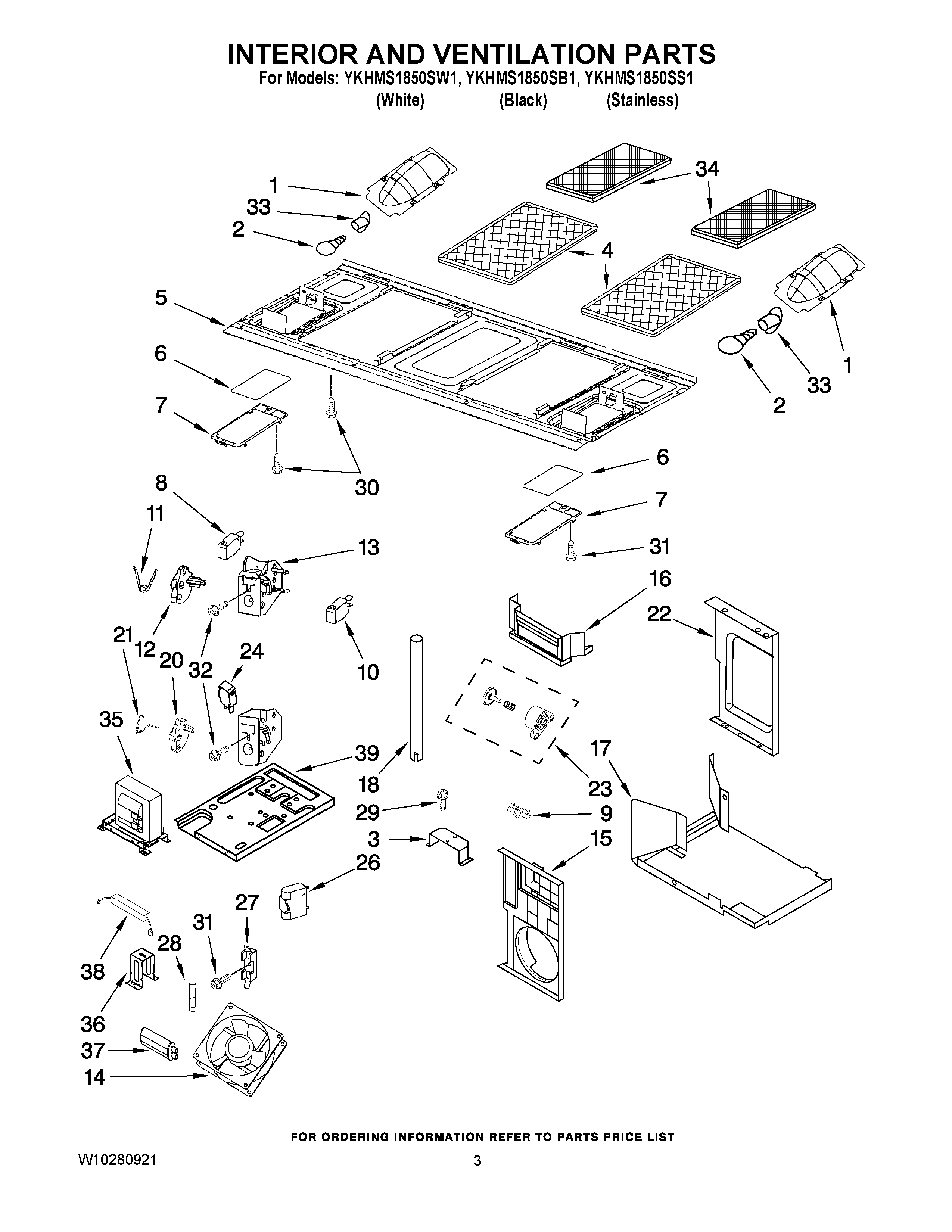

YKHMS1850SW1 03 – INTERIOR AND VENTILATION PARTS

Products

Position	Product
1	Reflector, Lamp
2	W10709921 Whirlpool Halogen Light Bulb
3	TCO, Bracket Assembly
4	W10113040A Whirlpool Grease Filter Aluminum
5	PLATE, BOTTOM
6	Glass, Lamp
7	Holder, Glass
8	W10211972 Whirlpool Microwave Switch
9	Resistor
10	W10211974 Whirlpool Microwave Door Interlock Micro Switch
11	Spring, Interlock
12	Plate, Cam
13	Support, Interlock
14	Fan, DC 12 Volt
15	HOUSING, FAN
16	SHIELD,WTR.SPILL.
17	DIFFUSER, HOUSING
18	TUBE,WATERSHOOT
20	Plate, Cam
21	Spring, Interlock
22	Plate, Side
23	Piston Assembly
24	W10269458 Whirlpool Microwave Door Switch
26	W11405832 Whirlpool Microwave Capacitor
27	HOLDER, FUSE
28	FUSE-THRML
29	SCREW
30	W11380570 Whirlpool Microwave Screw
31	SCREW
32	8169479 Whirlpool Microwave Screw
33	WPW10210878 Whirlpool Microwave LMP Housing
34	W10112514A Whirlpool Microwave Vent Hood Charcoal Filter
35	Transformer, H.V.
36	Bracket, Capacitor
37	Capacitor, H.V.
38	W11256462 Whirlpool Microwave Diode
39	Chassis
