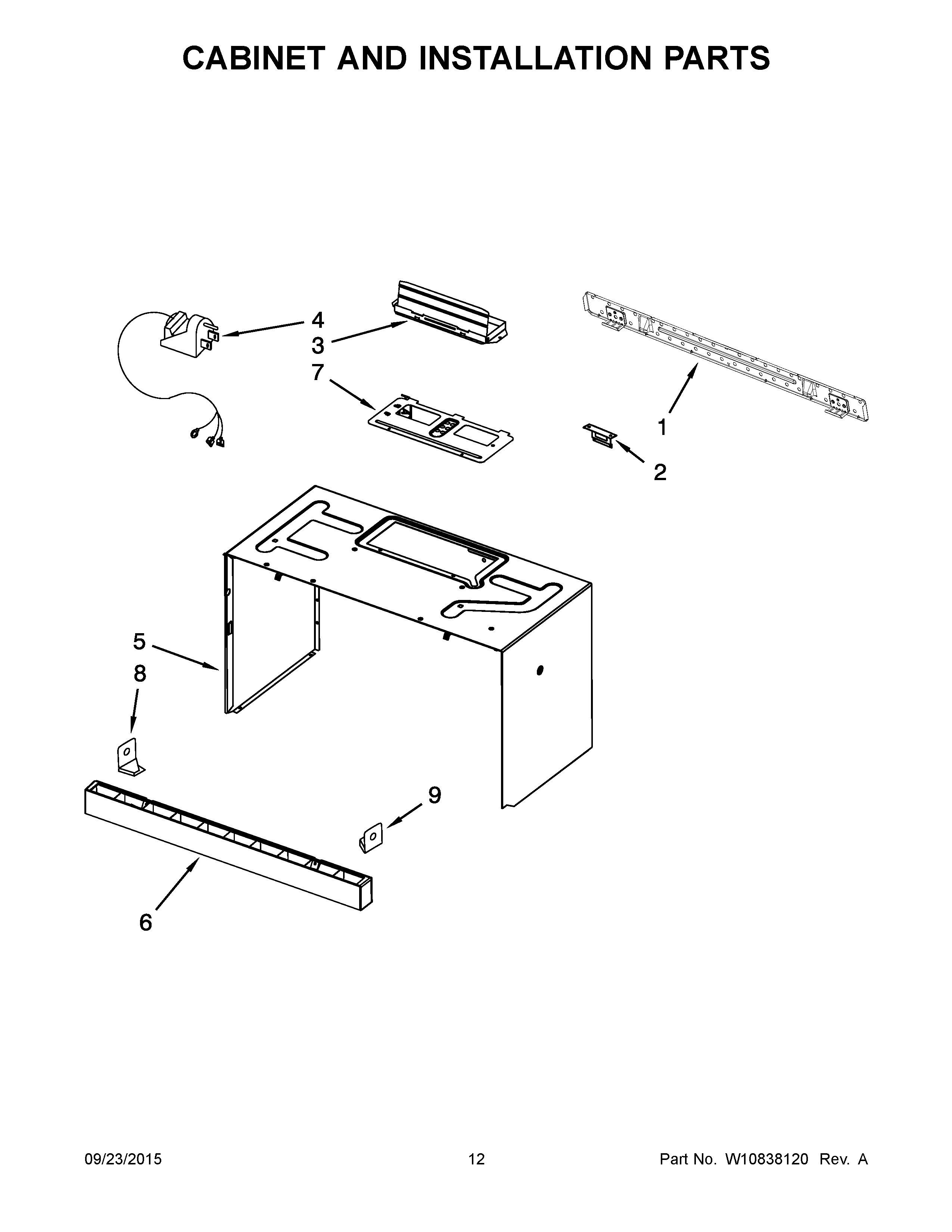

YKHMS2040BS1 07 – CABINET AND INSTALLATION PARTS

YKHMS2040BS1 07 – CABINET AND INSTALLATION PARTS

Written by

in

YKHMS2040BS1 07 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
NIWP8169704 Whirlpool Screw
NIW10556400 Whirlpool Microwave Wire Harness
NIMISCELLANEOUS PARTS, HARNESS, HEAD LAMP AND TURNTABLE ASSEMBLY
NIMISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH & SPANISH)
NIW10821385 Whirlpool Hardware Kit
1W11025649 Whirlpool Microwave Mounting Plate
28206385 Whirlpool Microwave Wire Clip
3W10843943 Whirlpool Microwave Vent Damper
4W10708076 Whirlpool Microwave Power Cord
5WPW10245176 Whirlpool Microwave Cabinet Wrapper
6W10245216 Whirlpool Microwave Vent Grille
7COVER, HOOD FAN MOTOR
8W11026306 Whirlpool Microwave Mounting Bracket
9W10703282 Whirlpool Microwave Mounting Bracket
