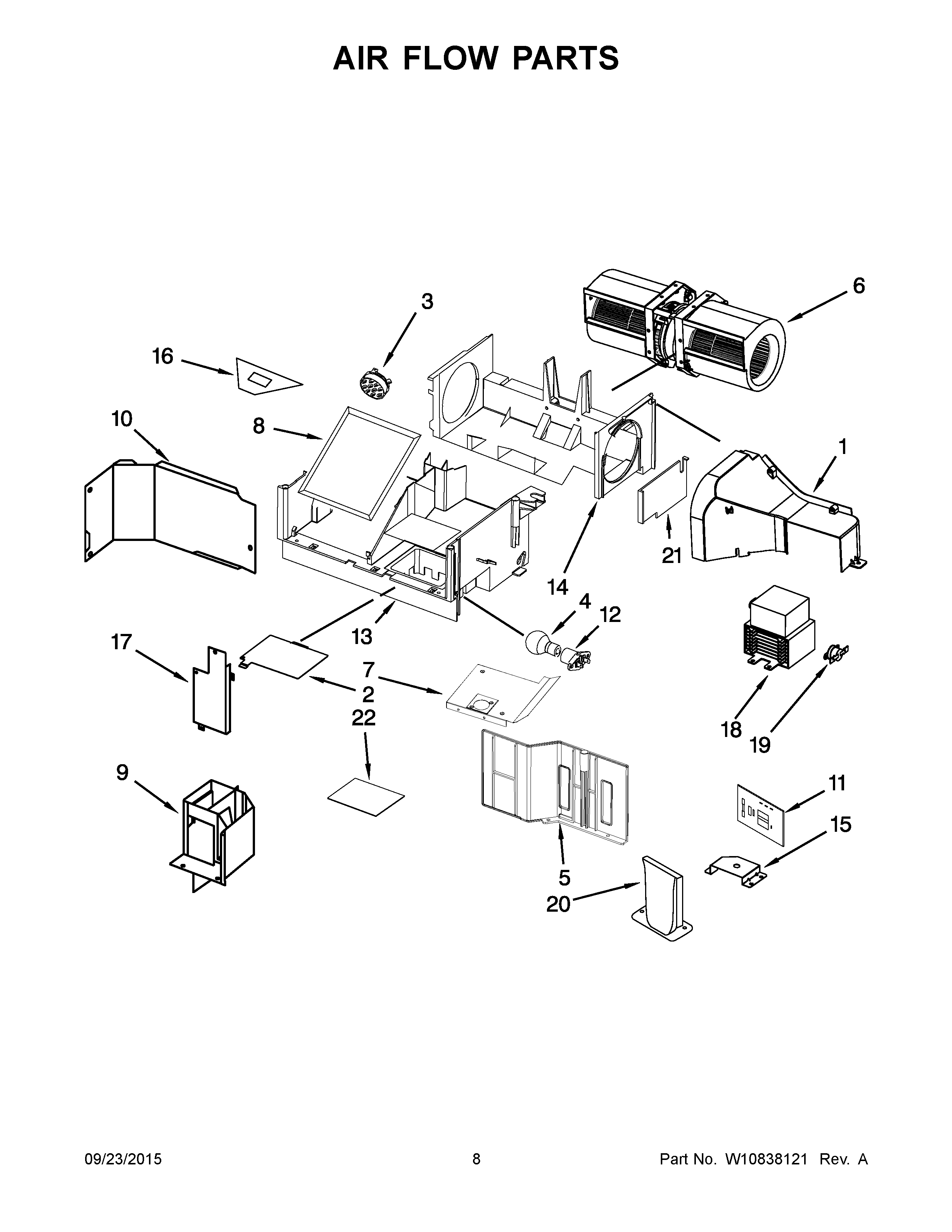

YKHMS2040BS2 05 – AIR FLOW PARTS

Products

Position	Product
1	DEFLECTOR, AIR
2	8206382 Whirlpool Microwave Light Cover
3	W10245178 Whirlpool Microwave Sensor
4	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
5	W10342991 Whirlpool Microwave Side Cover
6	MOTOR, HOOD FAN
7	Support, Sensor
8	8206230A Whirlpool Microwave Charcoal Filter
9	PLATE, SEALING AIR GUIDE
10	Air Guide,Plate
11	W10605455 Whirlpool Microwave Filter
12	WPW10210878 Whirlpool Microwave LMP Housing
13	BASE PLATE, AIR GUIDE
14	W10640885 Whirlpool Microwave Mounting Bracket
15	W10313274 Whirlpool Microwave Mounting Bracket
16	W10810142 Whirlpool Relief Strain
17	Cover, Inlet Air Cavity Guide
18	W10844213 Whirlpool Microwave Magnetron
19	W10491433 Whirlpool Microwave Thermostat Fix
20	W10164716 Whirlpool Microwave Plate
21	W10245182 Whirlpool Microwave Duct Cover
22	Cavity Lamp Foil
