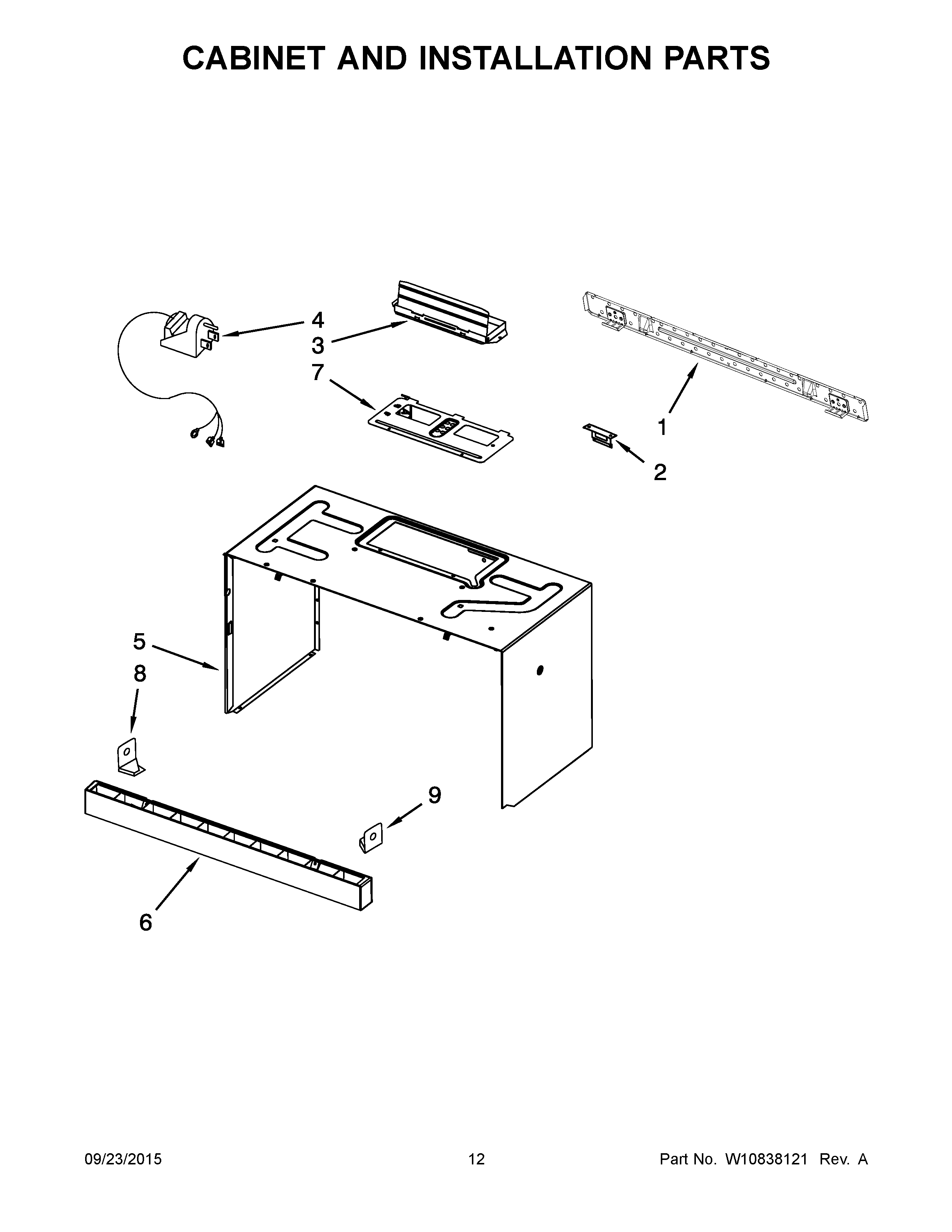

YKHMS2040BS2 07 – CABINET AND INSTALLATION PARTS
Written by
in
YKHMS2040BS2 07 – CABINET AND INSTALLATION PARTS
Products
Position
Product
NI
WP8169704 Whirlpool Screw
NI
W10556400 Whirlpool Microwave Wire Harness
NI
MISCELLANEOUS PARTS, HARNESS, HEAD LAMP AND TURNTABLE ASSEMBLY
NI
MISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH & SPANISH)
NI
W10821385 Whirlpool Hardware Kit
1
W11025649 Whirlpool Microwave Mounting Plate
2
8206385 Whirlpool Microwave Wire Clip
3
W10843943 Whirlpool Microwave Vent Damper
4
W10708076 Whirlpool Microwave Power Cord
5
WPW10245176 Whirlpool Microwave Cabinet Wrapper
6
W10245216 Whirlpool Microwave Vent Grille
7
COVER, HOOD FAN MOTOR
8
W11026306 Whirlpool Microwave Mounting Bracket
9
W10703282 Whirlpool Microwave Mounting Bracket
←
