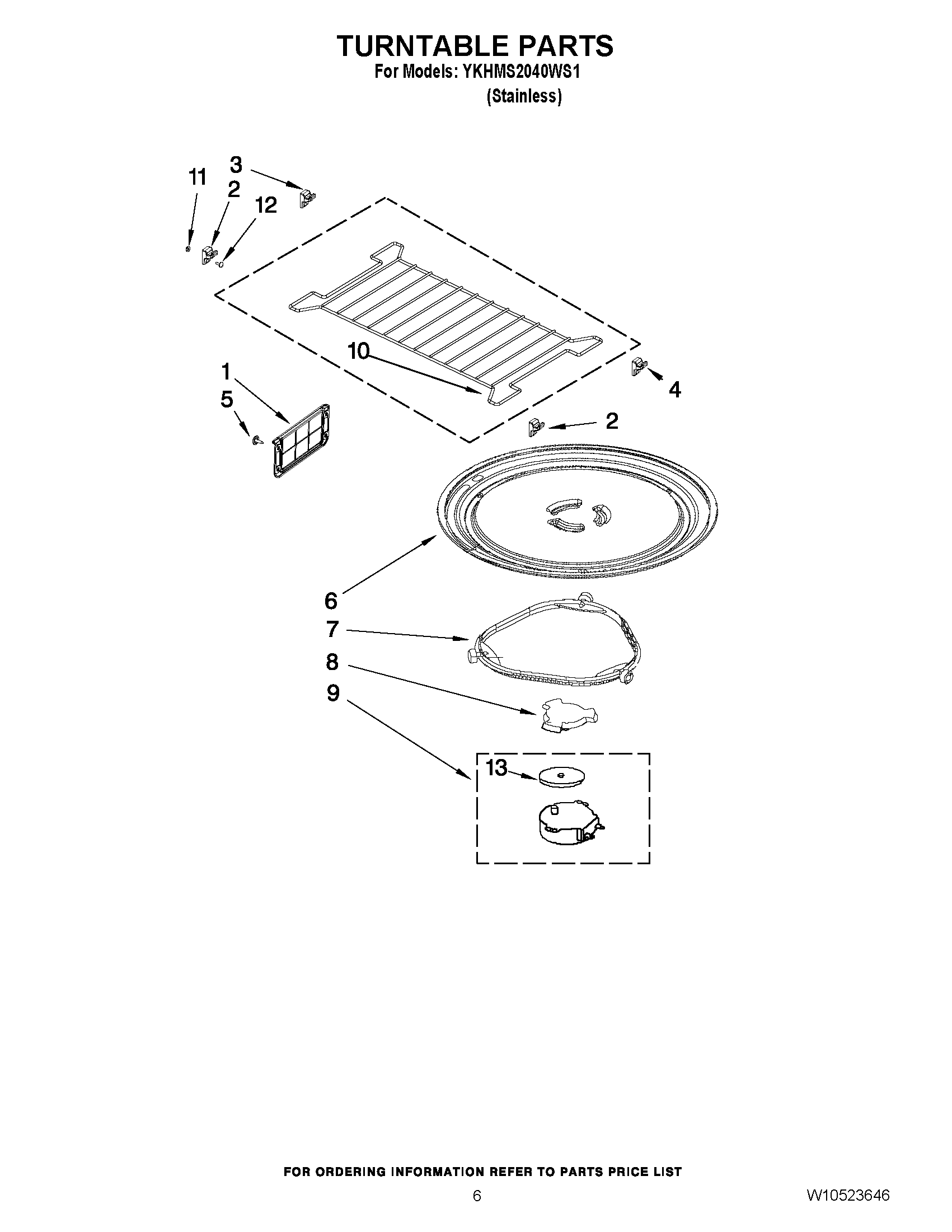

YKHMS2040WS1 05 – TURNTABLE PARTS

YKHMS2040WS1 05 – TURNTABLE PARTS

Written by

in

YKHMS2040WS1 05 – TURNTABLE PARTS

Products

PositionProduct
1Cover, Inlet Includes Nails and Bushings
2W10840759 Whirlpool Microwave Support
3W10840794 Whirlpool Clip
4W10840795 Whirlpool Microwave Support
5W11319886 Whirlpool Microwave Stir Rivet
64393799 Whirlpool Microwave Glass Tray
7W11252182 Whirlpool Glass Tray Support
8W10435116 Whirlpool Microwave Turntable Roller Drive Coupling
9WPW10466420 Whirlpool Turntable Motor
10WPW10447234 Whirlpool Microwave Meal Rack
11W10107790 Whirlpool Microwave Washer
12SCREW
13W11381953 Whirlpool Microwave Plate
