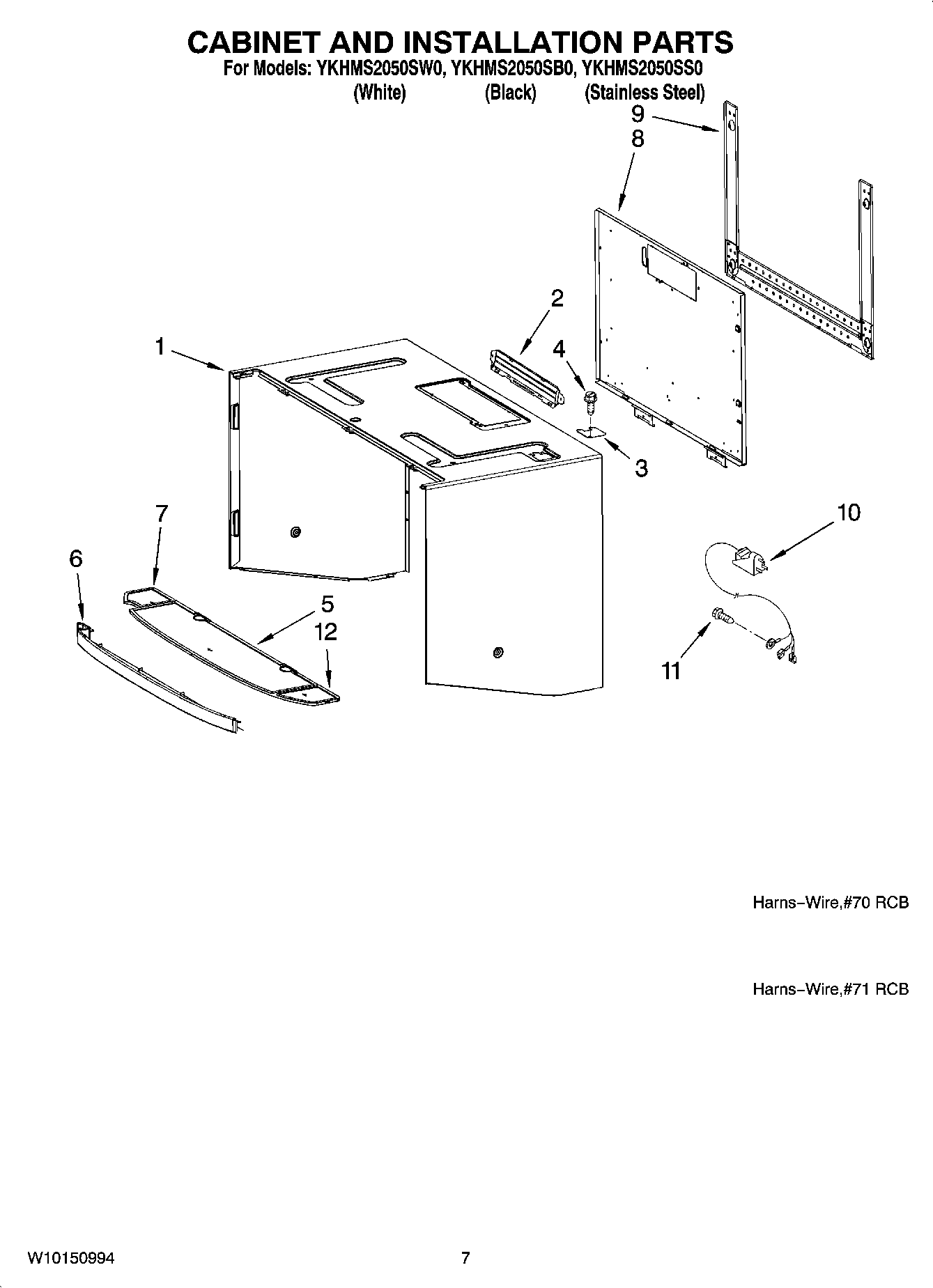

YKHMS2050SB0 06 – CABINET AND INSTALLATION PARTS

Products

Position	Product
	Miscellaneous
	W10470176 Whirlpool Microwave Wire Harness
	W10470191 Whirlpool Microwave Wire Harness Assembly
	W10553076 Whirlpool Microwave Wire Harness
	Installation, Magnetron Hardware
	HARNS-WIRE, P56-P66
	Harns-Wire, RCB – Inverter
	HARNS-WIRE No.75 P64 RCB
	HARNS-WIRE No.76 P2 RCB
	Harns-Wire, HV
	Main Harness
	MISCELLANEOUS, TEMPLATE, UPPER
	W10470175 Whirlpool Microwave Wire Harness
	W10470173 Whirlpool Microwave Wire Harness
	8206185 Whirlpool Microwave Wire Harness
1	Case, Outer (Stainless Steel)
1	Case, Outer (White)
1	Case, Outer (Black)
2	W10843943 Whirlpool Microwave Vent Damper
3	Lid, Power Cord
4	W11380570 Whirlpool Microwave Screw
5	Vent Screen (Middle)
6	Support, Vent Screen (White)
6	Support, Vent Screen (Stainless Steel)
6	Support, Vent Screen (Black)
7	Vent Screen (Left)
8	Plate, Back
9	Plate, Mounting
10	Cord, Power
11	4393836 Whirlpool Microwave Screw
12	Vent Screen (Right)
