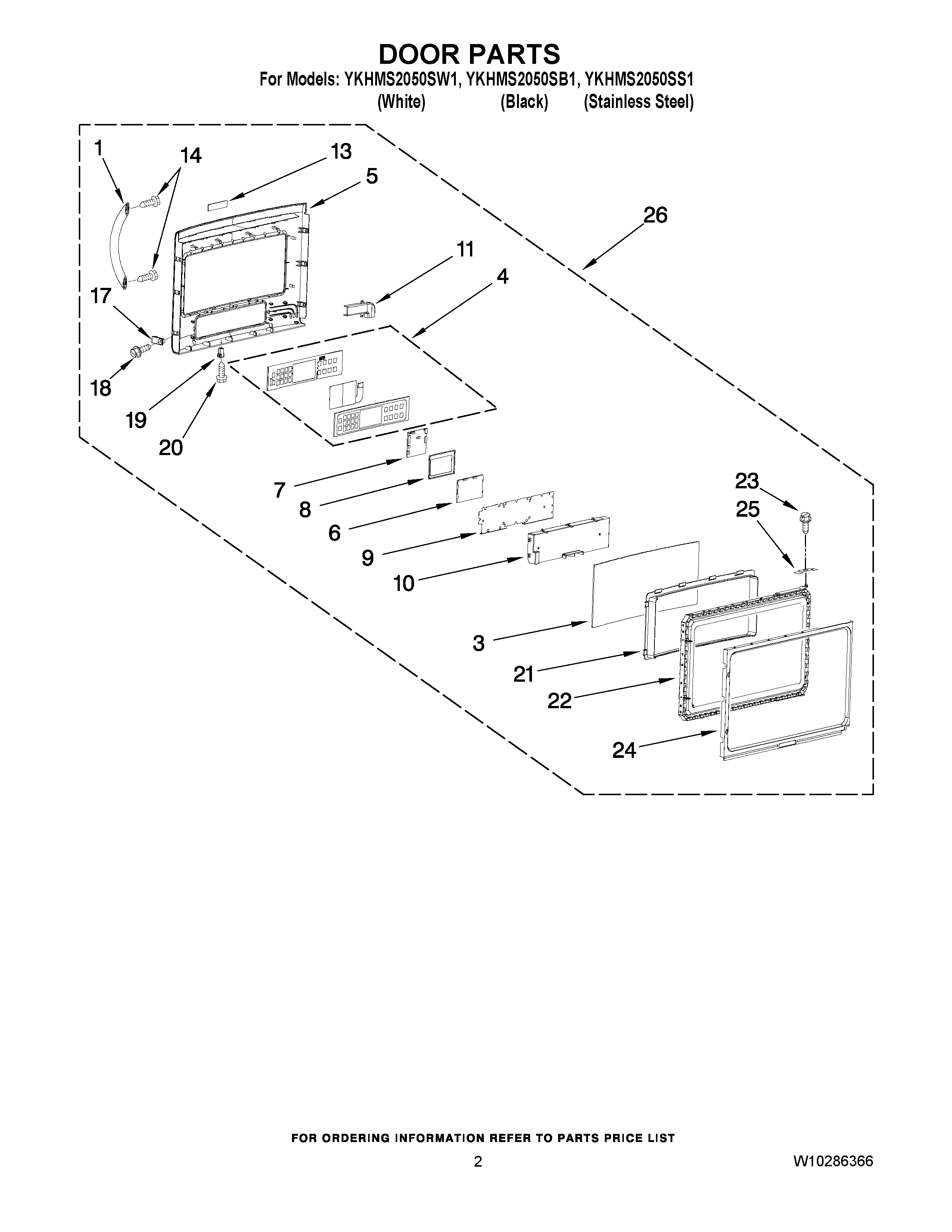

YKHMS2050SB1 02 – DOOR PARTS

Products

Position	Product
1	Handle (Stainless Steel)
1	Handle (Biscuit)
1	Handle (White)
1	W10110267 Whirlpool Microwave Door Handle
3	WP8206528 Whirlpool Microwave Door Glass
4	Control Panel
5	Outer Door Frame (Stainless Steel)
5	Outer Door Frame (Biscuit)
5	Outer Door Frame (Black)
5	Outer Door Frame (White)
6	LCD Frame
7	Board, User (Interface)
8	LCD Module
9	Cntrl Panel Plate
10	Cntrl Panel Cover
11	Cable Cover, Door
13	WPW10243392 Whirlpool Dishwasher Nameplate
13	Logo (Biscuit)
13	WPW10243393 Whirlpool Dishwasher Nameplate
13	Logo (Stainless Steel)
14	W10815455 Whirlpool Screw
17	Spacer, Side (6) (Biscuit)
17	8206525 Whirlpool Microwave Spacer
17	Spacer, Side (6) (White)
17	Spacer, Side (6) (Black)
19	Spacer, Bottom (2)
20	8206179 Whirlpool Microwave Screw
21	COVER, CHOKE
22	Door Plate Assy
23	W10565483 Whirlpool Microwave Screw
24	Dr Innr Frm Assy
25	CLIP,HINGE SCREW
26	DOOR, COMPLETE (WHITE)
26	DOOR, COMPLETE (BLACK)
26	DOOR, COMPLETE (STAINLESS)
26	DOOR, COMPLETE (BISCUIT)
